Electrical Connectors

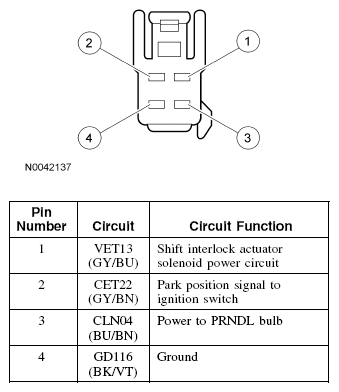

Courtesy of FORD MOTOR CO. CIRCUIT FUNCTION REFERENCE CHART
| Pin Number |
Circuit |
Circuit Function |
| 1 |
VET13 (GY/BU) |
Shift interlock actuator solenoid power circuit |
| 2 |
CET22 (GY/BN) |
Park position signal to ignition switch |
| 3 |
CLN (BU/BN) |
Power to PRNDL bulb |
| 4 |
GD 116 (BK/VT) |
Ground |
