Selector Lever Cable Adjustment

6-speed transaxle

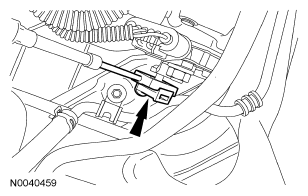

Disconnect the selector lever cable end from the manual lever.

Fig 1: Locating Selector Lever Cable End
Courtesy of FORD MOTOR CO.
Place the manual control lever in DRIVE.
1. Place the manual control lever in PARK.
2. Move the manual control lever counterclockwise 3 detents to the DRIVE position.

  Fig 2: Placing Manual Control Lever In Drive
  Courtesy of FORD MOTOR CO.

FNR5 transaxle

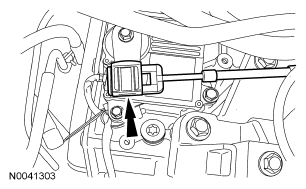

Disconnect the selector lever cable end from the manual lever.

Fig 3: Locating Selector Lever Cable End
Courtesy of FORD MOTOR CO.

NOTE: Transaxle shown removed for clarity.

All vehicles

Place the gear selector lever in DRIVE.

Fig 5: Locating Gear Selector Lever
Courtesy of FORD MOTOR CO.

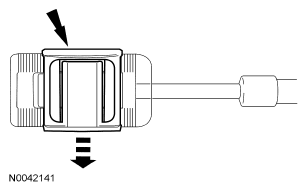

Unlock the adjuster by sliding the locking tab over.

Fig 6: Sliding Locking Tab Over
Courtesy of FORD MOTOR CO.

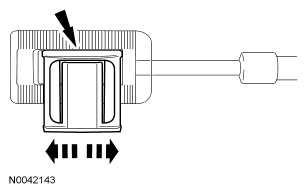

Slide the cable end forward or backward to align it with the manual lever.

Fig 7: Sliding Cable End
Courtesy of FORD MOTOR CO.

NOTE: FNR5 selector lever cable end shown, 6 speed transaxle similar.

Fig 8: Locating FNR5 Selector Lever Cable

Courtesy of FORD MOTOR CO.

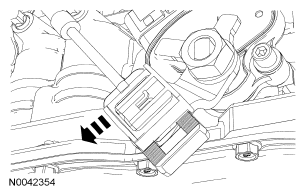

With the adjuster locking tab released connect the selector lever cable end to the manual lever.

NOTE: FNR5 selector lever cable end shown, 6 speed transaxle similar.

Fig 9: Releasing Tab Back To Lock Adjuster

Courtesy of FORD MOTOR CO.

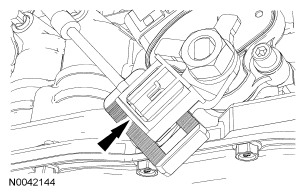

Slide the release tab back to lock the adjuster.
Verify that the vehicle starts in PARK and NEUTRAL only and that the reverse lamps illuminate in REVERSE.
