Selector Lever Cable: Notes

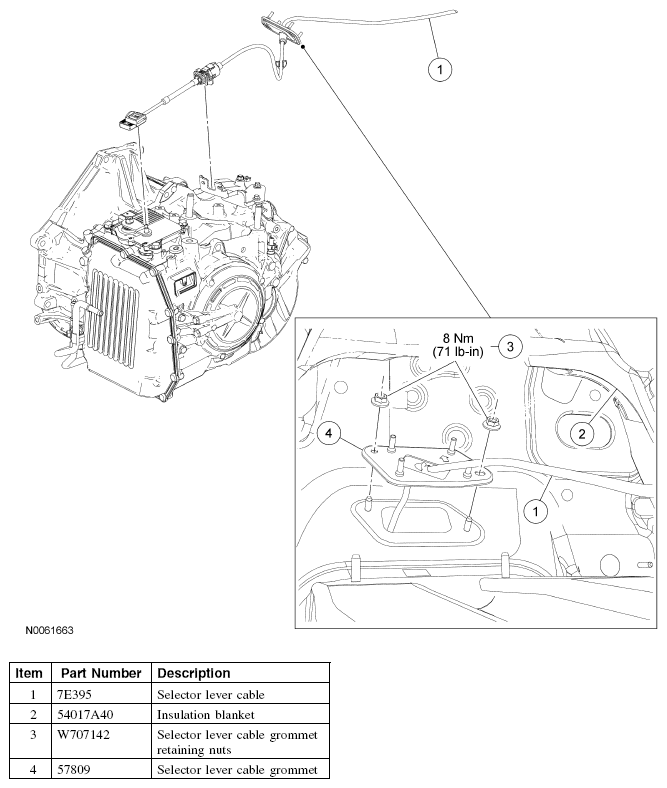

Fig 1: Identifying Selector Lever Cable - 6-Speed Transaxle Components
G04682007Courtesy of FORD MOTOR CO.

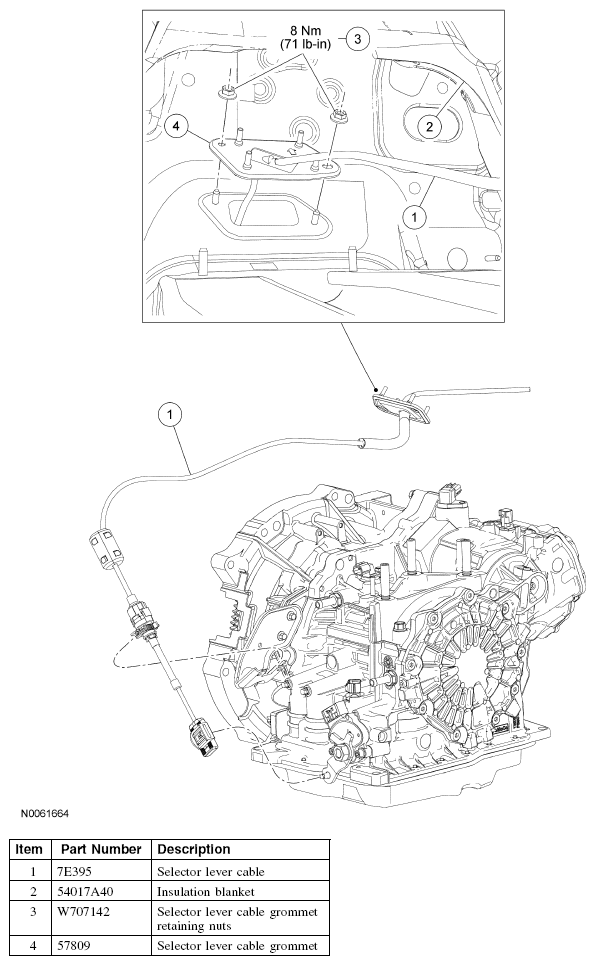

Fig 2: Identifying Selector Lever Cable - FNR5 Transaxle Components
G04682008Courtesy of FORD MOTOR CO.
