Selector Lever: Installation

Install the selector lever and the 4 nuts.
- Tighten to 12 Nm (9 lb-ft).

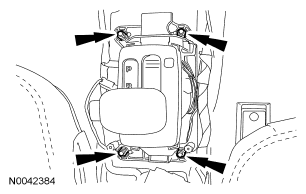

  Fig 1: Locating Nuts
  Courtesy of FORD MOTOR CO.
Connect the electrical connector.

Fig 2: Locating Electrical Connector
Courtesy of FORD MOTOR CO.

NOTE: When installing the selector lever cable, make sure that the selector lever cable locking tabs are locked in place and the cable end is snapped onto the ball stud. Press the selector lever cable into the bracket and listen for the cable to click in place. Pull back on the selector lever cable to make sure that it is locked into the bracket. Also make sure that the selector lever cable end is correctly installed onto the ball stud. Pull back on the selector lever cable end to make sure that the cable end is correctly installed.

Fig 3: Locating Selector Lever Cable Locking Tabs

Courtesy of FORD MOTOR CO.

Install the selector lever cable in the selector lever housing.
Connect the selector lever cable end to the selector lever.

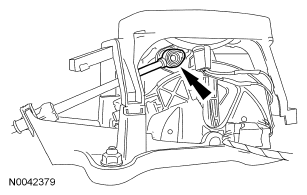

Fig 4: Locating Selector Lever Cable End
Courtesy of FORD MOTOR CO.
Install the center console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Adjust the selector lever cable, refer to SELECTOR LEVER CABLE ADJUSTMENT .
