Selector Lever: Removal

  1. Remove the center console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  2. Disconnect the selector lever cable end from the selector lever.

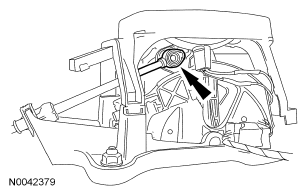

    Fig 1: Locating Selector Lever Cable End
    G04682024Courtesy of FORD MOTOR CO.
  3. Release the tab on the selector lever cable and remove it from the selector lever housing.
    Fig 2: Locating Selector Lever Cable Locking Tabs
    G04682025Courtesy of FORD MOTOR CO.
  4. Disconnect the electrical connector.
    Fig 3: Locating Electrical Connector
    G04682026Courtesy of FORD MOTOR CO.
  5. Remove the 4 nuts and remove the selector lever.

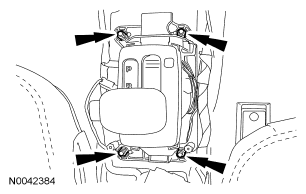

    Fig 4: Locating Nuts
    G04682027Courtesy of FORD MOTOR CO.
