Piston Pin to Bore Diameter

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Cover the end of the pin bore with a hand or shop rag when removing the retainer ring, since it has a tendency to spring out. Wear eye protection. Failure to follow instructions may result in personal injury.

NOTE: Piston and piston pins are a matched set and should not be interchanged.

Measure the piston pin bore diameter in 2 directions on each side. Verify the diameter is within specification.
- If out of specification, install new components as necessary. Refer to ENGINE for the procedure.

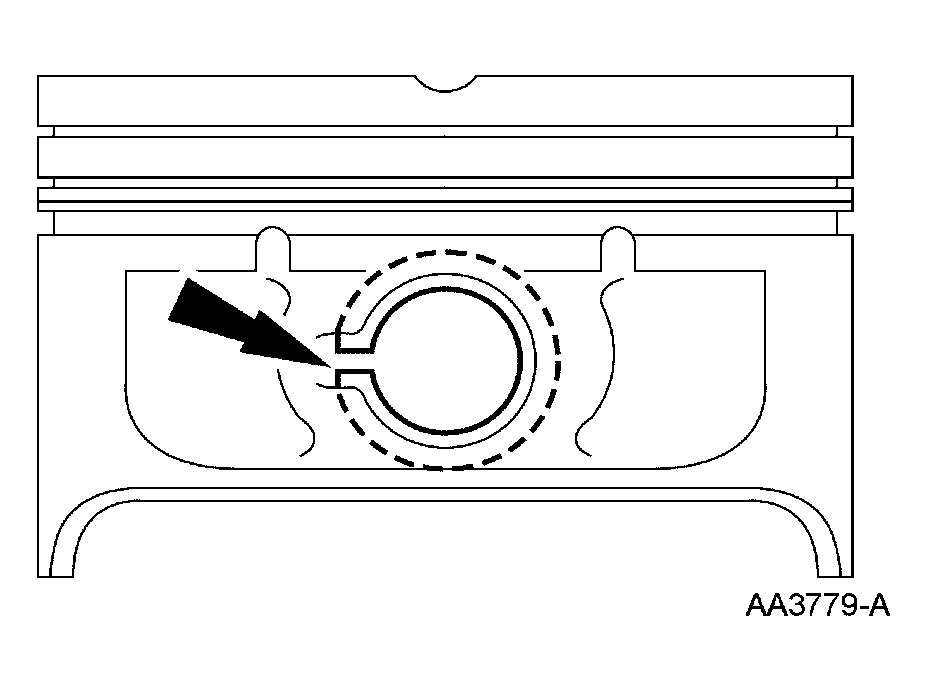

  Fig 1: Identifying Piston Pin Retainer Ring
  Courtesy of FORD MOTOR CO.

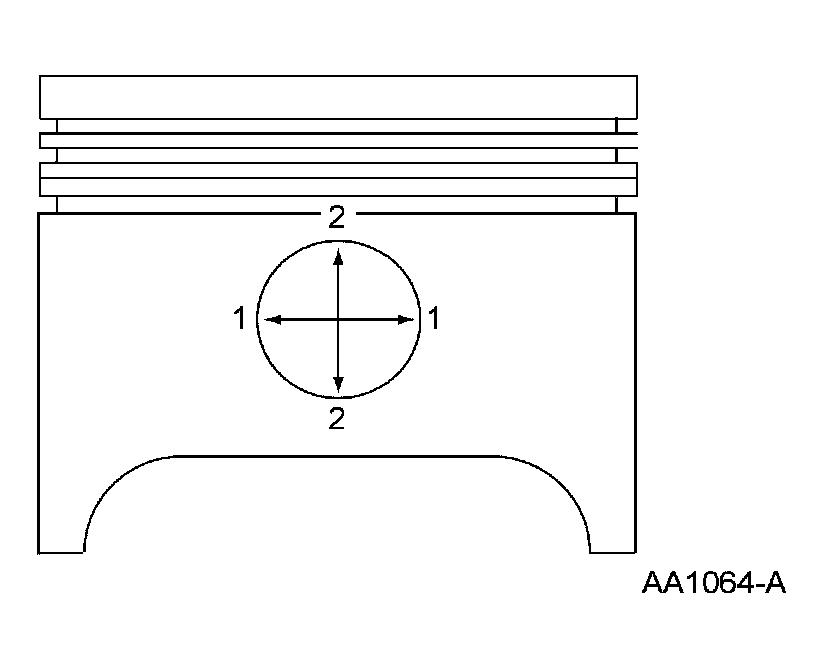

  Fig 2: Identifying Directions For Measuring Piston Pin Bore Diameter
  Courtesy of FORD MOTOR CO.
