Keyless Entry Key-Pad: Service and Repair

REMOTE KEYLESS ENTRY KEYPAD

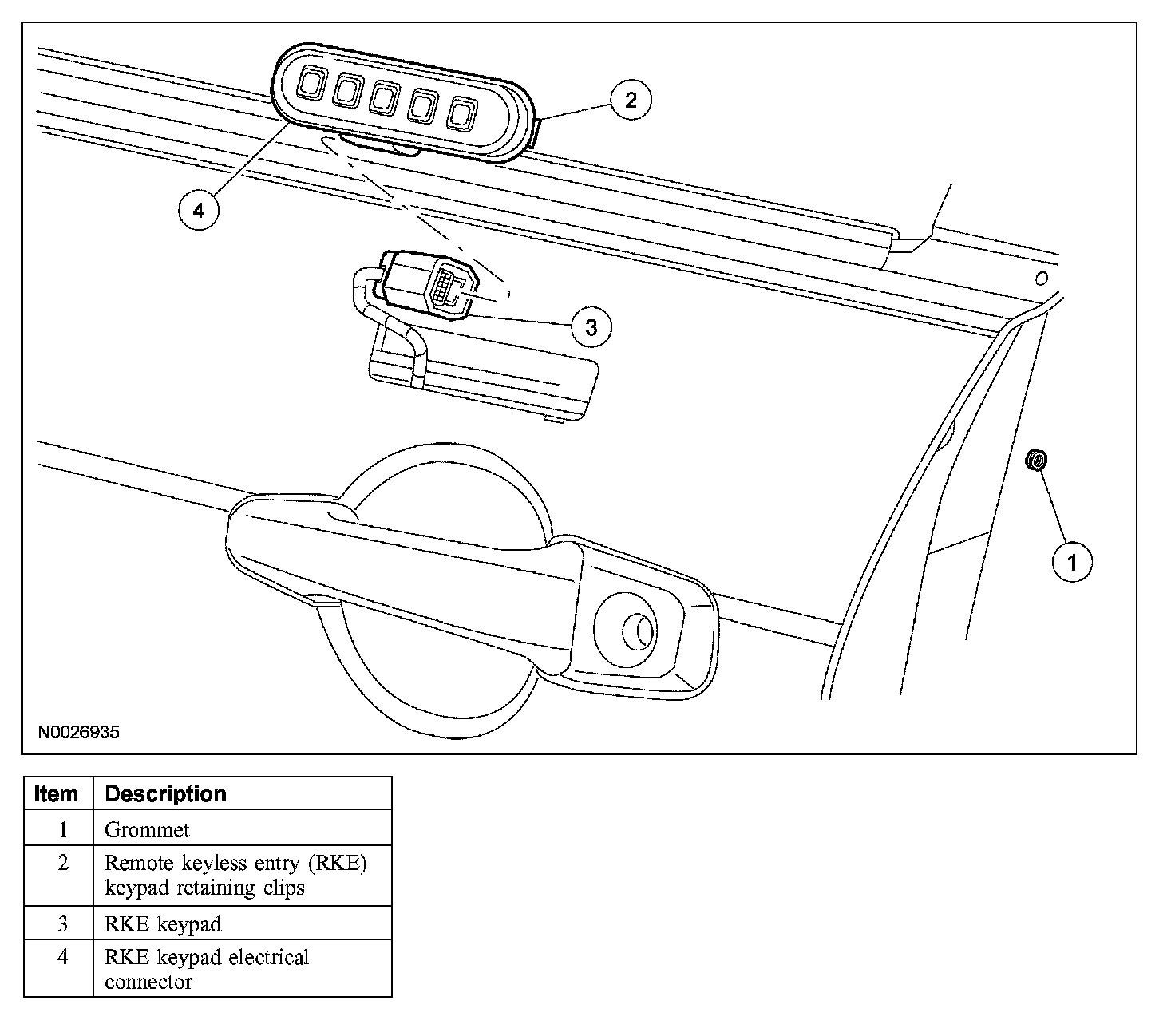

Removal and Installation
1. Remove the grommet.
2. Using a suitable tool, release the rear RKE keypad retaining clip and position the RKE keypad aside.
3. Remove the RKE keypad.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
