Wheel Speed Sensor - Front: Notes

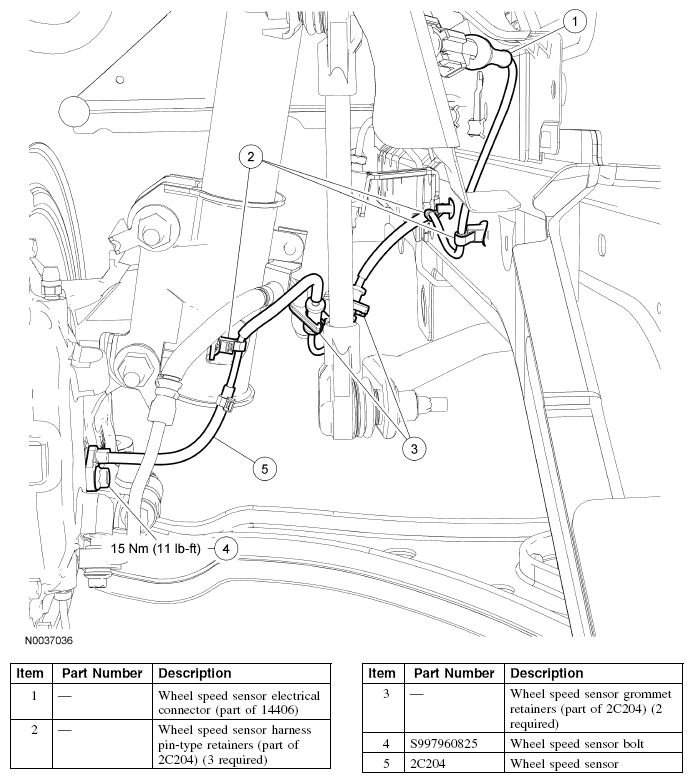

Fig 1: Wheel Speed Sensor - Front Replacement Components - With Torque Specifications

G04694526
