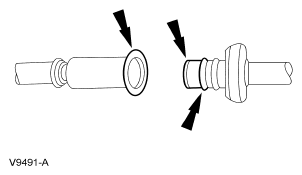

Spring Lock Couplings: Connect
NOTE:
Inspect and clean both the coupling ends. Lubricate the O-ring seals with clean engine oil.
- Connect the fuel tube to the spring lock coupling.
- Pull on the spring lock coupling to make sure it is fully engaged.
- Install the safety clip.
