Camshaft Lobe Lift
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL SPECIFICATIONS

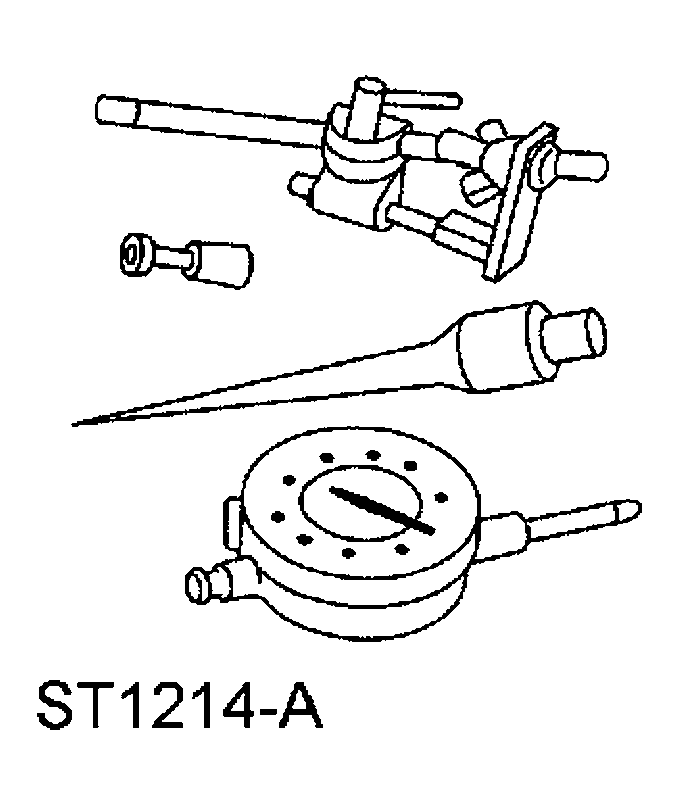

| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) or equivalent |
- Use a Dial Indicator Gauge with Holding Fixture to measure camshaft intake/exhaust lobe lift.
- Rotate the camshaft and subtract the lowest indicator reading from the highest indicator reading to figure the camshaft lobe lift.
