Safety Belt Buckle - Front: Notes

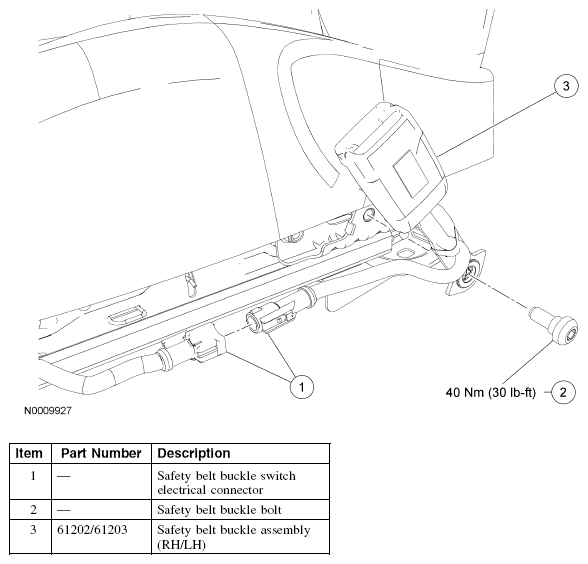

Fig 1: Front Safety Belt Buckle Replacement Components - With Torque Specifications

G04698186
