Direct Clutch Drum Assembly: Notes

SPECIAL TOOL(S)

G04696447
 Compressor, Clutch Spring
307-015 (T65L-77515-A)
G04696448
 Protector, Piston Seal
307-049 (T74P-77404-A)
MATERIAL

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM MERCON® V

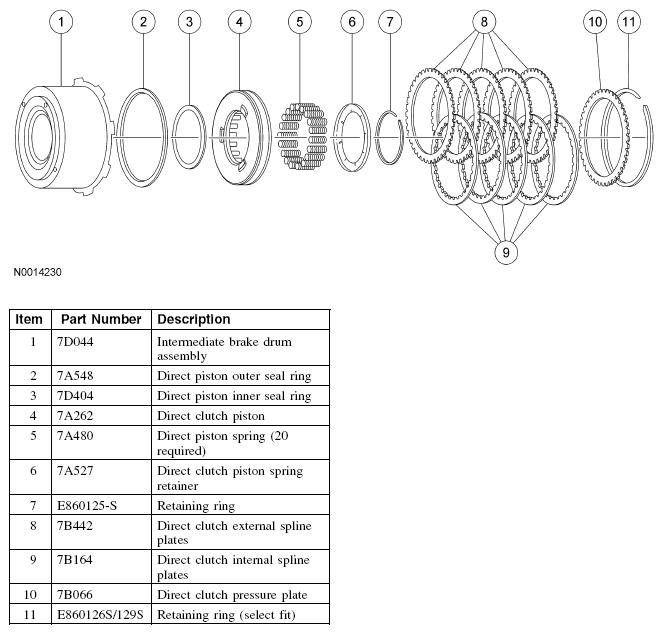

Fig 1: Identifying Direct Clutch Drum Assembly Components
G04696449
