Main Control Valve Body: Disassembly

NOTE: The valve body separator plate has a bonded gasket. Do not reuse. Discard the plate.
  1. Remove and discard the valve body separator plate.

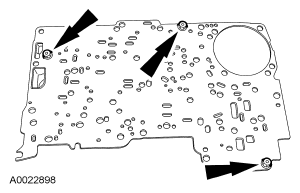

    Fig 1: Identifying Valve Body Separator Plate
    G04696386
  2. Remove the check balls.

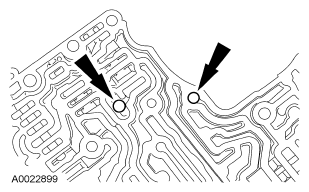

    Fig 2: Locating Check Balls
    G04696387
    NOTE: Refer to the disassembled view.
  3. Disassemble the main control valve body only if cleaning is required.
