Main Control Valve Body: Notes

SPECIAL TOOL(S)

G04696383
 Aligner, Valve Body (2 required)
307-334 (T95L-70010-C)

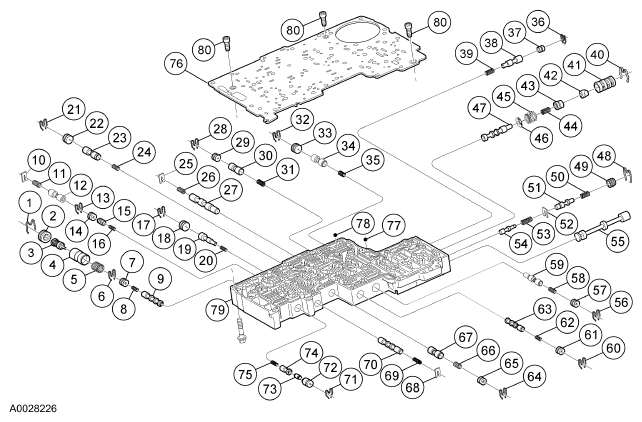

Fig 1: Exploded View Of Main Control Valve Body Components
G04696384

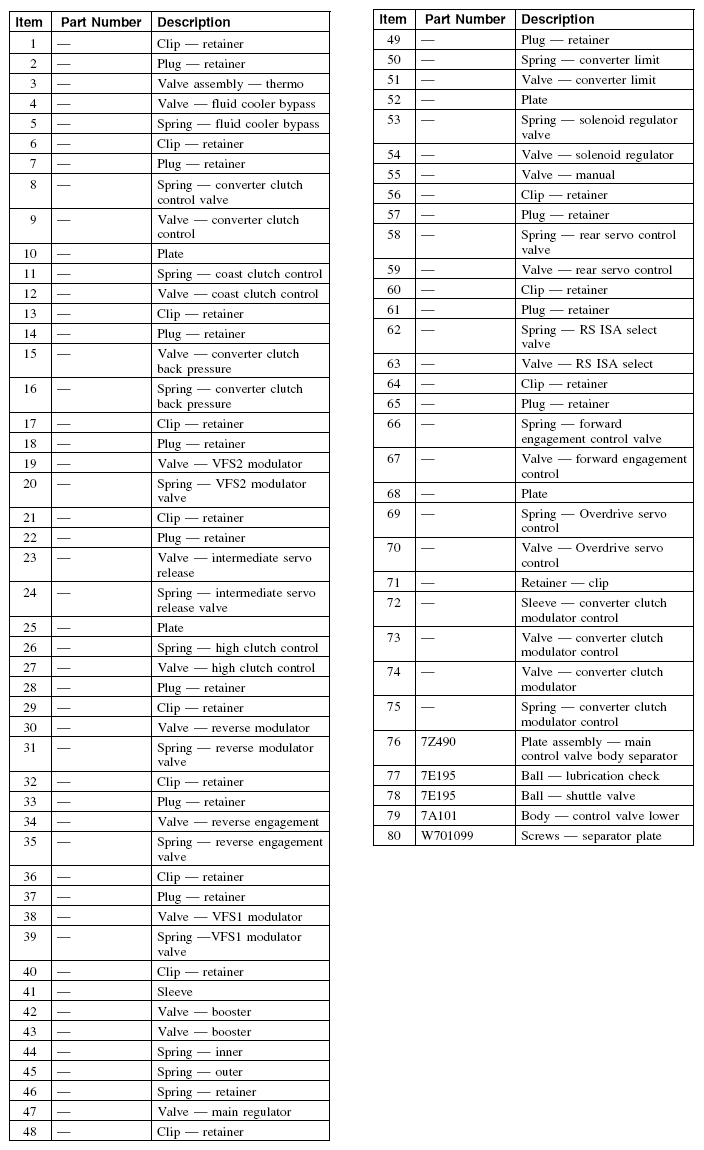

Fig 2: Main Control Valve Body Components Description Chart
G04696385
