Overdrive Planetary and One-Way Clutch Assembly: Notes

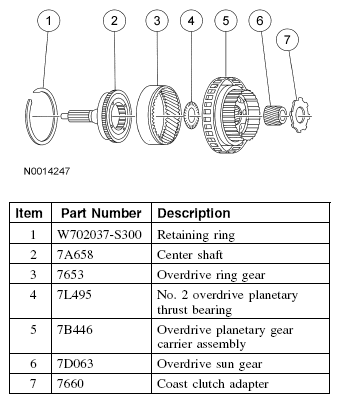

Fig 1: Identifying Overdrive Planetary And One-Way Clutch Assembly Components

G04696486
