Reverse Servo Assembly: Assembly

NOTE: Try not to roll the seal onto the housing when installing the seal, or damage to the seal can occur.

Lubricate and install a new reverse servo piston seal.

Fig 1: Locating Reverse Servo Piston Seal
Lubricate and install the reverse servo piston and seal assembly.

Fig 2: Locating Reverse Servo Piston
Install the reverse servo spring.

Fig 3: Locating Reverse Servo Spring

WARNING: The upper and lower servo covers are under spring tension. Use care when assembling the 2 halves. Failure to follow these instructions can result in personal injury.

CAUTION: The arrow on the servo plate must be aligned evenly between any 2 slots on the cover.
Install the reverse servo plate.

Fig 4: Locating Reverse Servo Plate

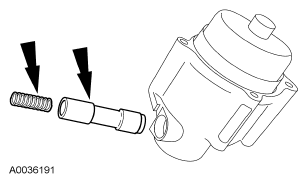

Install the reverse servo spring and check valve.

Fig 5: Locating Reverse Servo Spring
Install the control valve spring retainer.
- Tighten to 10 Nm (89 lb-in).

  Fig 6: Locating Control Valve Spring Retainer
