Digital Transmission Range (TR) Sensor: Installation

CAUTION: The digital TR sensor must fit flush against the boss on the case to prevent damage to the sensor.

Install the digital TR sensor and loosely install the screws.

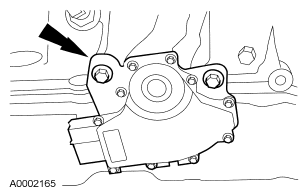

Fig 1: Locating Transmission Range Sensor

CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.

NOTE: The manual lever must be in the NEUTRAL position.
Using the special tool, align the digital TR sensor and tighten the screws in an alternating sequence.
- Tighten 8 Nm (71 lb-in).

  Fig 2: Identifying Special Tool On Digital TR Sensor
Connect the transmission shift cable to the manual control lever.

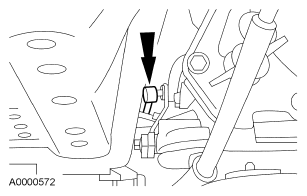

Fig 3: Locating Shift Cable Eyelet At Manual Control Lever
Connect the digital TR sensor connector.

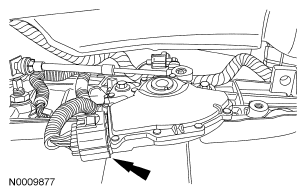

Fig 4: Locating Digital Transmission Range Sensor Connector
Install the transmission crossmember-to-floor pan screws.
- Tighten to 63 Nm (46 lb-ft).

  Fig 5: Locating Transmission Crossmember-To-Floor Pan Screws
Verify that the shift cable is adjusted correctly. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .
