Extension Housing Gasket: Notes

SPECIAL TOOL(S)

G04696216
 Installer, Drive Pinion Flange
205-479
G04696217
 Installer, Output Shaft Flange
307-404
G04696218
 Remover, Output Shaft Flange
307-523

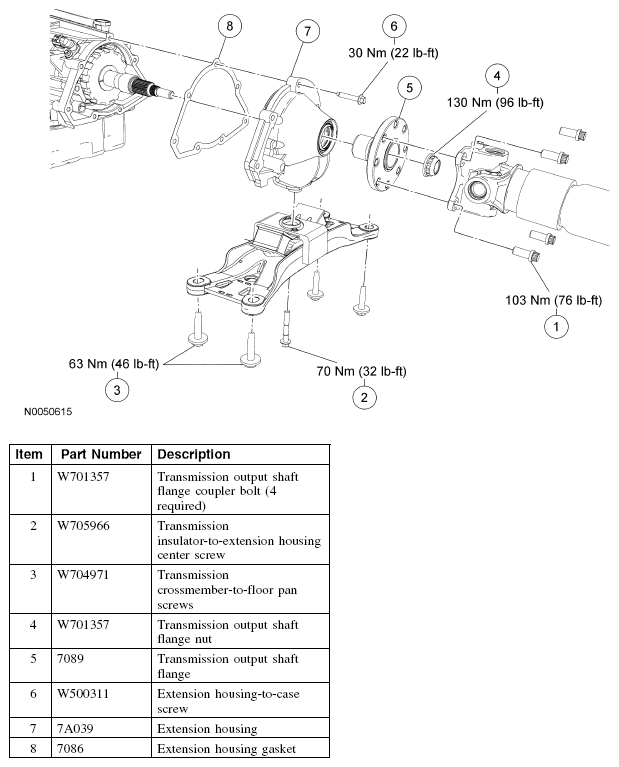

Fig 1: Identifying Extension Housing Gasket Components
G04696219
