Main Control Valve Body: Notes

SPECIAL TOOL(S)

G04696175
 Aligner, Valve Body (2 required)
307-334 (T95L-70010-C)
MATERIAL

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM MERCON® V

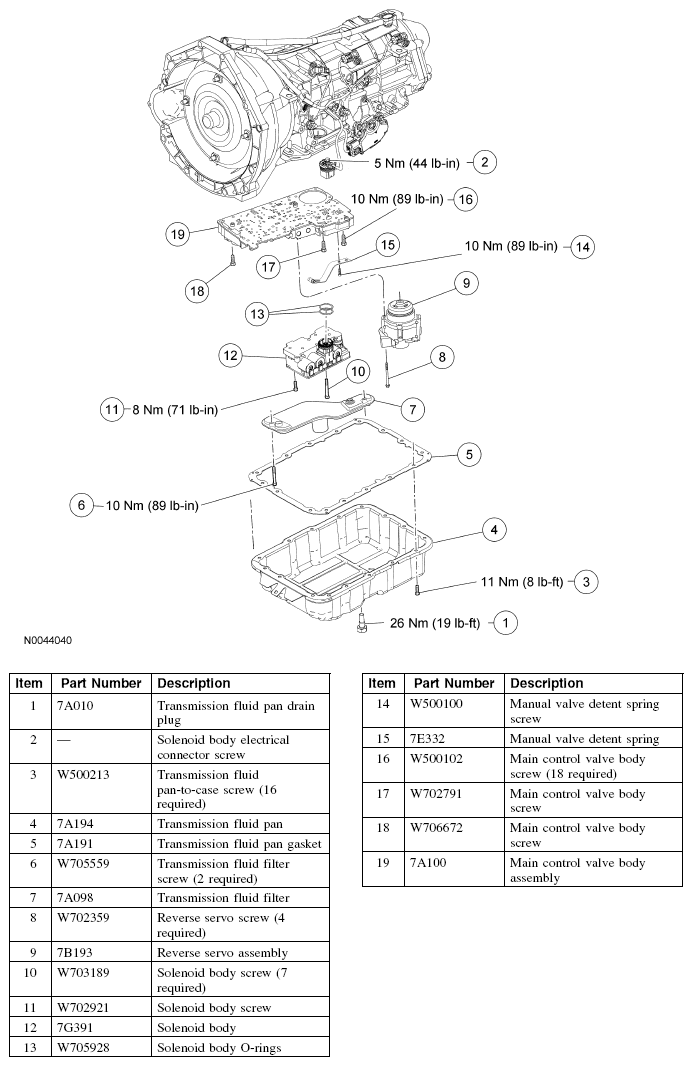

Fig 1: Identifying Transmission Components
G04696176
