Solenoid Body Assembly: Notes

MATERIAL

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM MERCON® V

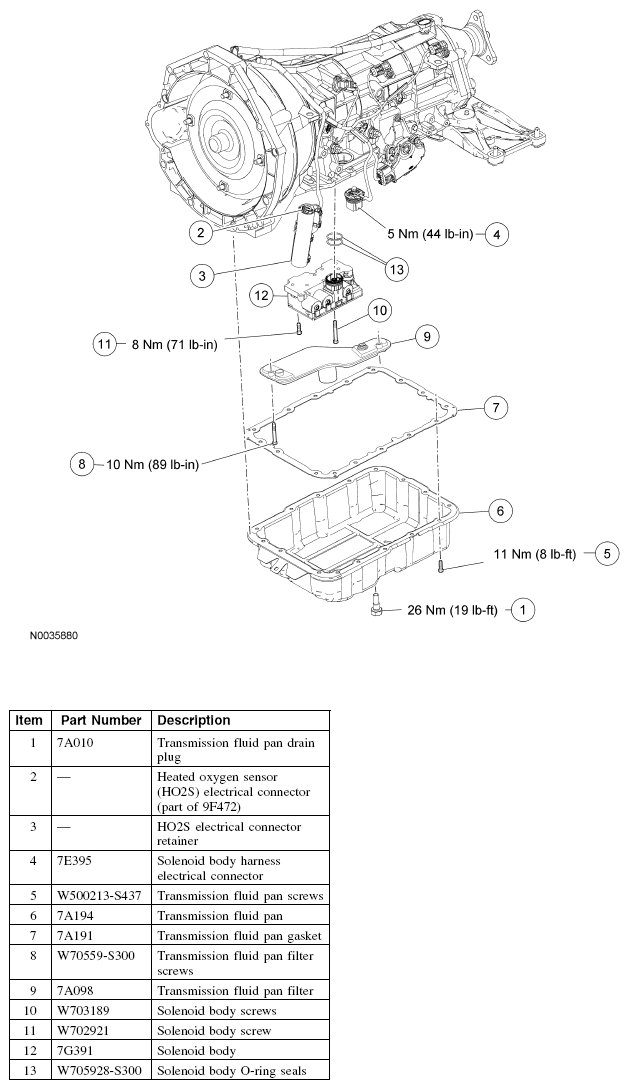

Fig 1: Identifying Solenoid Body Assembly Components
G04696234
