Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

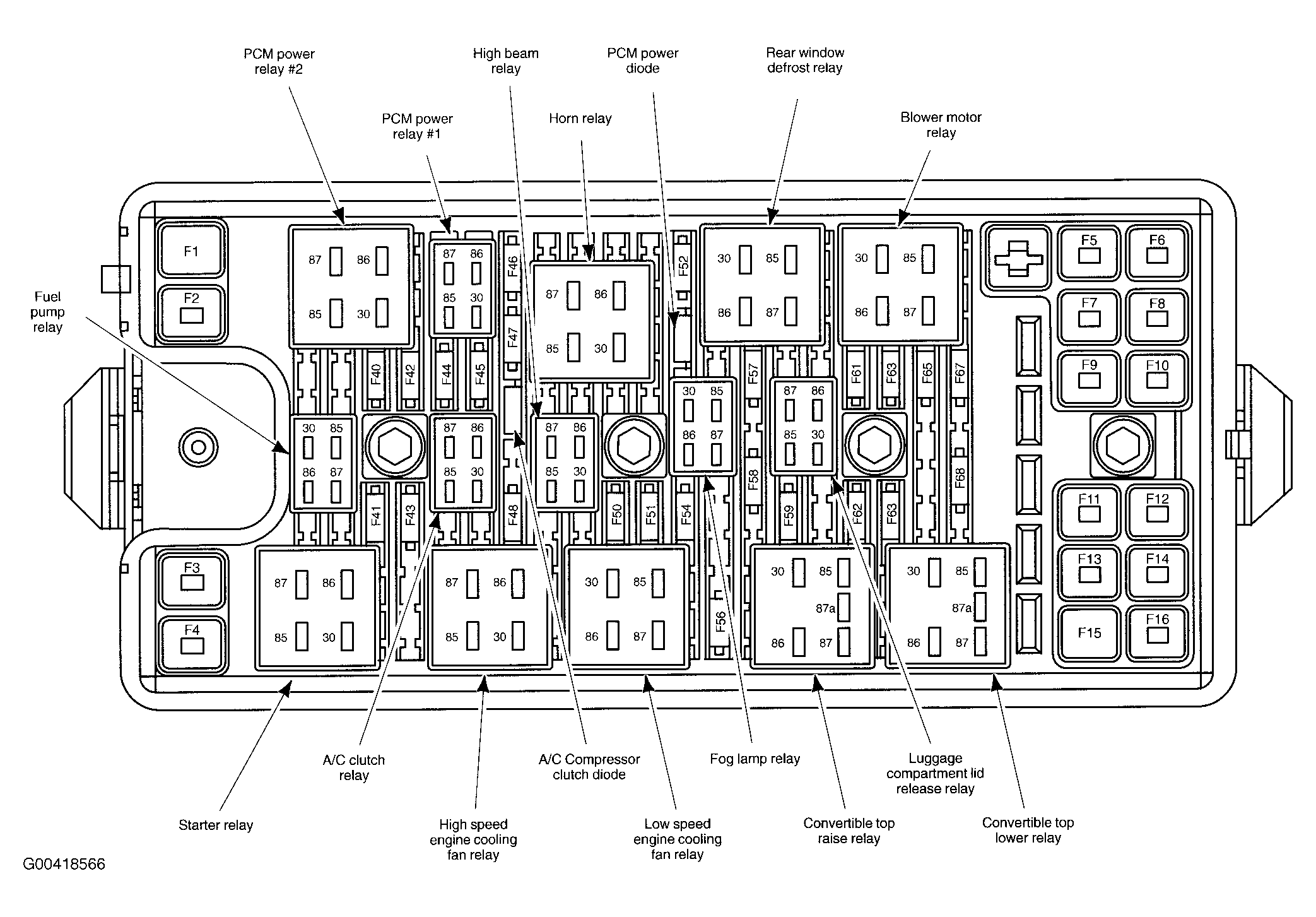

Fig 1: Bussed Electrical Center (BEC)

G00418566

Courtesy of FORD MOTOR CO.

Fig 2: Smart Junction Box (SJB)

G00360131

Courtesy of FORD MOTOR CO.

Fig 3: Auxiliary Relay Box 1

G00360132

Courtesy of FORD MOTOR CO.

Fig 4: Engine Compartment

G00418567

Courtesy of FORD MOTOR CO.

Fig 5: Engine Compartment

G00418568

Courtesy of FORD MOTOR CO.

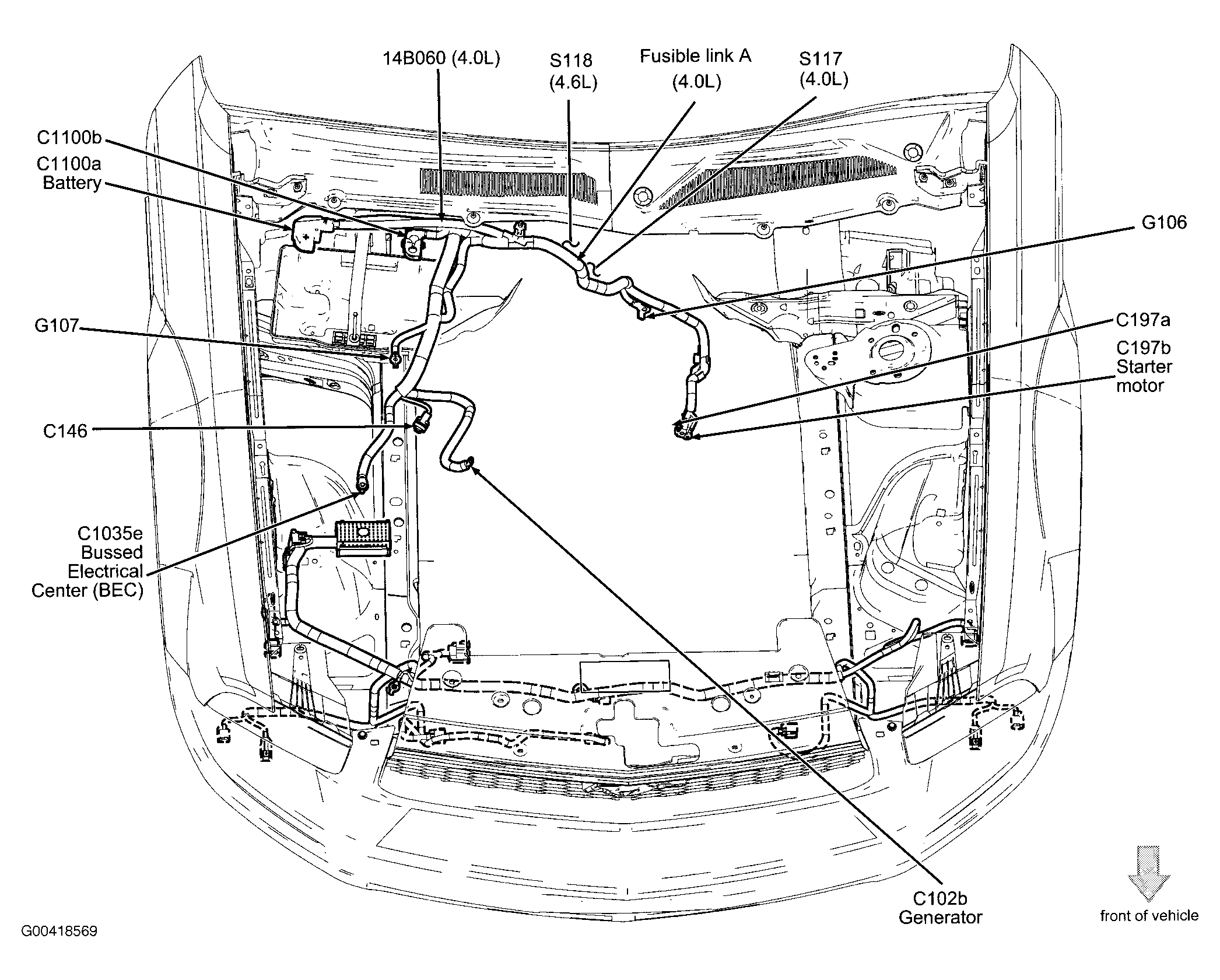

Fig 6: Engine Compartment

G00418569

Courtesy of FORD MOTOR CO.

Fig 7: Left Front Of Engine (4.0L)

G00418570

Courtesy of FORD MOTOR CO.

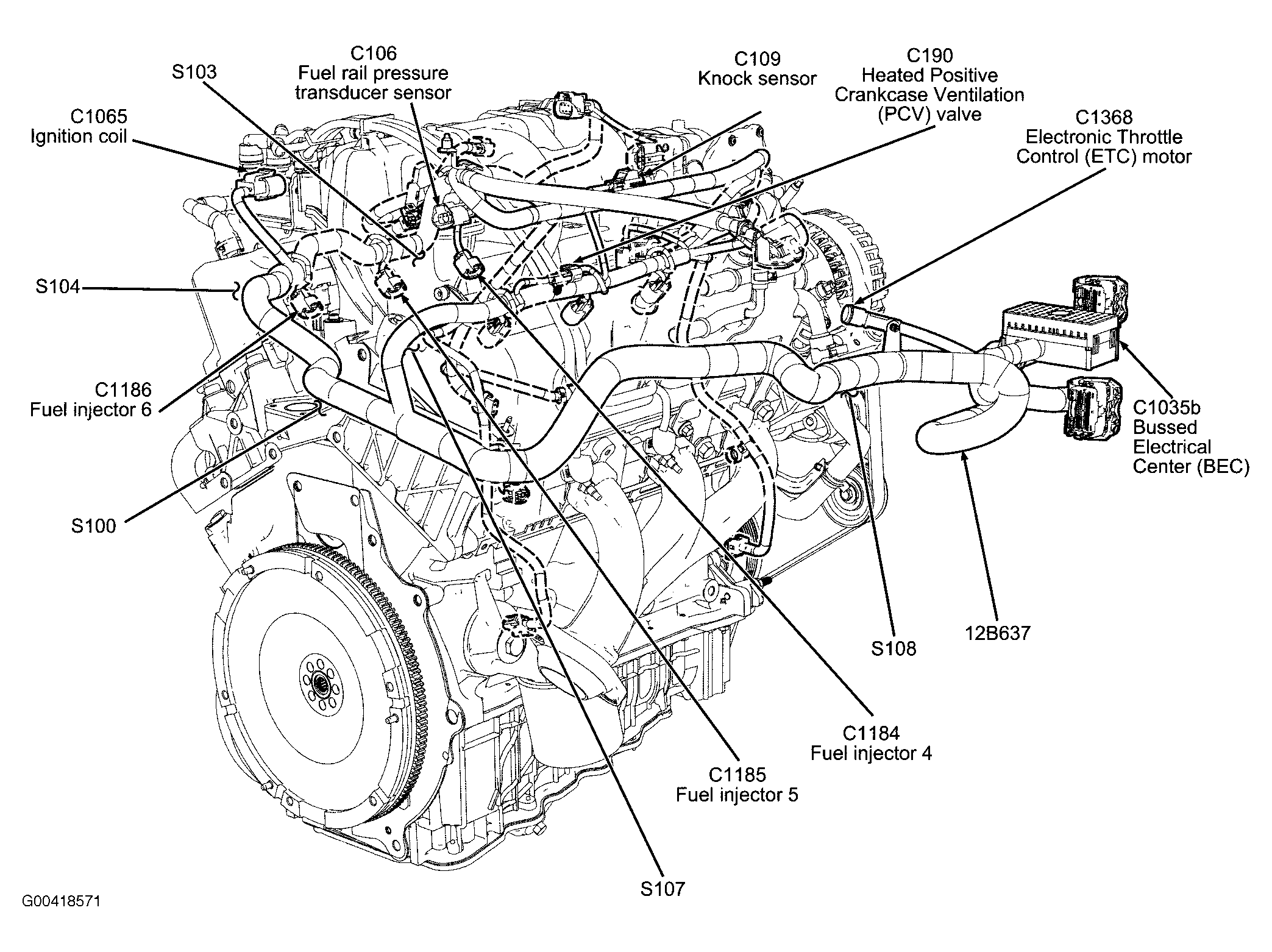

Fig 8: Right Rear Of Engine (4.0L)

G00418571

Courtesy of FORD MOTOR CO.

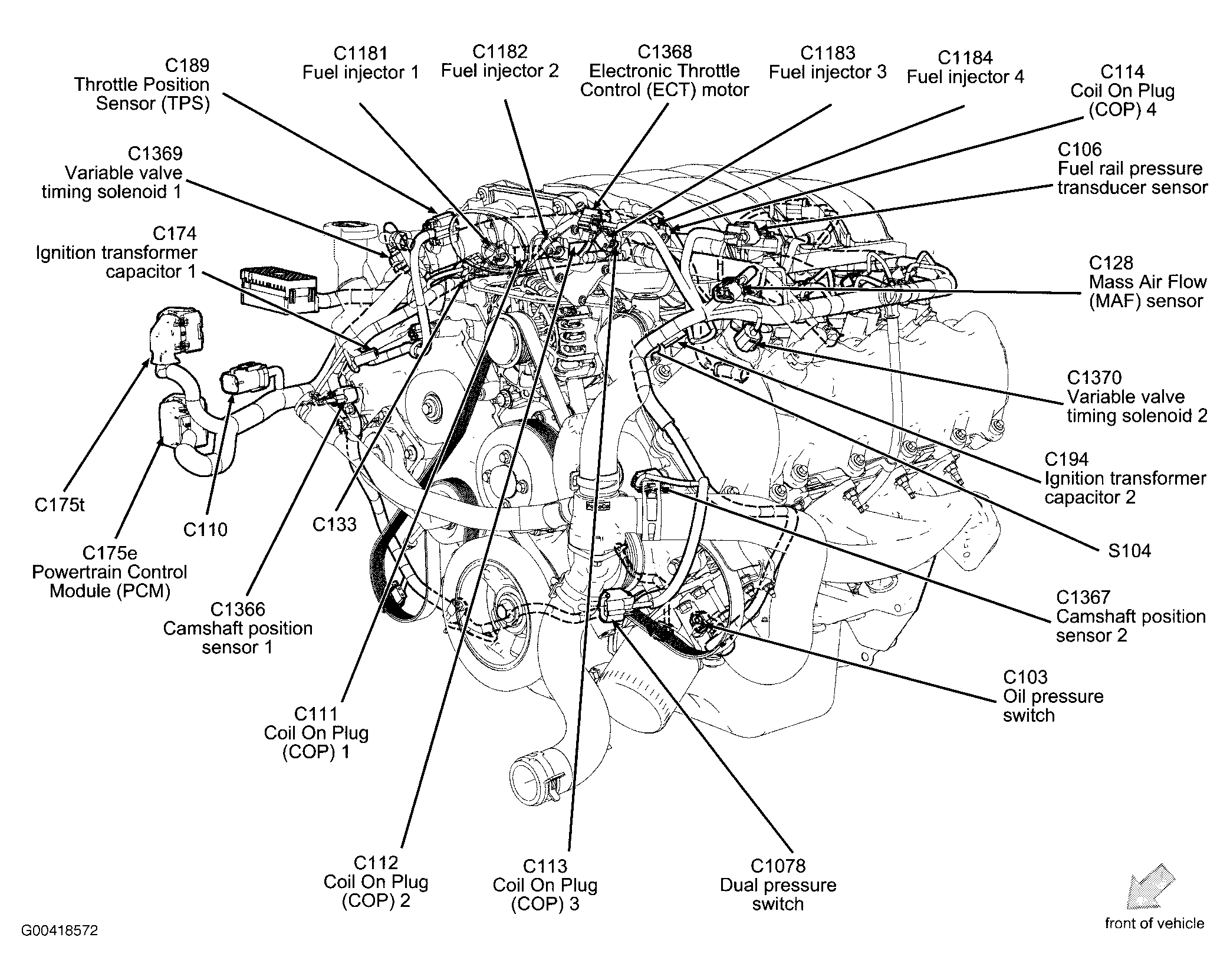

Fig 9: Left Front Of Engine (4.6L)

G00418572

Courtesy of FORD MOTOR CO.

Fig 10: Right Rear Of Engine (4.6L)

G00418573

Courtesy of FORD MOTOR CO.

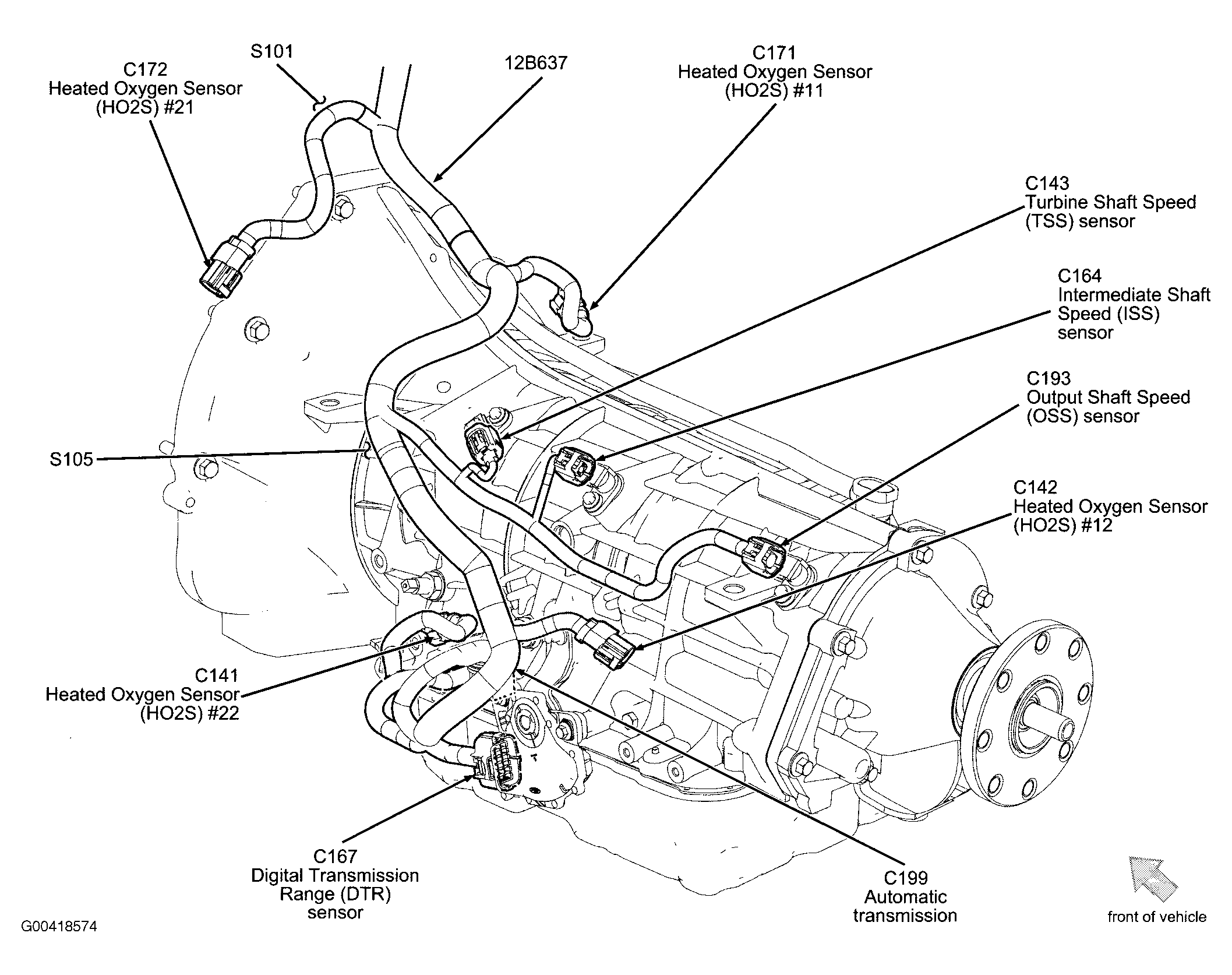

Fig 11: Automatic Transmission

G00418574

Courtesy of FORD MOTOR CO.

Fig 12: Manual Transmission (4.0L)

G00418575

Courtesy of FORD MOTOR CO.

Fig 13: Manual Transmission (4.6L)

G00418576

Courtesy of FORD MOTOR CO.

Fig 14: Dash Panel

G00418577

Courtesy of FORD MOTOR CO.

Fig 15: Rear Of Dash Panel

G00418578

Courtesy of FORD MOTOR CO.

Fig 16: Steering Column

G00360145

Courtesy of FORD MOTOR CO.

Fig 17: Steering Wheel

G00360146

Courtesy of FORD MOTOR CO.

Fig 18: Center Console

G00360147

Courtesy of FORD MOTOR CO.

Fig 19: Left "A" Pillar

G00418579

Courtesy of FORD MOTOR CO.

Fig 20: Right "A" Pillar

G00418580

Courtesy of FORD MOTOR CO.

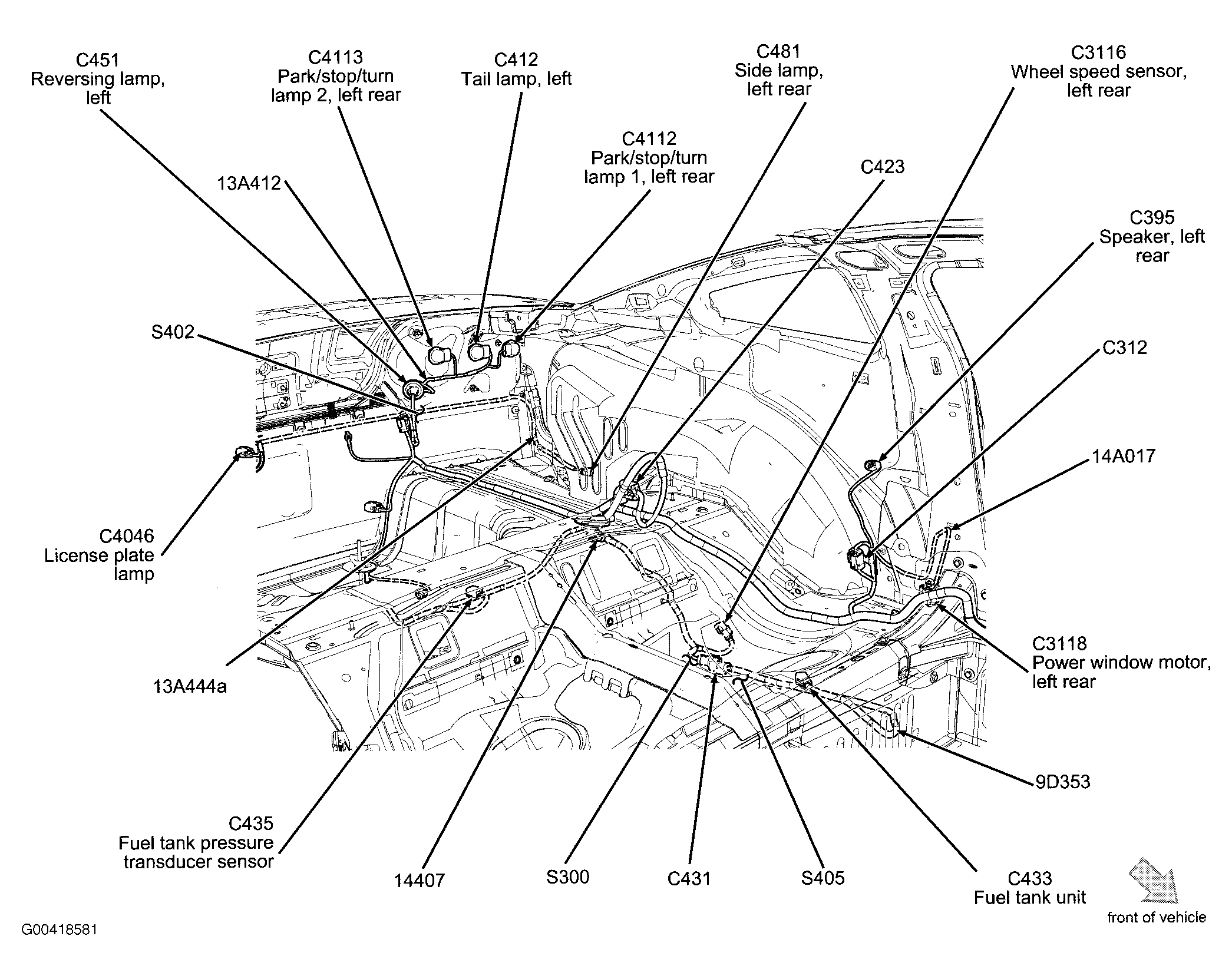

Fig 21: Left Rear Of Vehicle

G00418581

Courtesy of FORD MOTOR CO.

Fig 22: Left Rear Of Vehicle

G00418589

Courtesy of FORD MOTOR CO.

Fig 23: Right Rear Of Vehicle

G00418582

Courtesy of FORD MOTOR CO.

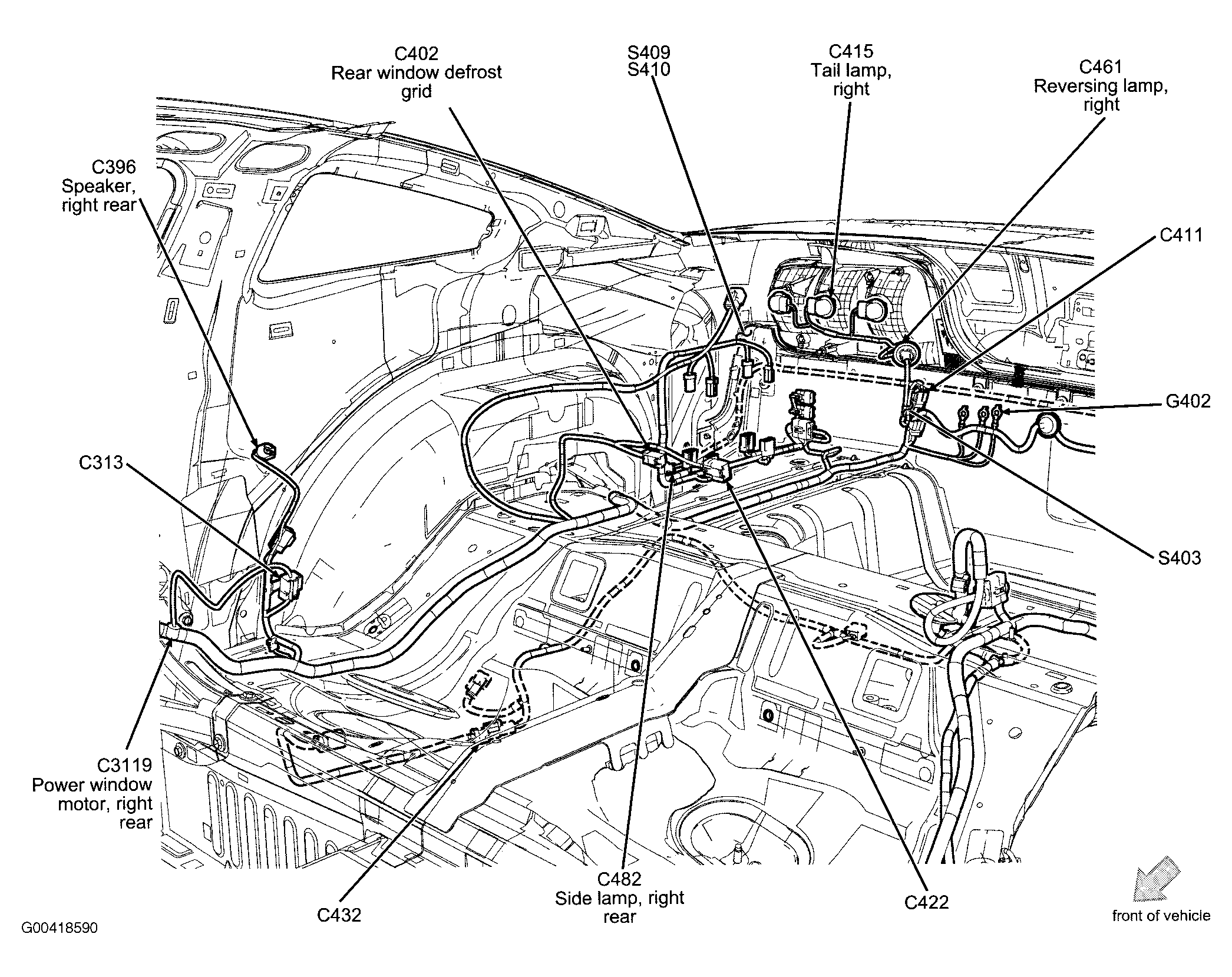

Fig 24: Right Rear Of Vehicle

G00418590

Courtesy of FORD MOTOR CO.

Fig 25: Right Rear Of Vehicle (Coupe)

G00418591

Courtesy of FORD MOTOR CO.

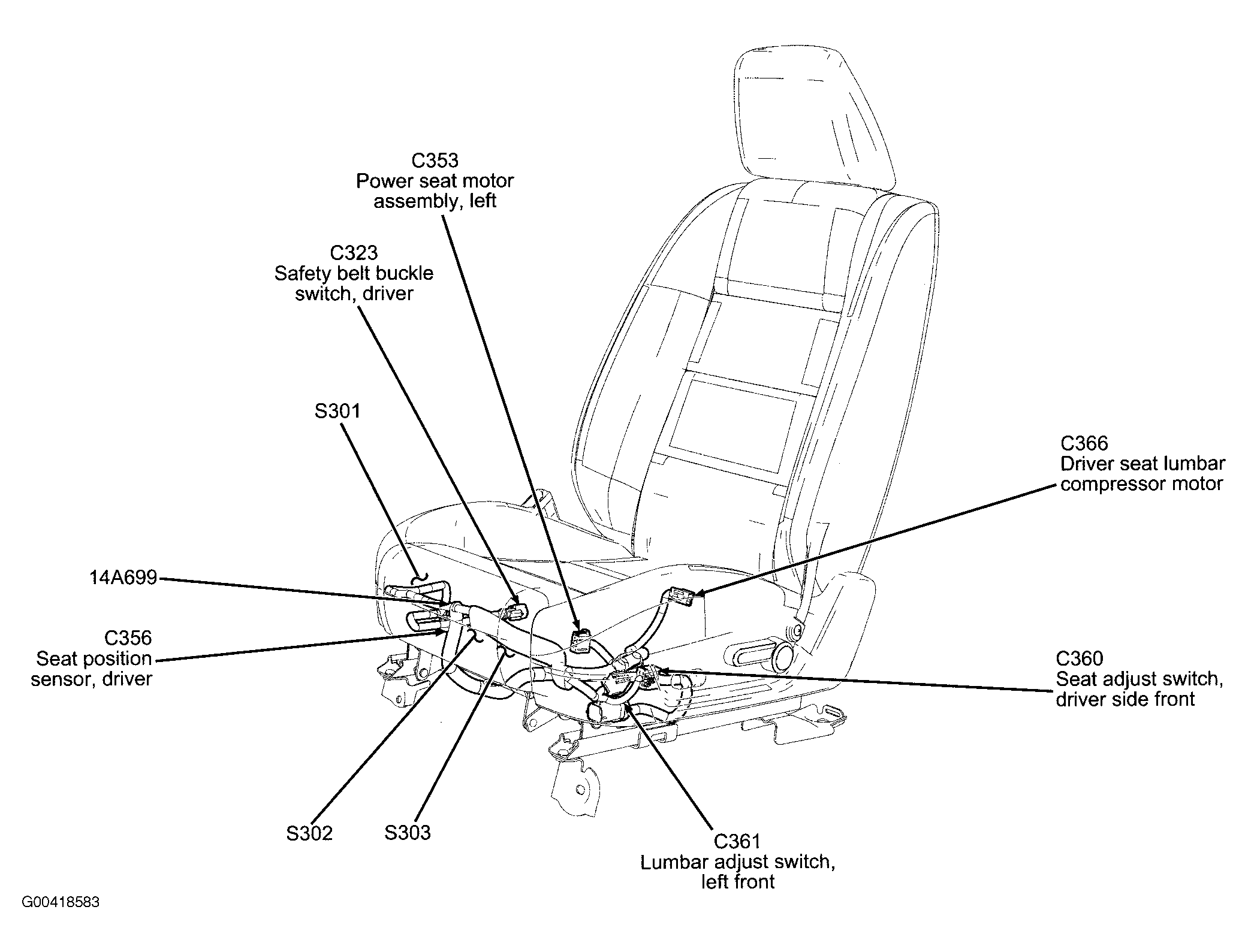

Fig 26: Driver's Seat

G00418583

Courtesy of FORD MOTOR CO.

Fig 27: Passenger's Seat

G00418584

Courtesy of FORD MOTOR CO.

Fig 28: Driver's Door

G00418585

Courtesy of FORD MOTOR CO.

Fig 29: Passenger's Door

G00418586

Courtesy of FORD MOTOR CO.

Fig 30: Trunk Lid

G00418587

Courtesy of FORD MOTOR CO.

Fig 31: Evaporator Assembly

G00418588

Courtesy of FORD MOTOR CO.
