Fuel Rail and Fuel Injector - Exploded View

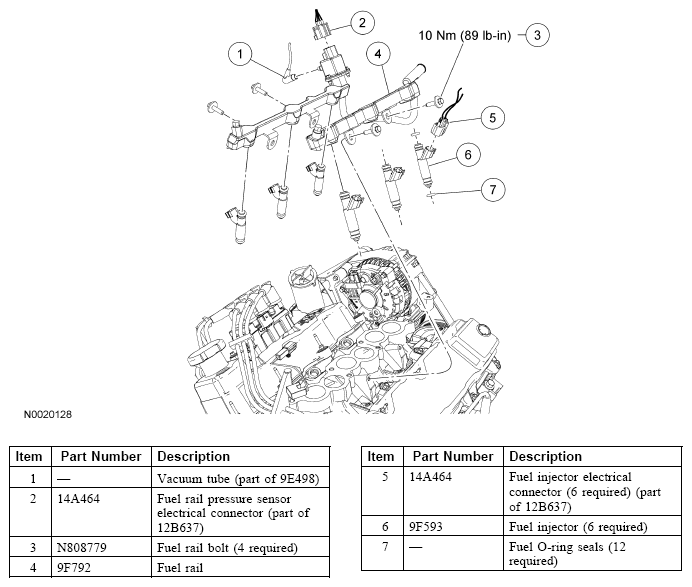

Fig 1: Exploded View Of Fuel Rail And Fuel Injector With Torque Specifications
G04709590Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate instructions in this article.
