Safety Belt Retractor - Front: Notes

NOTE: RH side shown, LH side similar.

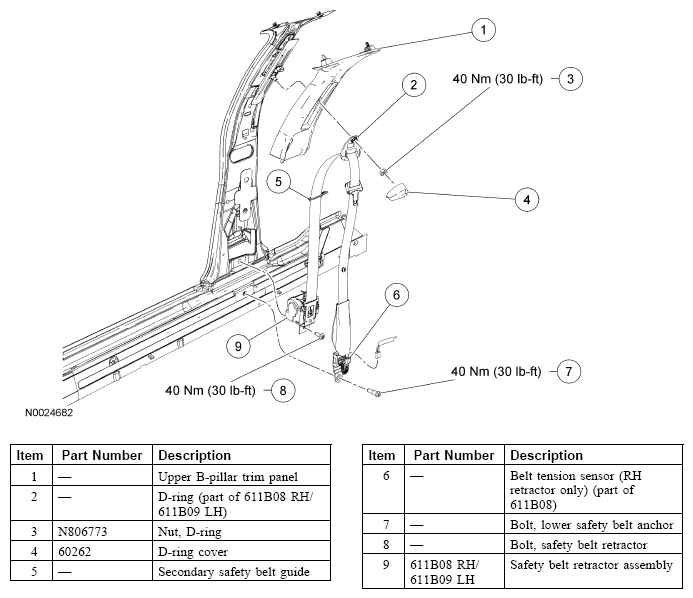

Fig 1: Safety Belt Retractor Replacement Components -- Front With Torque Specifications
G04711815Courtesy of FORD MOTOR CO.
