Engine Ignition Components - Exploded View

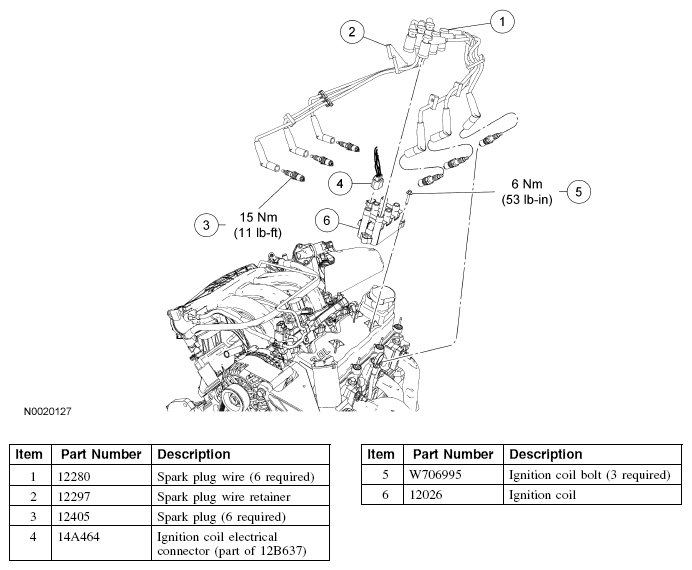

Fig 1: Engine Ignition Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

For additional information, refer to the appropriate instructions in this article.
