Powertrain Control Module (PCM): Removal

NOTE: Any PCM replacement will require that ALL customer keys are available to be programmed at the time of installation. PCM replacement DOES NOT require new keys.

Retrieve the module configuration. Carry out the module configuration retrieval steps of the Programmable Module Installation procedure. For additional information, refer to MODULE CONFIGURATION .
Park the windshield wiper arms in the highest position on the windshield.
Remove the 3 retaining clips (2 shown) and the RH cowl panel grille.

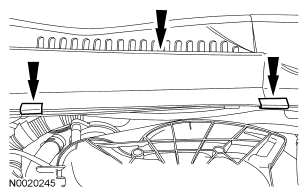

Fig 1: Locating 3 Retaining Clips (2 Shown) And RH Cowl Panel Grille
Courtesy of FORD MOTOR CO.
Remove the clip on the RH cowl extension panel.

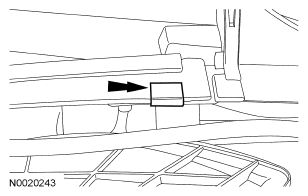

Fig 2: Locating Clip On The RH Cowl Extension Panel
Courtesy of FORD MOTOR CO.
Remove the 32 screws and the RH cowl extension panel.
Disconnect the evaporative emission (EVAP) canister purge valve return tube at the intake manifold and position aside.

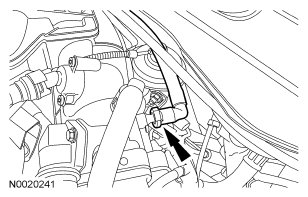

Fig 3: Locating Evaporative Emission Canister Purge Valve Return Tube
Courtesy of FORD MOTOR CO.
Loosen the bolt disconnect the PCM electrical connector.
- Remove the gasket.
Remove the 2 bolts and the PCM.
