Steering Column - Console Shift: Disassembly

WARNING: To reduce the risk of serious personal injury, read and follow all warnings, notes and instructions in the steering column removal and installation procedure.

Remove the steering column. For additional information, refer to STEERING COLUMN in this article.
Remove the clockspring. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .

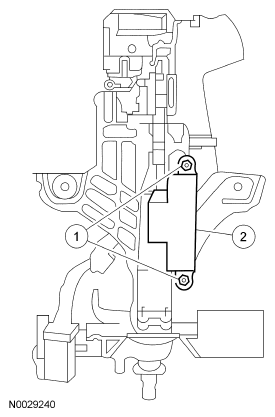

Remove the ignition switch.
1. Remove the 2 screws.
2. Remove the ignition switch.
Fig 1: Identifying Screws And Ignition Switch
Courtesy of FORD MOTOR CO.

CAUTION: Note the position of the steering column lock gear, bearing and retainer prior to removal.

Fig 2: Locating Bearing Retainer

G03919631

Courtesy of FORD MOTOR CO.

Remove the bearing retainer.
Remove the lock housing bearing.

Fig 3: Locating Lock Housing Bearing
Courtesy of FORD MOTOR CO.
Remove the lock gear.

Fig 4: Locating Lock Gear
Courtesy of FORD MOTOR CO.
Remove the sensor ring.
1. Remove the lower bearing spring.
2. Remove the sensor ring.
Fig 5: Identifying Lower Bearing Spring And Sensor Ring
Courtesy of FORD MOTOR CO.
Remove the lower bearing tolerance ring from the shaft.

Fig 6: Locating Bearing Tolerance Ring
Courtesy of FORD MOTOR CO.
Remove the 2 tilt pivot screws.

Fig 7: Locating Lock Cylinder Housing Pivot Screws
Courtesy of FORD MOTOR CO.

WARNING: Steering column position spring is under tension and can come out with great force. Failure to follow these instructions may result in personal injury.

Fig 8: Identifying Shop Fabricated Tool & Steering Column Position Spring

G04309597

Courtesy of FORD MOTOR CO.

Remove the lock cylinder housing and shaft assembly from the actuator housing.
1. Pry up on the lock actuator lever (LH) using a shop fabricated tool.
2. Remove the position spring.
Remove the turn indicator cancel cam.

Fig 9: Locating Turn Indicator Cancel Cam
Courtesy of FORD MOTOR CO.
Remove the snap ring.

Fig 10: Locating Snap Ring
Courtesy of FORD MOTOR CO.
Remove the upper bearing spring.

Fig 11: Locating Steering Column Bearing Spring
Courtesy of FORD MOTOR CO.
Remove the bearing sleeve.

Fig 12: Locating Steering Column Bearing Sleeve
Courtesy of FORD MOTOR CO.

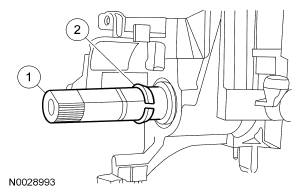

Remove the lower bearing tolerance ring.
1. Slide the steering column shaft in toward the lock cylinder housing.
2. Slide the steering column bearing tolerance ring from the steering column shaft and remove the shaft.
Fig 13: Identifying Steering Column Shaft And Steering Column Bearing Tolerance Ring
Courtesy of FORD MOTOR CO.
Using a punch, remove the lower bearing from the lock cylinder housing.

Fig 14: Removing Steering Column Bearing From Steering Column Lock Cylinder Housing
Courtesy of FORD MOTOR CO.
Use a punch to remove the bearing from the lock cylinder housing.

Fig 15: Removing Bearing From Lock Cylinder Housing Using Punch
Courtesy of FORD MOTOR CO.
Remove the lower bearing and sleeve.

Fig 16: Locating Lower Bearing
Courtesy of FORD MOTOR CO.
Remove the lower bearing retainer.
1. Remove the 3 bolts.
2. Remove the lower bearing retainer.
Fig 17: Identifying Bolts And Lower Bearing Retainer
Courtesy of FORD MOTOR CO.
Remove the upper lock lever actuator and the lower lock lever actuator.

Fig 18: Locating Steering Column Upper & Lower Lock Actuators
Courtesy of FORD MOTOR CO.
Remove the ignition lock cylinder lockout lever.

Fig 19: Locating Ignition Lock Cylinder Lockout Lever
Courtesy of FORD MOTOR CO.
Remove the lock actuator lever return spring.

Fig 20: Locating Lock Actuator Lever Return Spring
Courtesy of FORD MOTOR CO.
Using a punch, remove the pin and lock actuator lever.

Fig 21: Removing Pin And Lock Actuator Lever Using A Punch
Courtesy of FORD MOTOR CO.
Using a punch, remove the pin and locking lever cam.

Fig 22: Removing Pin And Locking Lever Cam Using A Punch
Courtesy of FORD MOTOR CO.

NOTE: Do not remove the tilt lock levers if not required.

Using a punch, remove the pin, tilt locking levers and springs.

Fig 23: Locating Pin

G04708936

Courtesy of FORD MOTOR CO.
