Steering Column - Console Shift: Notes

SPECIAL TOOL(S) DESCRIPTION CHART

G04708911Courtesy of FORD MOTOR CO.
 Steering Column Locking Lever Tool
(Shop Fabricated)
MATERIAL SPECIFICATION

Item Specification
Premium Long-Life Grease
XG-1-C		 ESA-M1C75-B

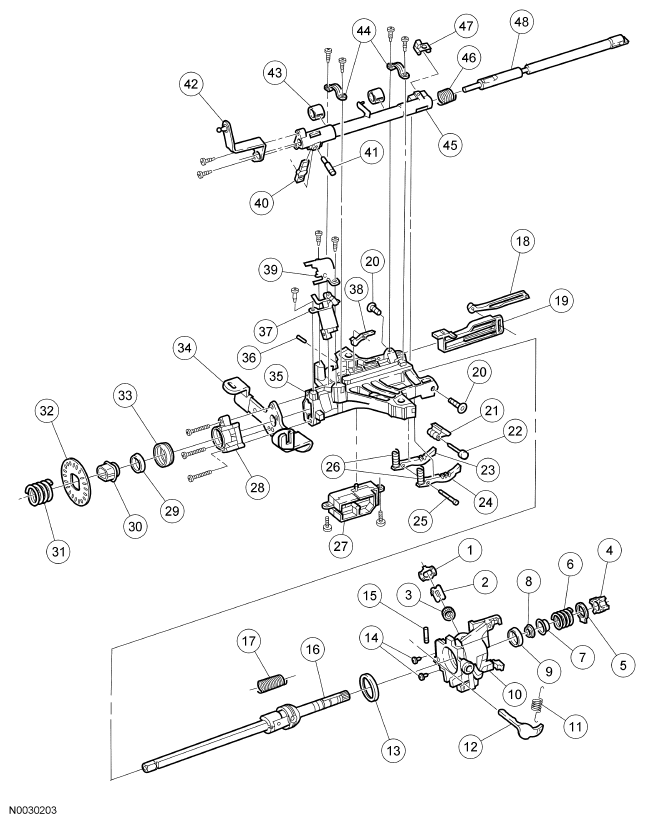

Fig 1: Exploded View Of Steering Column - Console Shift
G04708912Courtesy of FORD MOTOR CO.

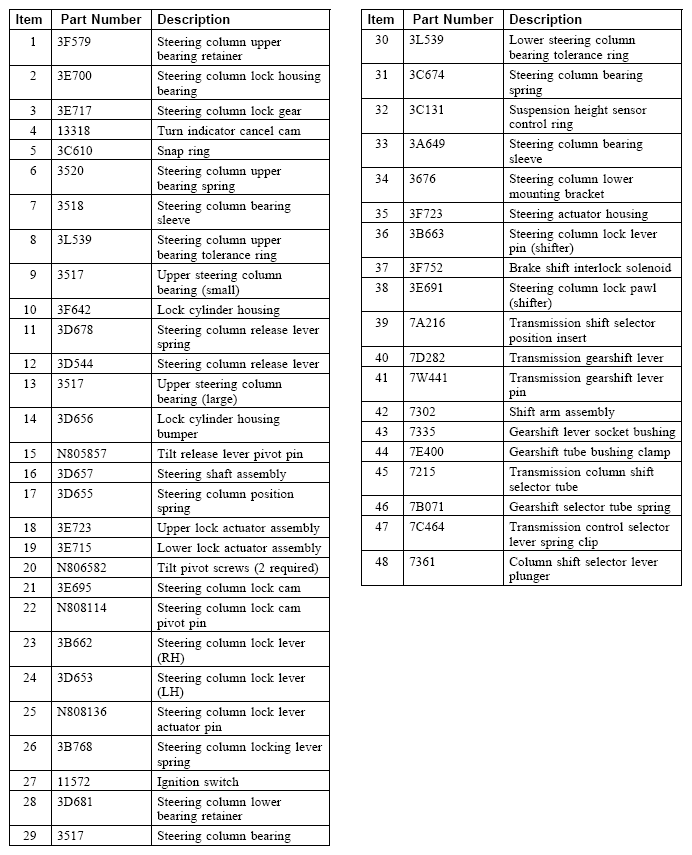

Fig 2: Identifying Steering Column - Console Shift Legends Description
G04708913Courtesy of FORD MOTOR CO.
