Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

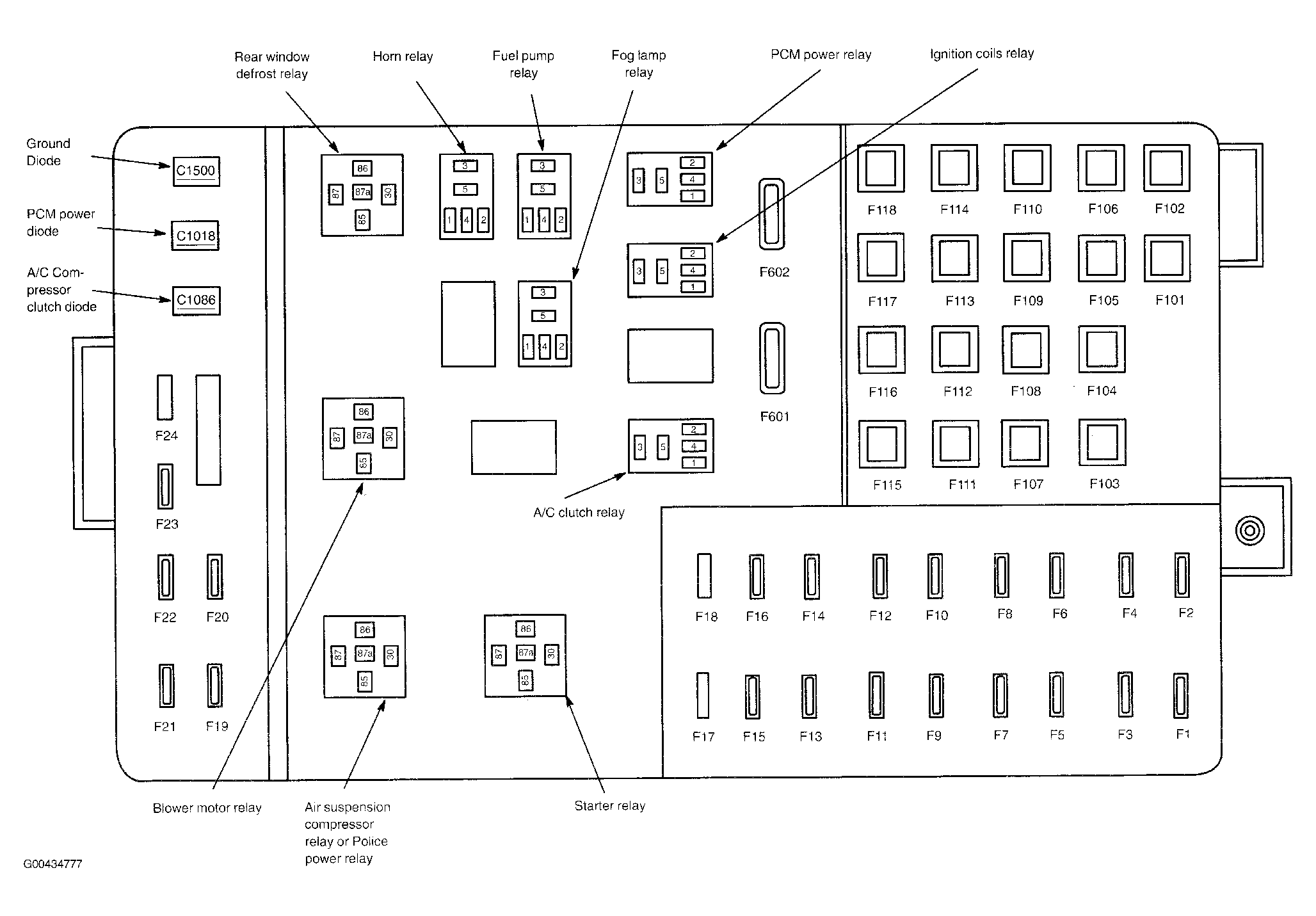

Fig 1: Battery Junction Box (BJB)

G00434777

Courtesy of FORD MOTOR CO.

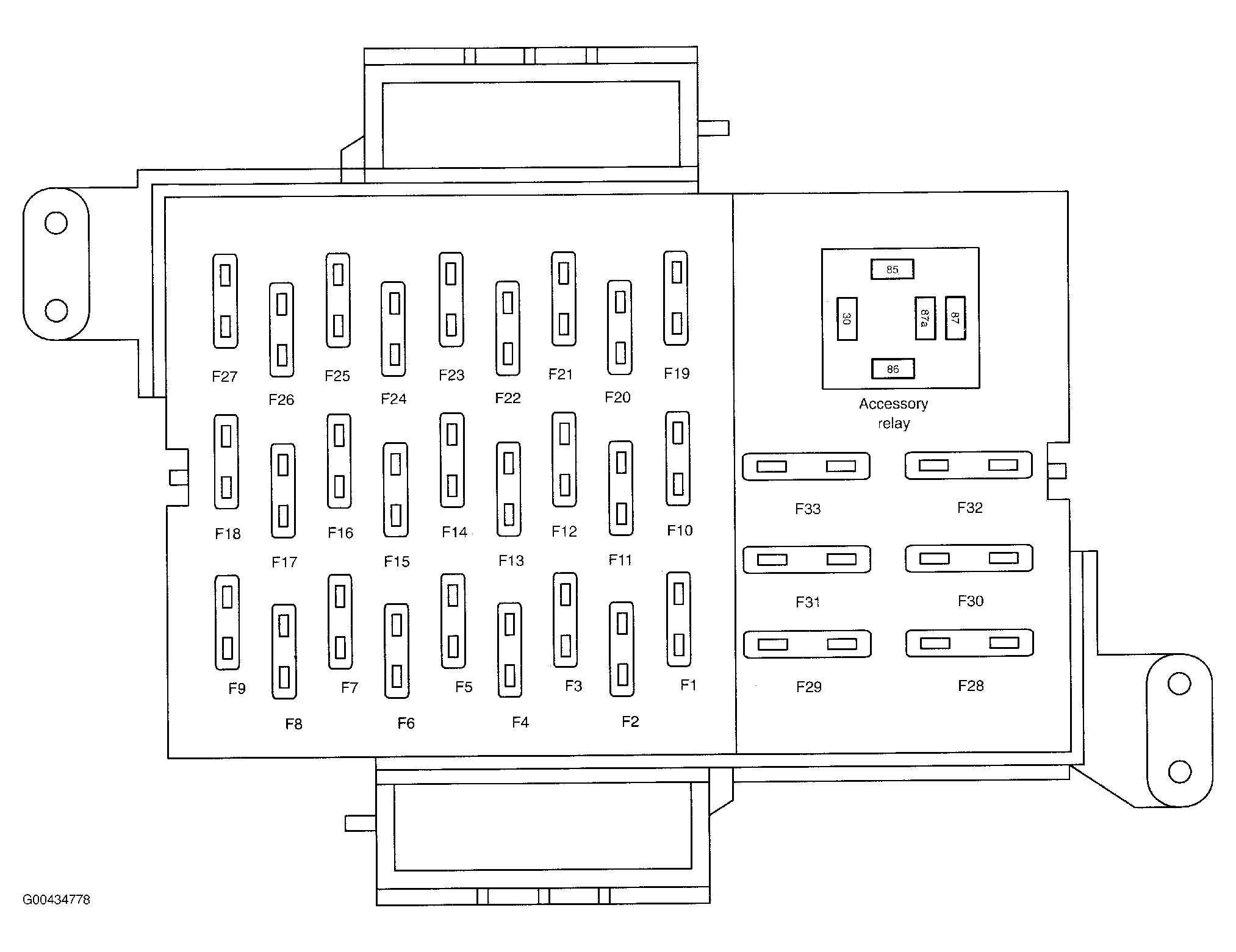

Fig 2: Central Junction Box (CJB)

G00434778

Courtesy of FORD MOTOR CO.

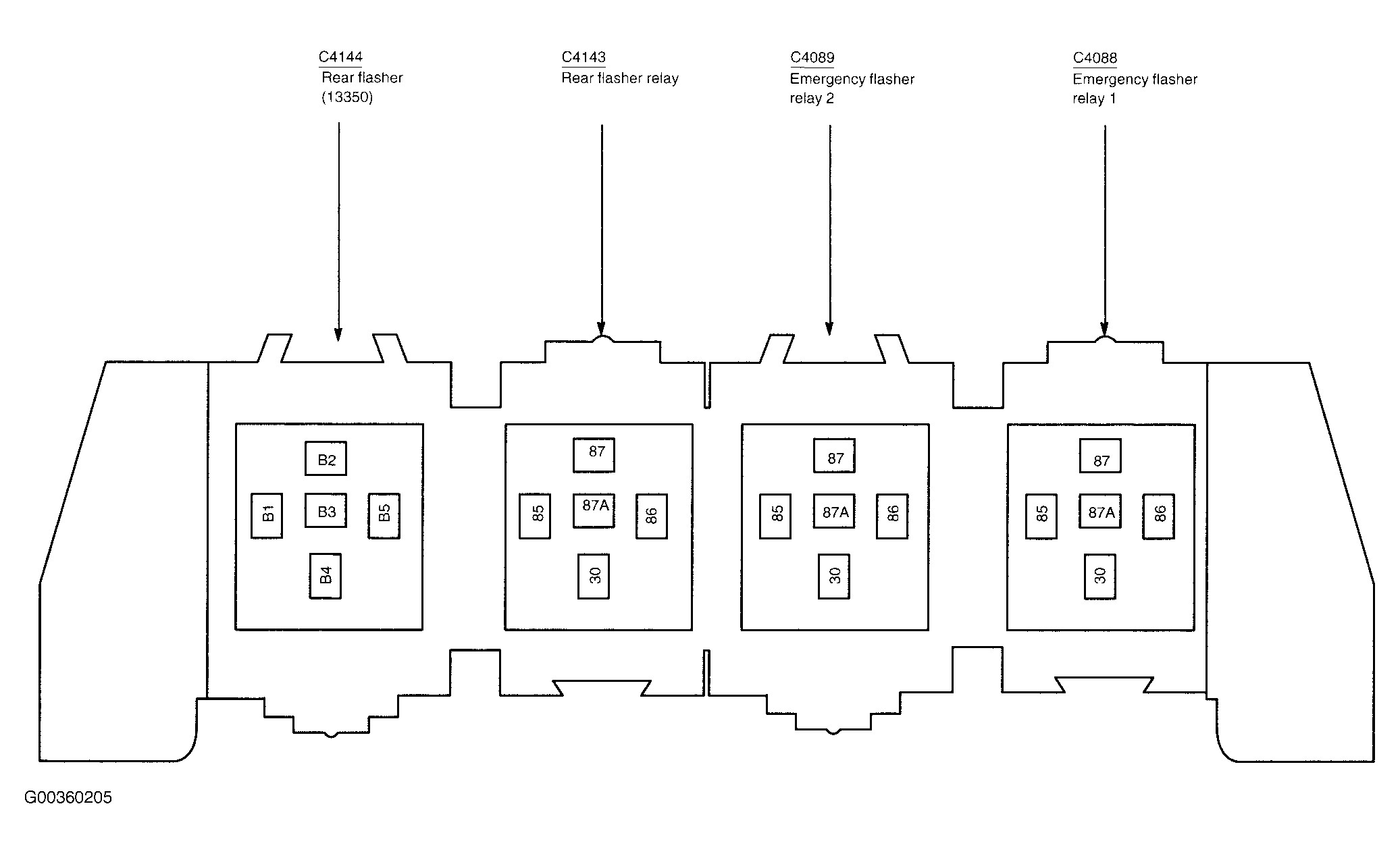

Fig 3: Emergency Flasher Relay Block

G00360205

Courtesy of FORD MOTOR CO.

Fig 4: Engine Compartment

G00434779

Courtesy of FORD MOTOR CO.

Fig 5: Engine Compartment

G00418071

Courtesy of FORD MOTOR CO.

Fig 6: Engine Compartment

G00434780

Courtesy of FORD MOTOR CO.

Fig 7: Front Of Engine

G00418073

Courtesy of FORD MOTOR CO.

Fig 8: Rear Of Engine

G00434781

Courtesy of FORD MOTOR CO.

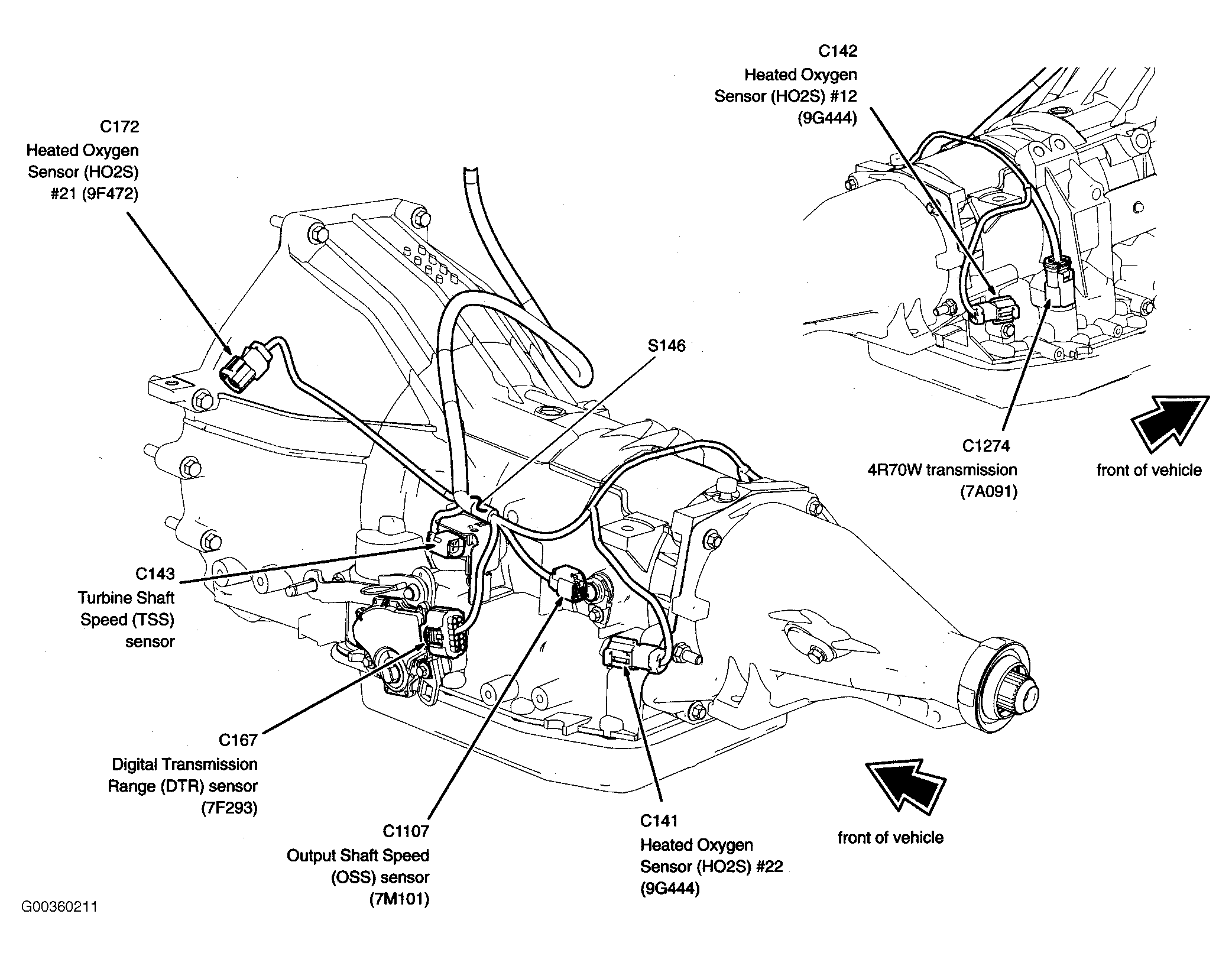

Fig 9: Transmission

G00360211

Courtesy of FORD MOTOR CO.

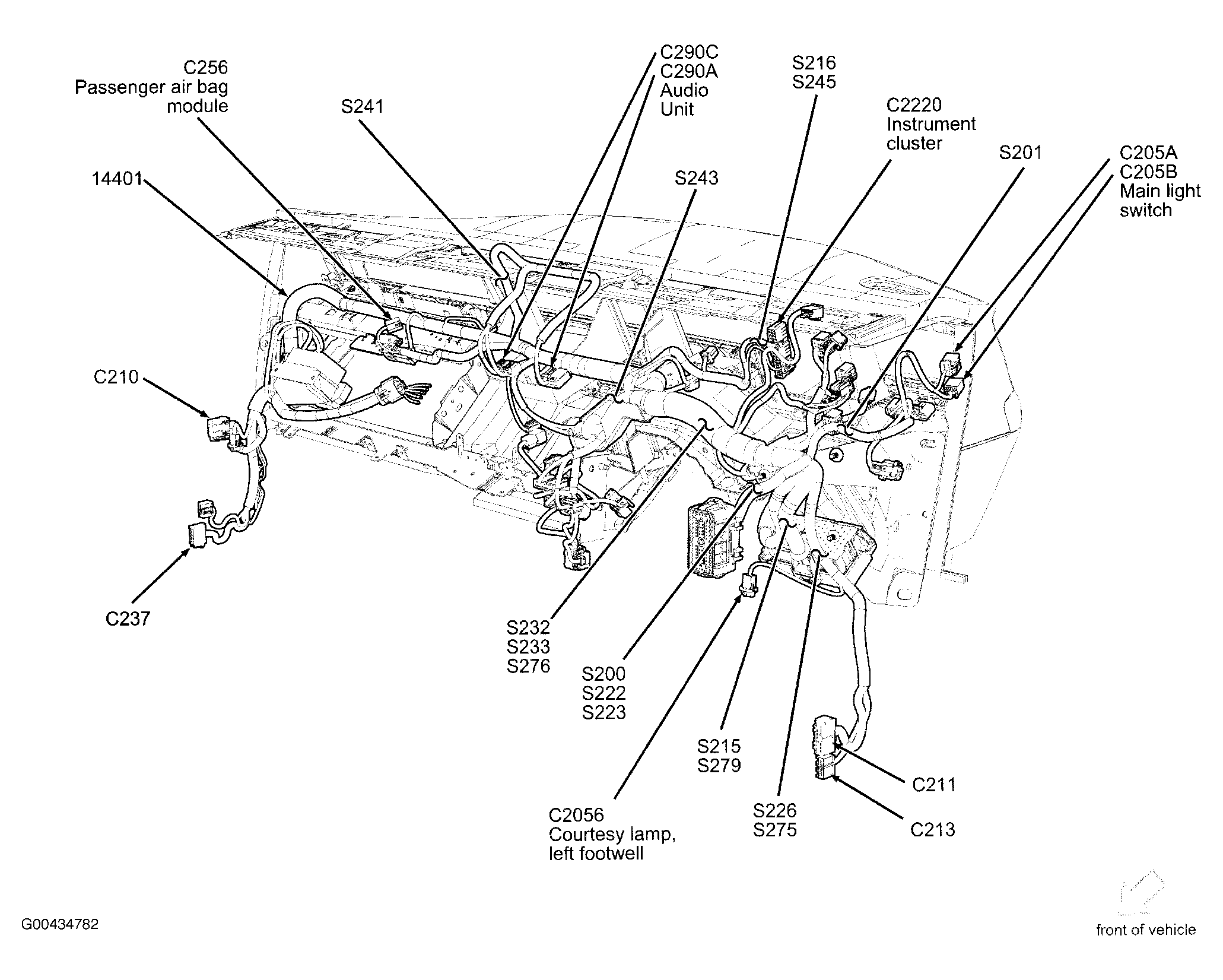

Fig 10: Rear Of Dash Panel

G00434782

Courtesy of FORD MOTOR CO.

Fig 11: Front Of Dash Panel

G00434783

Courtesy of FORD MOTOR CO.

Fig 12: Front Of Dash Panel

G00434784

Courtesy of FORD MOTOR CO.

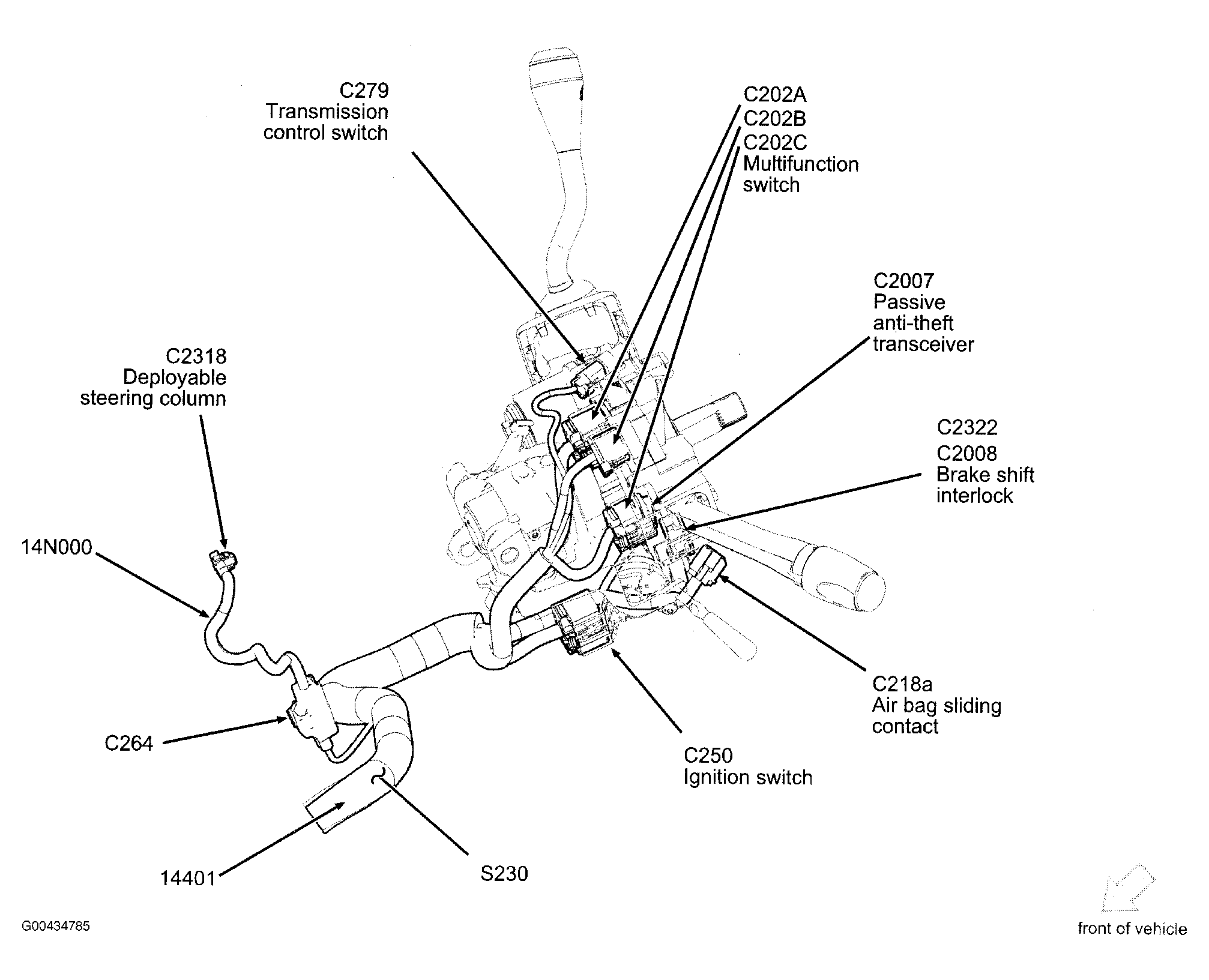

Fig 13: Steering Column

G00434785

Courtesy of FORD MOTOR CO.

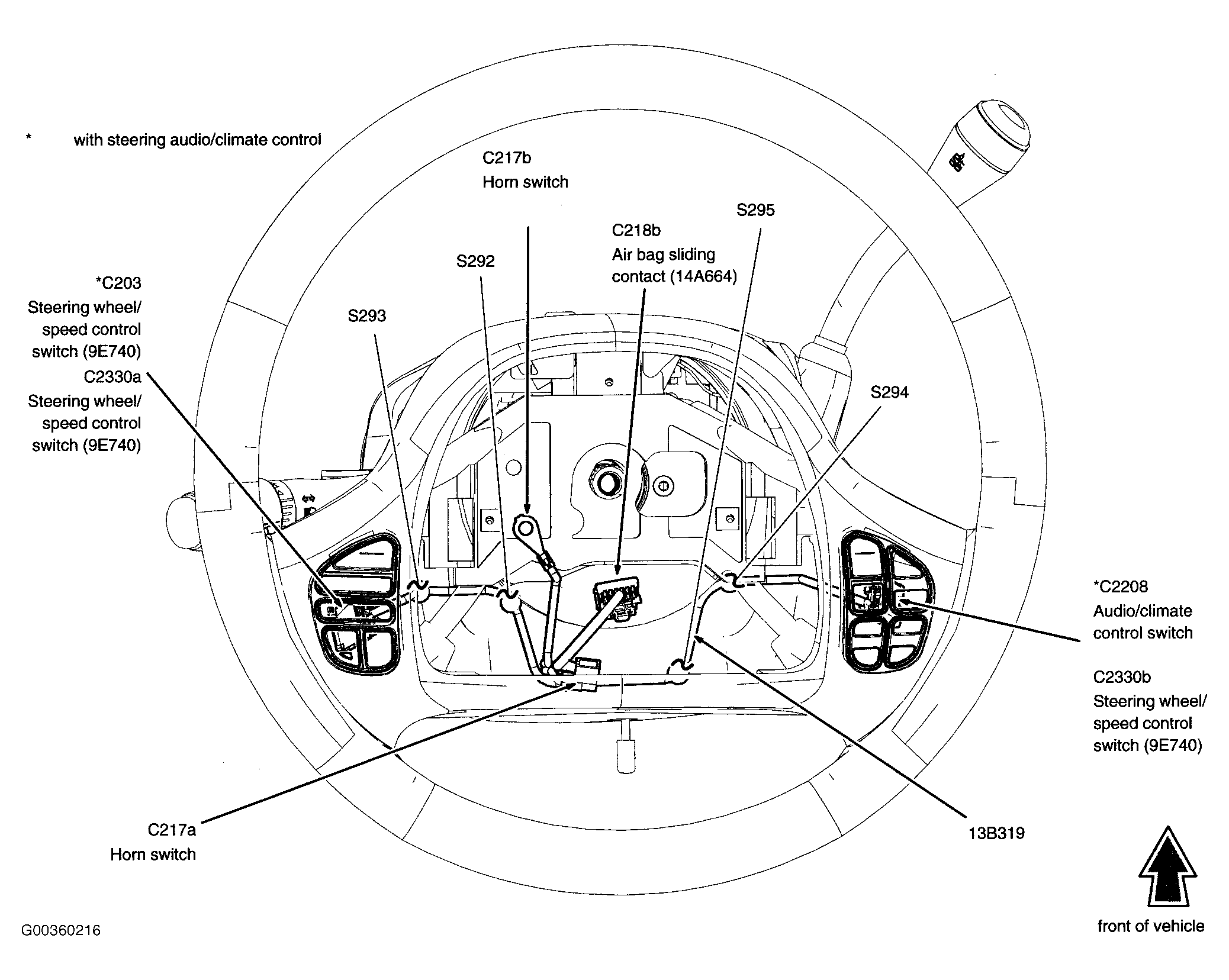

Fig 14: Steering Wheel

G00360216

Courtesy of FORD MOTOR CO.

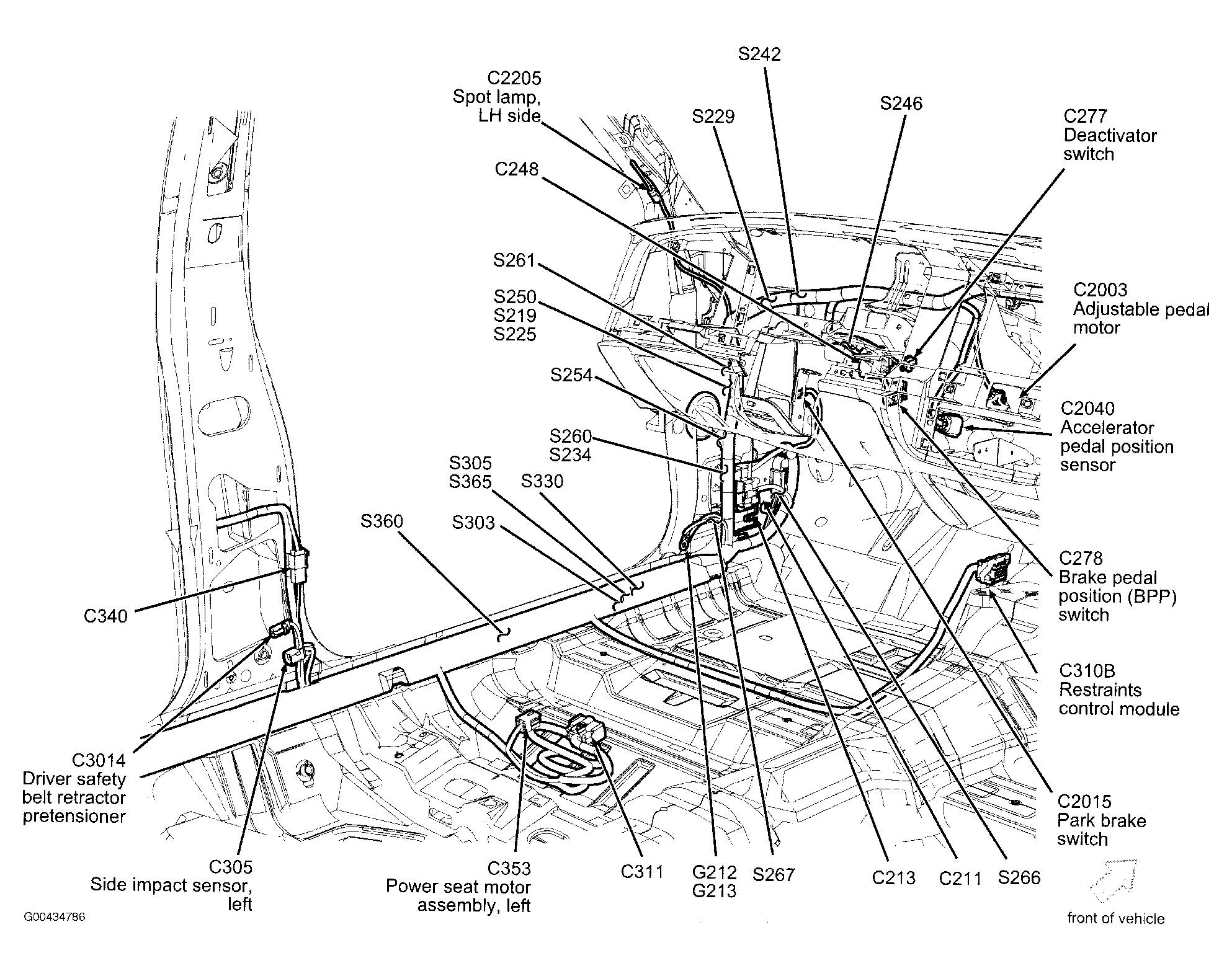

Fig 15: Left "A" Pillar

G00434786

Courtesy of FORD MOTOR CO.

Fig 16: Right "A" Pillar

G00434787

Courtesy of FORD MOTOR CO.

Fig 17: Right "A" Pillar (Police)

G00360219

Courtesy of FORD MOTOR CO.

Fig 18: Left Rear Of Vehicle

G00434789

Courtesy of FORD MOTOR CO.

Fig 19: Right Rear Of Vehicle

G00434790

Courtesy of FORD MOTOR CO.

Fig 20: Roof (With Opening Panel)

G00360222

Courtesy of FORD MOTOR CO.

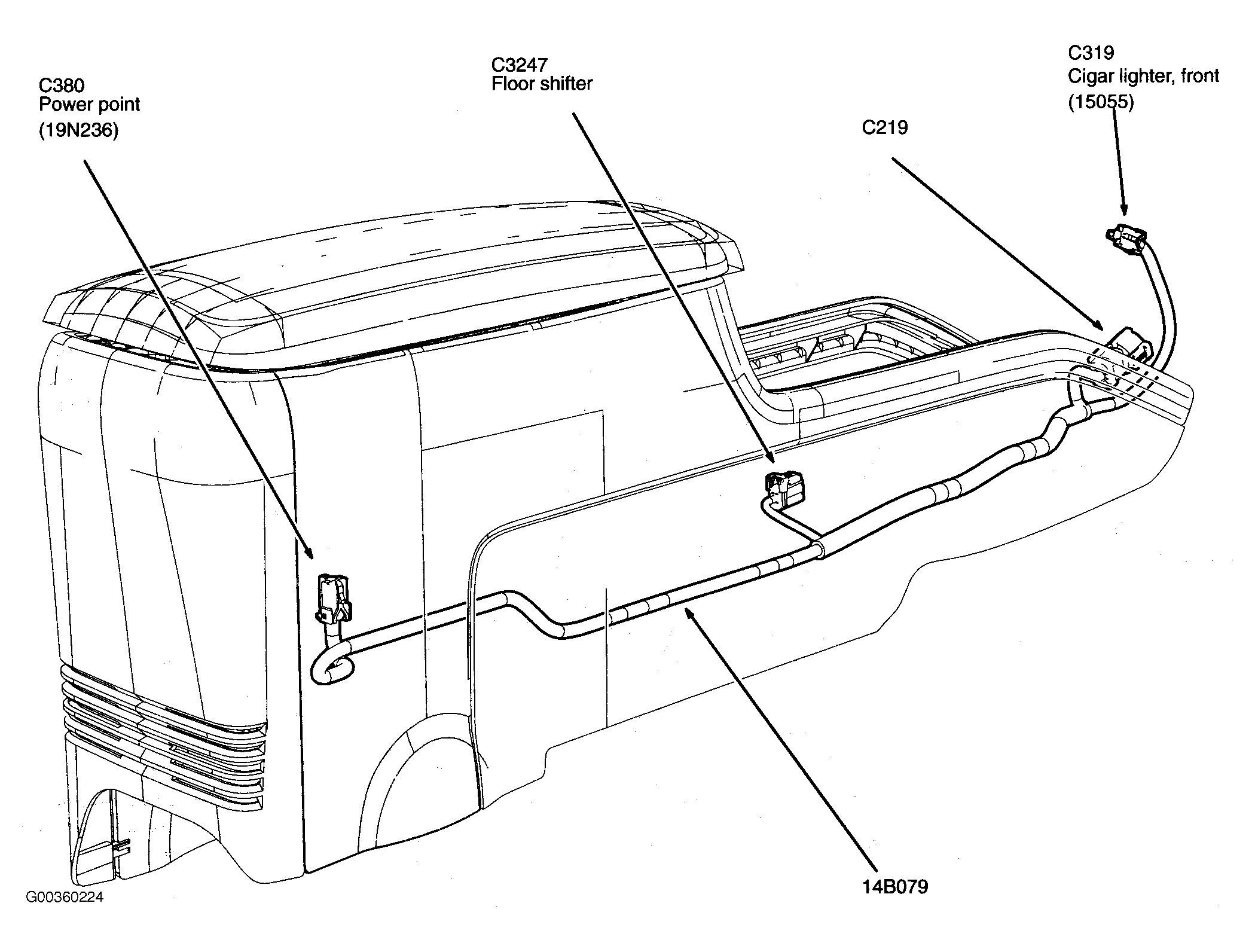

Fig 21: Center Console

G00360224

Courtesy of FORD MOTOR CO.

Fig 22: Driver's Seat

G00418083

Courtesy of FORD MOTOR CO.

Fig 23: Passenger's Seat

G00418084

Courtesy of FORD MOTOR CO.

Fig 24: Driver's Door

G00434791

Courtesy of FORD MOTOR CO.

Fig 25: Passenger's Door

G00434792

Courtesy of FORD MOTOR CO.

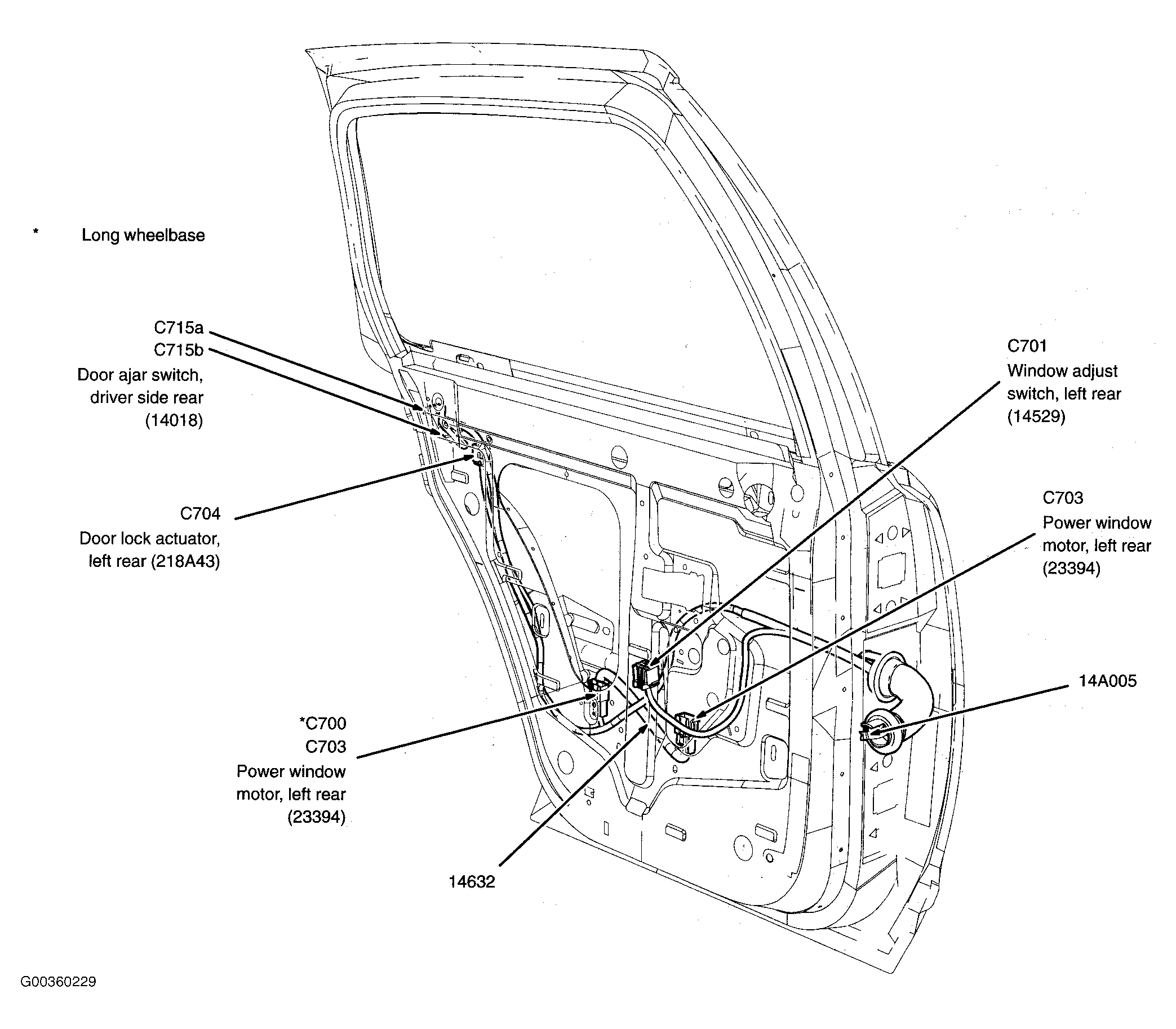

Fig 26: Left Rear Door

G00360229

Courtesy of FORD MOTOR CO.

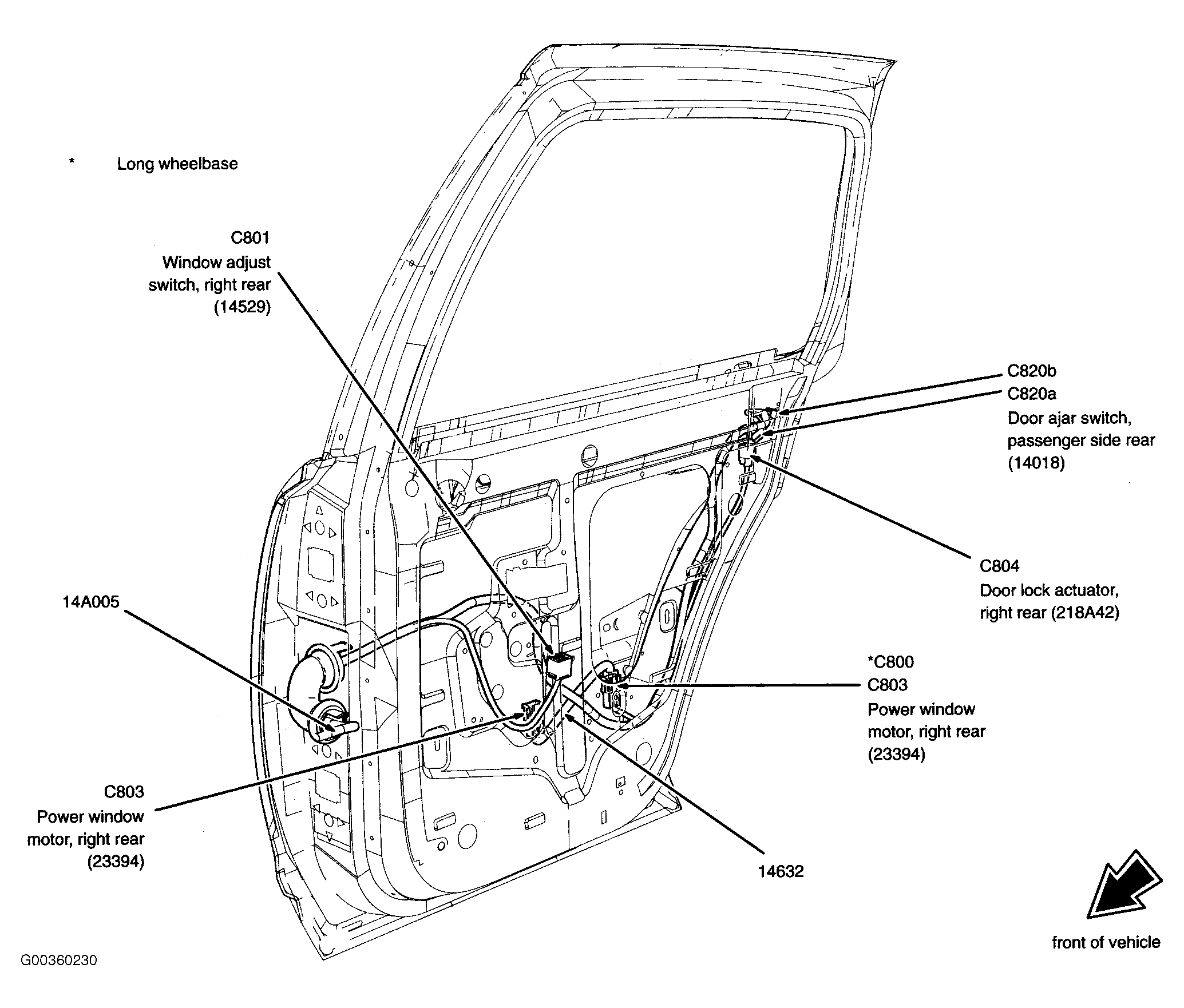

Fig 27: Right Rear Door

G00360230

Courtesy of FORD MOTOR CO.

Fig 28: Trunk

G00434793

Courtesy of FORD MOTOR CO.

Fig 29: Trunk

G00434794

Courtesy of FORD MOTOR CO.

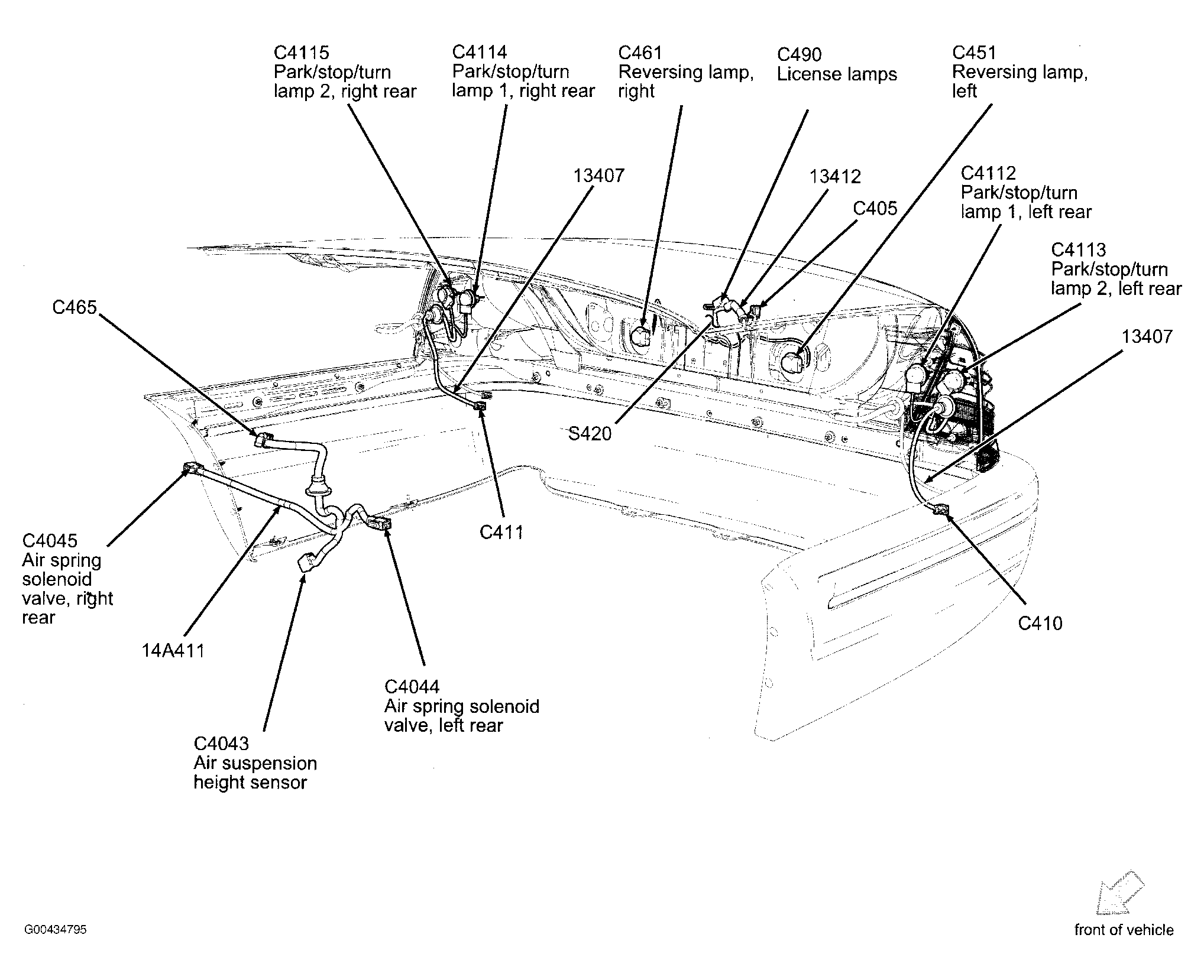

Fig 30: Trunk

G00434795

Courtesy of FORD MOTOR CO.

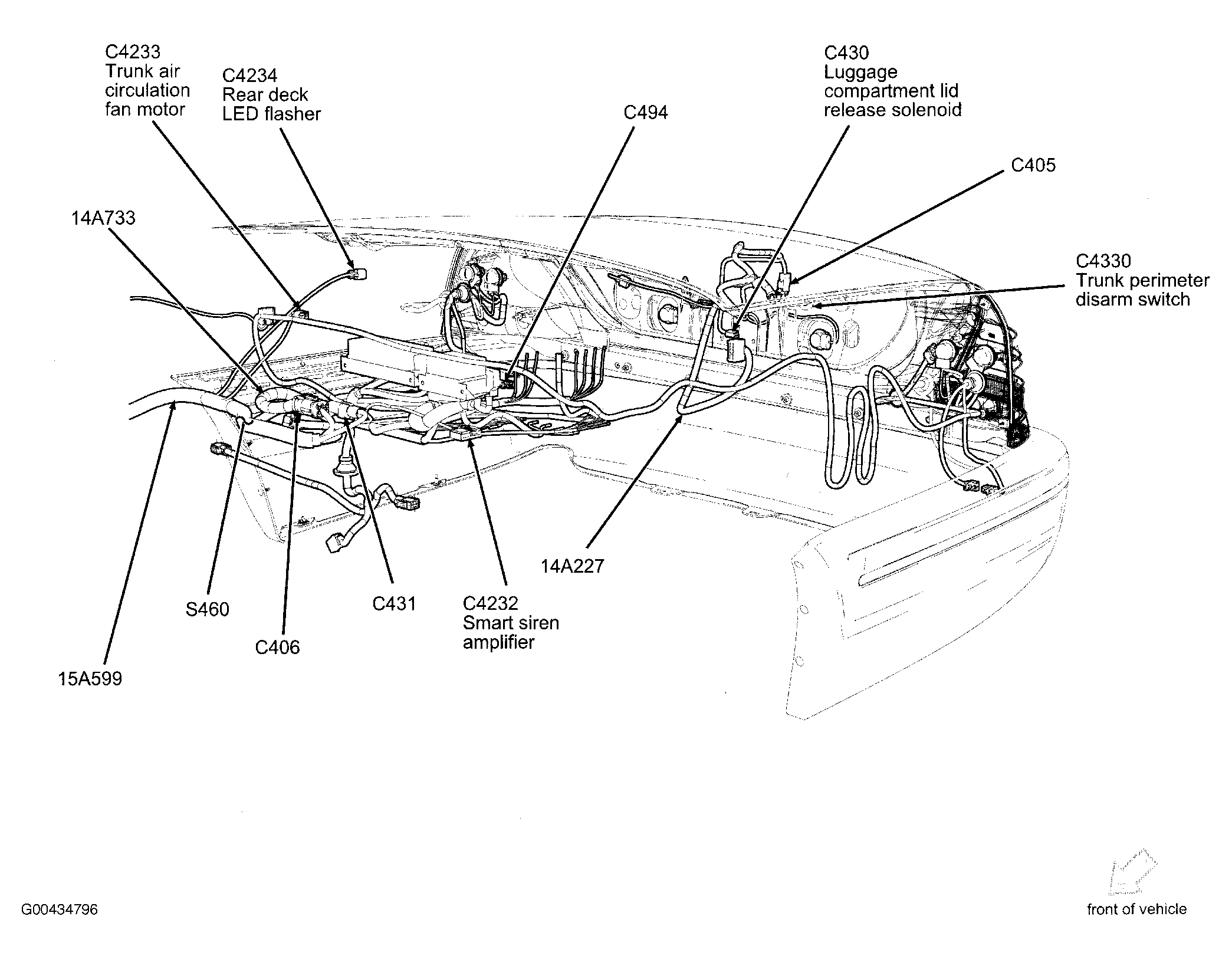

Fig 31: Trunk

G00434796

Courtesy of FORD MOTOR CO.

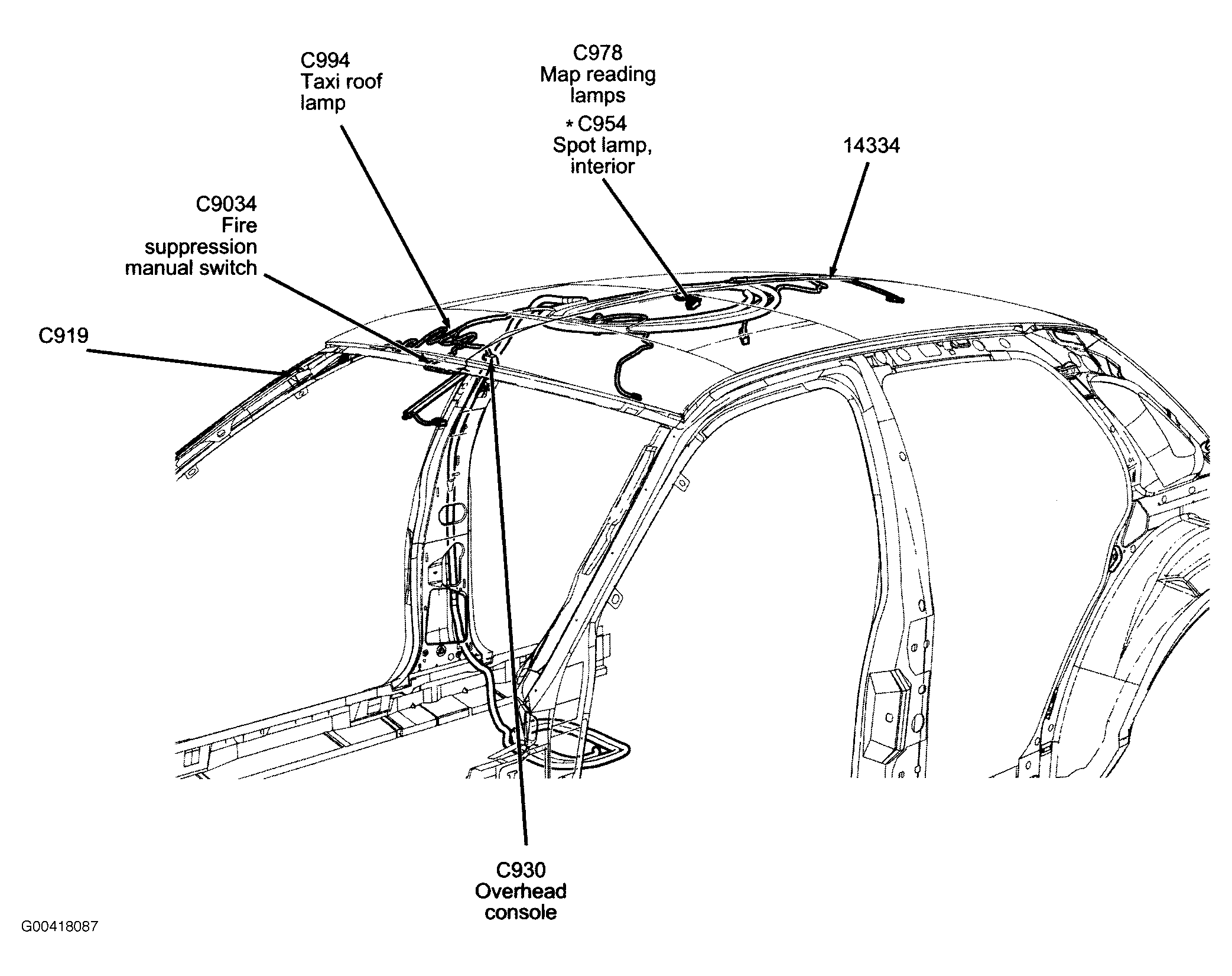

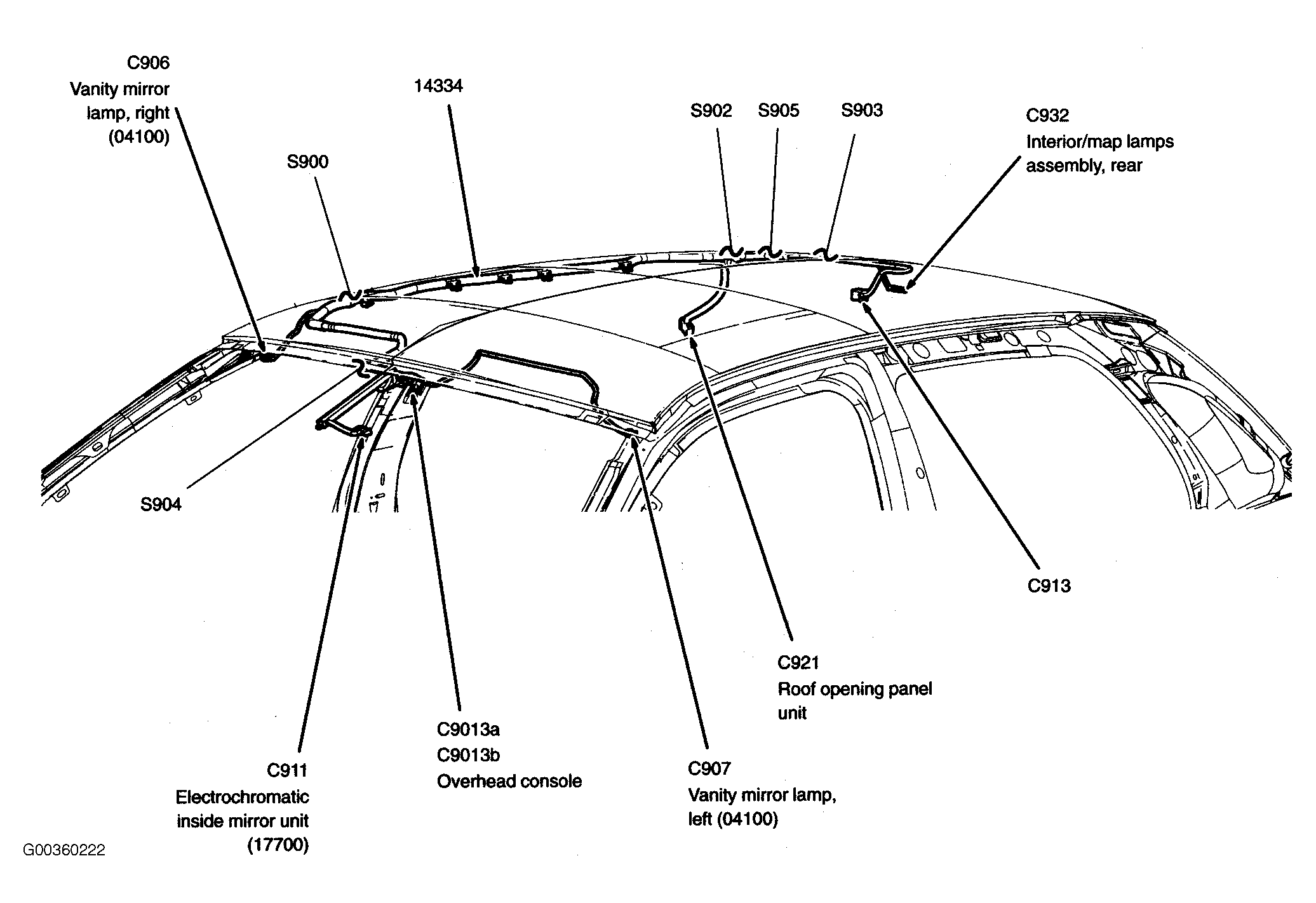

Fig 32: Roof

G00418087

Courtesy of FORD MOTOR CO.
