Engine Front Cover: Notes

Material

Item Specification
Motorcraft Metal Surface Cleaner
ZC-21		 WSE-M5B392-A
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent		 WSS-M2C930-A
Silicone Gasket and Sealant
TA-30		 WSE-M4G323-A4

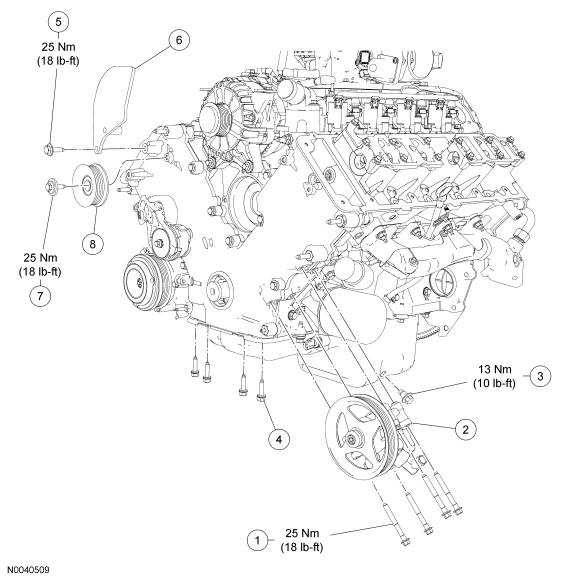

Fig 1: Exploded View Of Engine Front Cover (With Torque Specifications - 1 Of 2)
GF0013564Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N806176 Power steering pump bolt (4 required)
2 3A674 Power steering pump assembly
3 6730 Oil pan drain plug
4 W701605 Oil pan bolt (4 required)
5 W701725 Shield bolt
6 9G609 Shield
7 N808102 Accessory drive idler pulley bolt
8 19A216 Accessory drive idler pulley

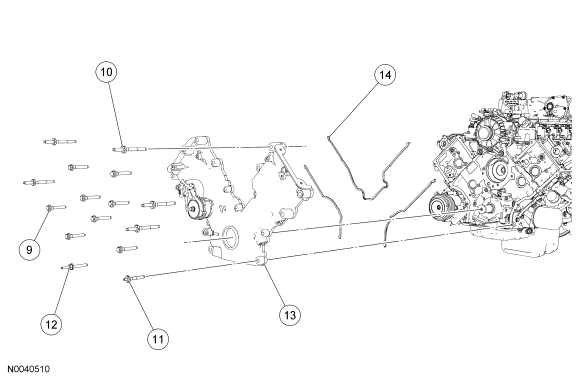

Fig 2: Exploded View Of Engine Front Cover (With Torque Specifications - 2 Of 2)
GF0013565Courtesy of FORD MOTOR CO.
Item Part Number Description
9 N806177 Engine front cover bolt (8 required)
10 N806300 Engine front cover stud bolt (5 required)
11 W706508 Engine front cover bolt
12 N808586 Engine front cover bolt
13 6D080 Engine front cover
14 6D081 Engine front cover gasket (3 required)
