Engine Mount - LH: Notes

Special Tools

Illustration	Tool Name	Tool Number
	3-Bar Engine Support Kit	303-F072
	Lifting Brackets, Engine	303-050 (T70P-6000)

Material

Item	Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

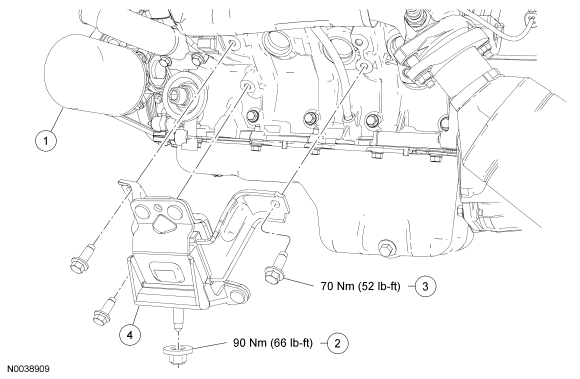

Fig 1: Exploded View Of LH Engine Mount With Torque Specifications

GF0013614

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6714	Oil filter
2	W707492	LH engine mount nut
3	W710646-S439	LH engine mount bolt (3 required)
4	6B032	LH engine mount
