Engine Mount - RH: Notes

Special Tools

Illustration Tool Name Tool Number
GF0000161
 3-Bar Engine Support Kit 303-F072
GF0000160
 Lifting Brackets, Engine 303-050 (T70P-6000)

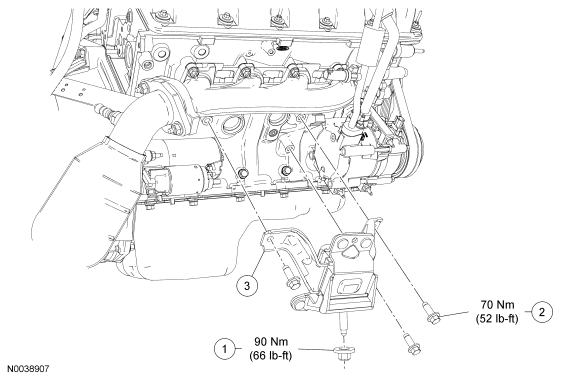

Fig 1: Exploded View Of RH Engine Mount With Torque Specifications
GF0013611Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W707492 RH engine mount nut
2 W710646 RH engine mount bolt (3 required)
3 6038 RH engine mount
