Valve Train Components - Exploded View

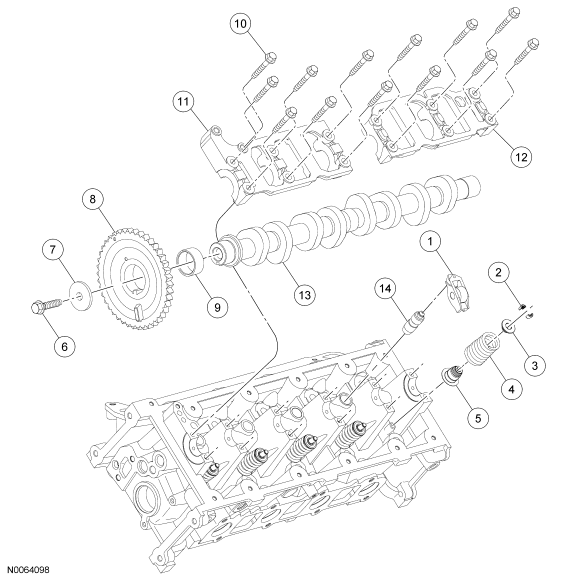

Fig 1: Exploded View Of Valve Train Components
GF0013579Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6529 Camshaft roller follower (8 required)
2 6518 Valve spring retainer key (16 required)
3 6514 Valve spring retainer (8 required)
4 6513 Valve spring (8 required)
5 6A517 Valve stem seal (8 required)
6 N811085 Camshaft sprocket bolt
7 N806164 Camshaft sprocket bolt washer
8 6C255 Camshaft sprocket
9 6265 Camshaft gear spacer
10 N807834 Camshaft bearing cap assembly bolt (13 required)
11 6B280 Camshaft bearing cap
12 6B280 Camshaft bearing cap
13 6C255 Camshaft
14 6C501 Hydraulic lash adjuster (8 required)
  1. For additional information, refer to the following procedures.
