Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

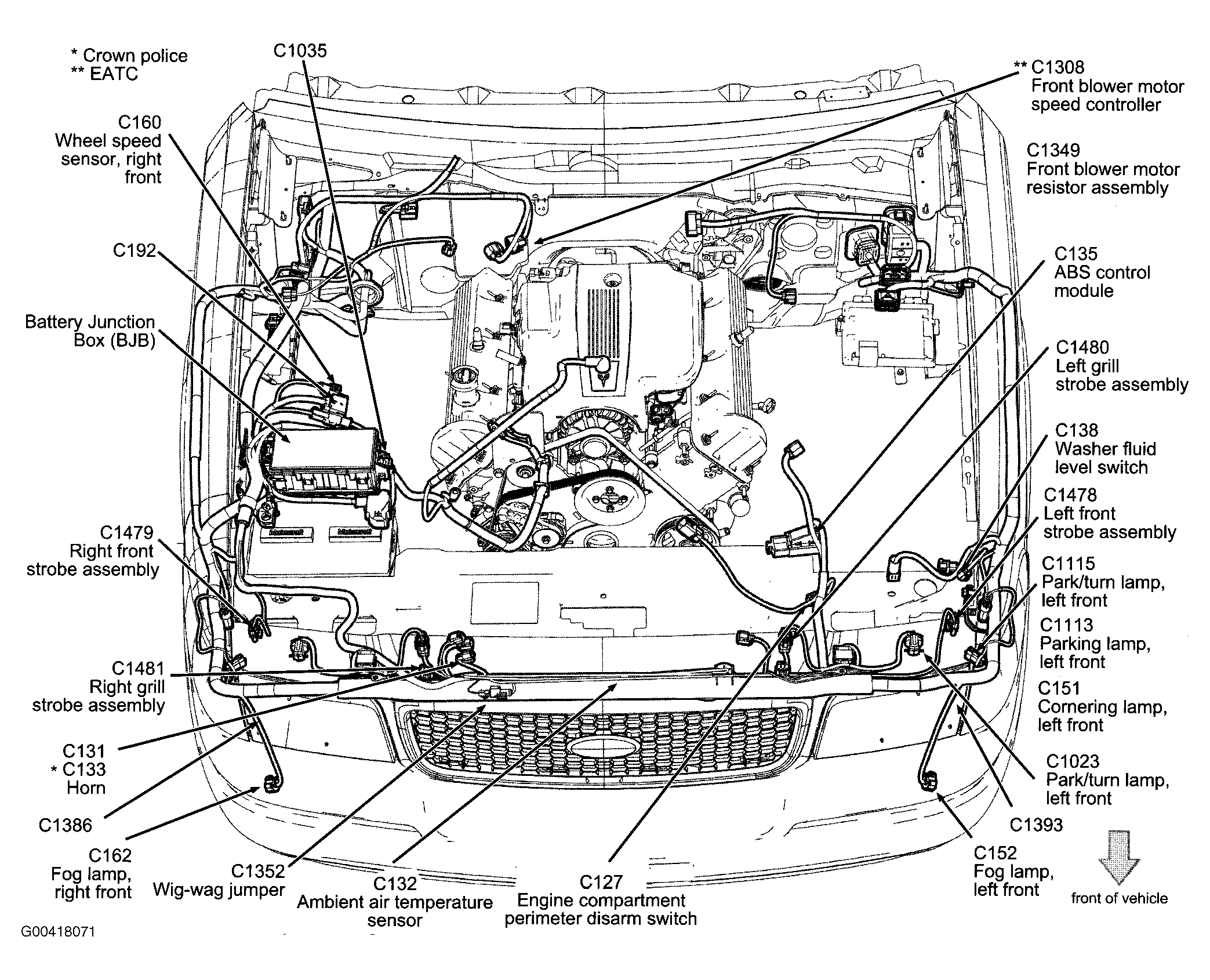

| ABS Control Module | Left front of engine compartment. See Figure. |

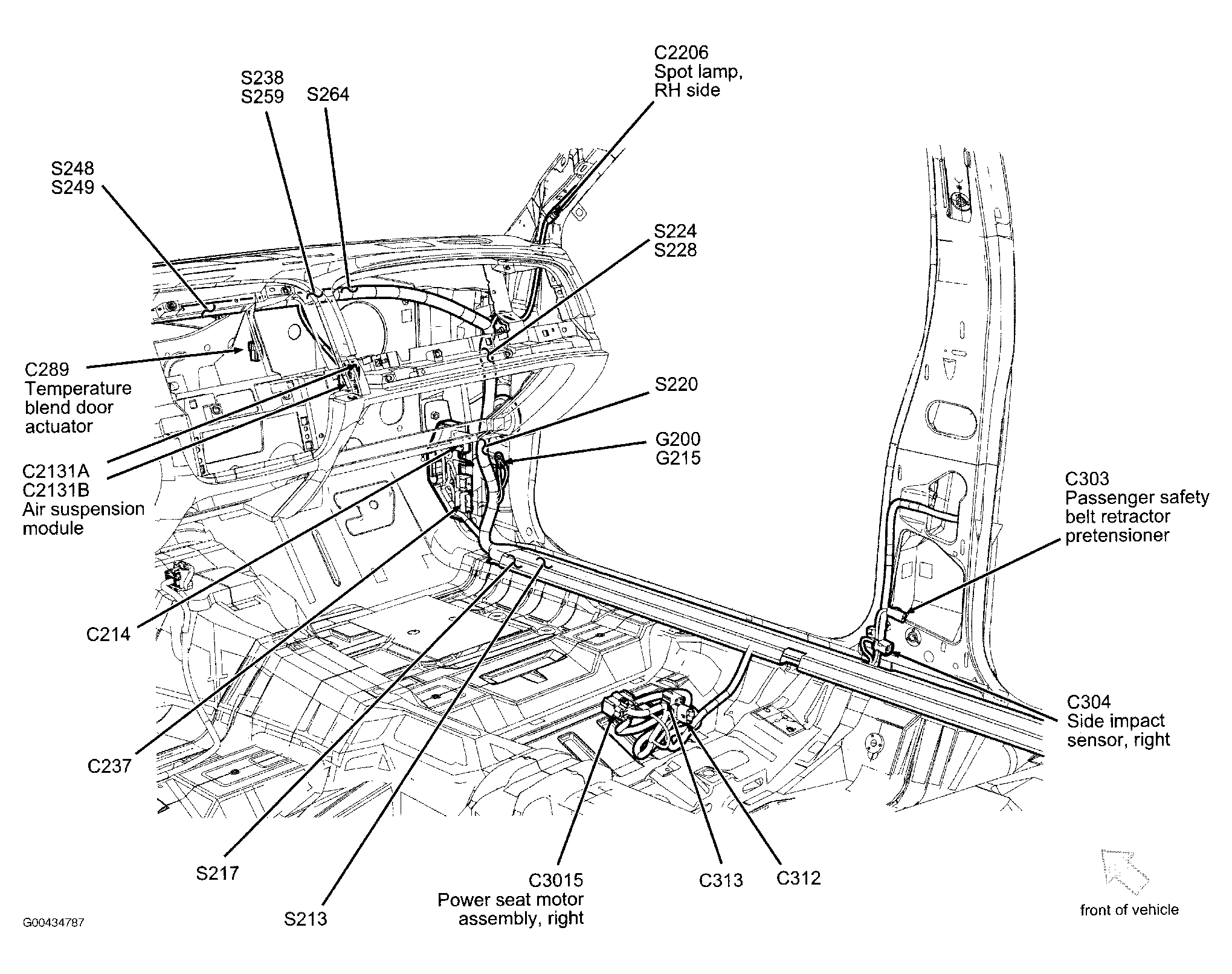

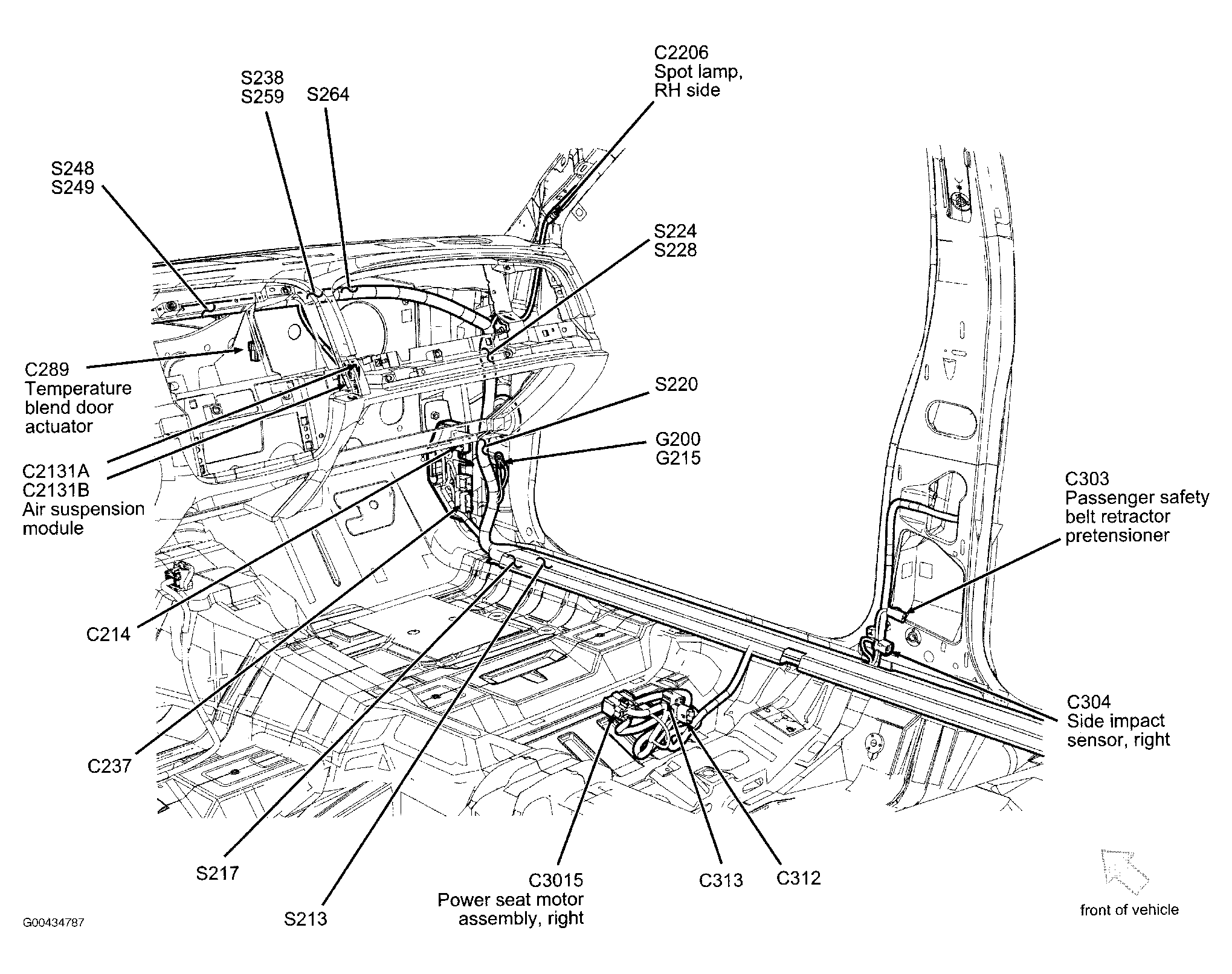

| Air Suspension Module | Behind right side of dash, above glove box. See Figure. |

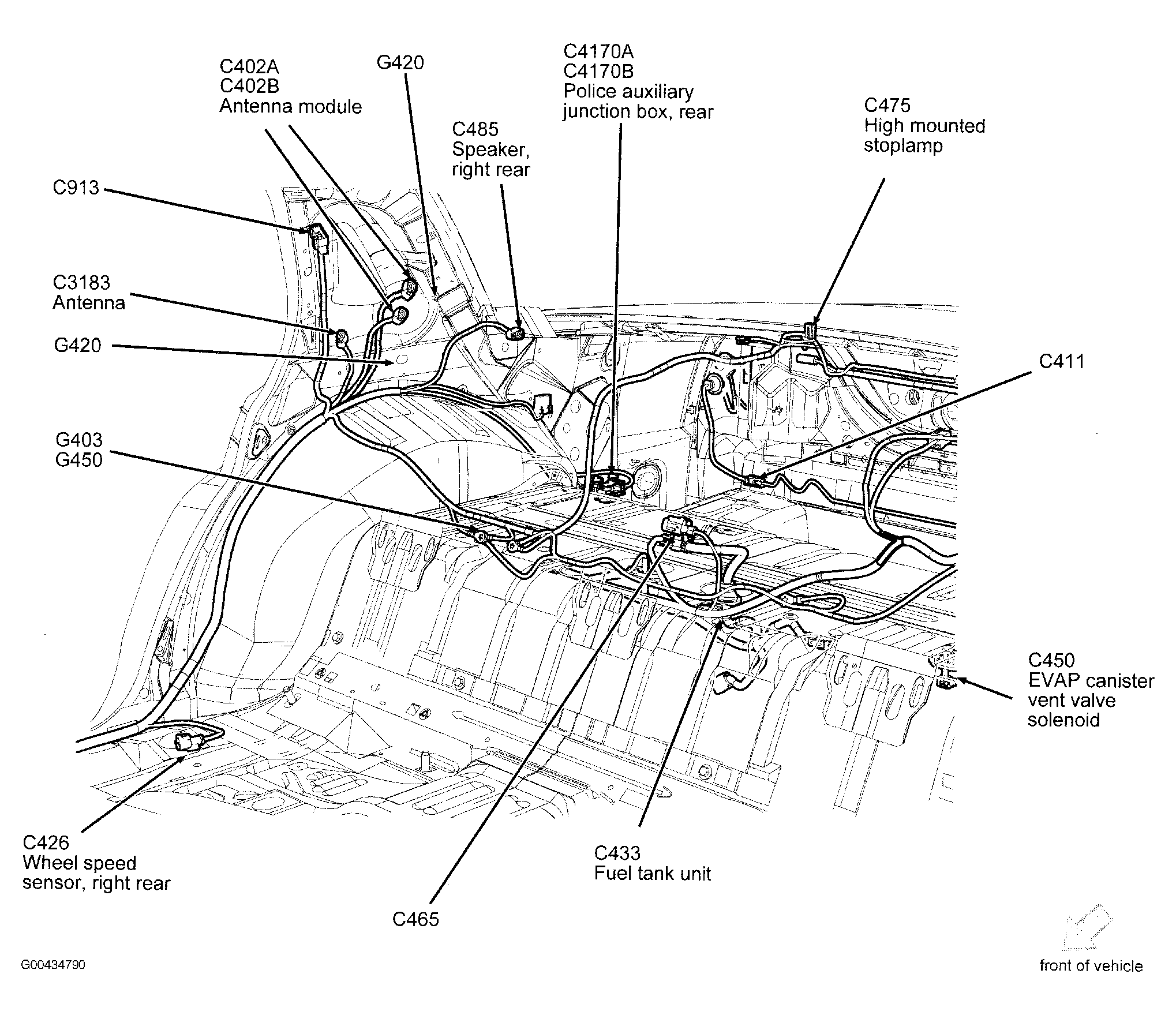

| Antenna Module | Base of right "C" pillar. See Figure. |

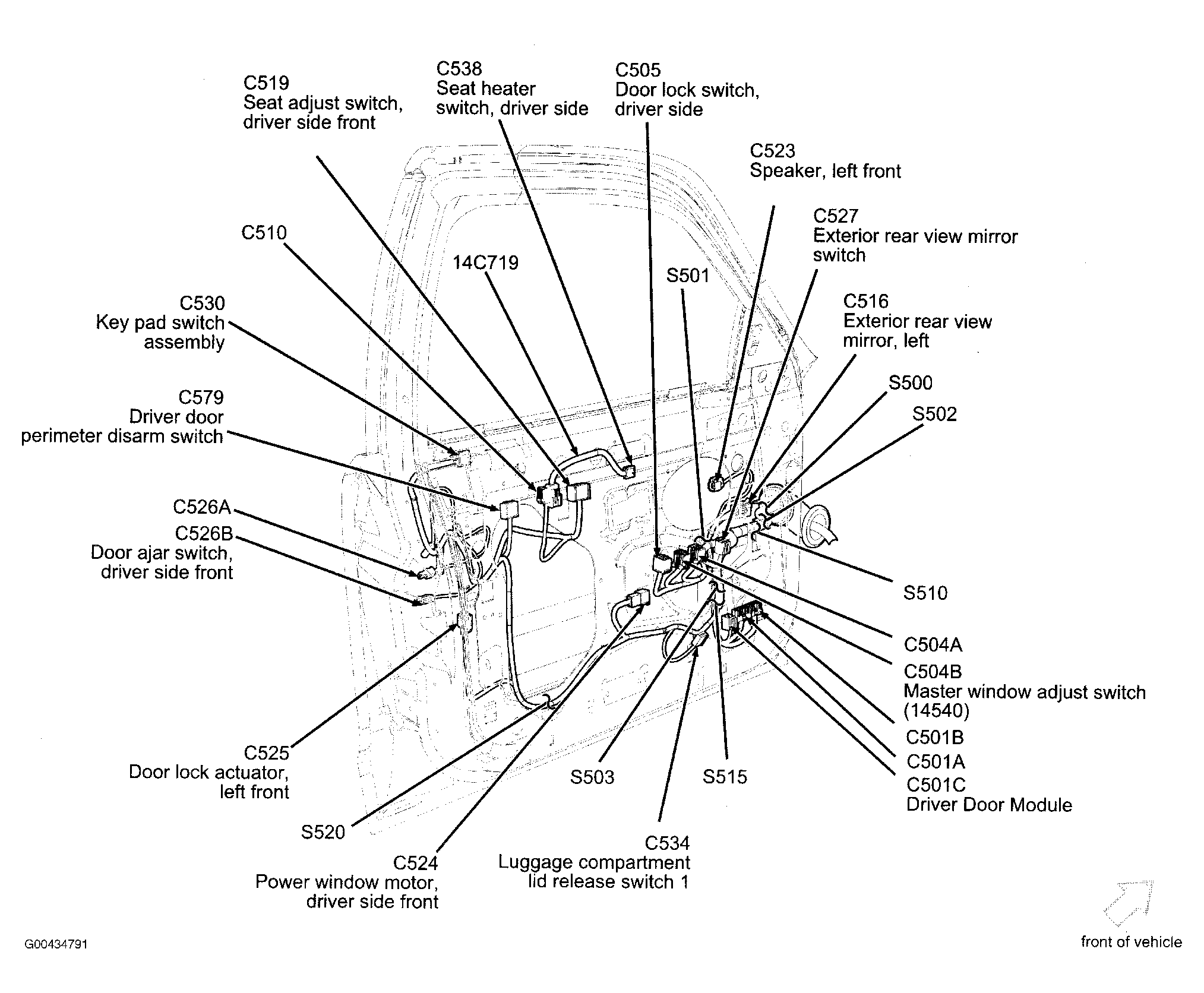

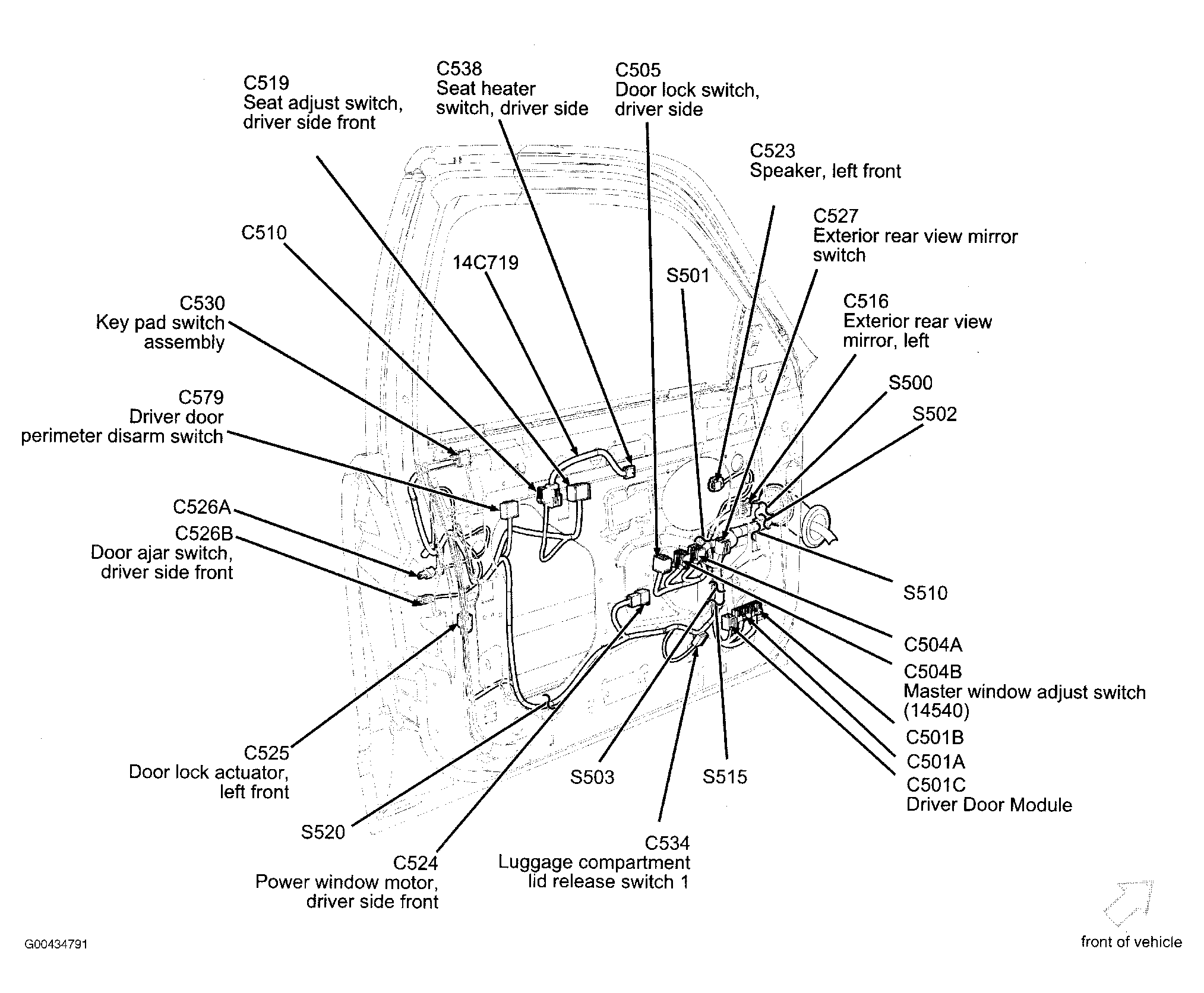

| Driver Door Module | Bottom front of left front door. See Figure. |

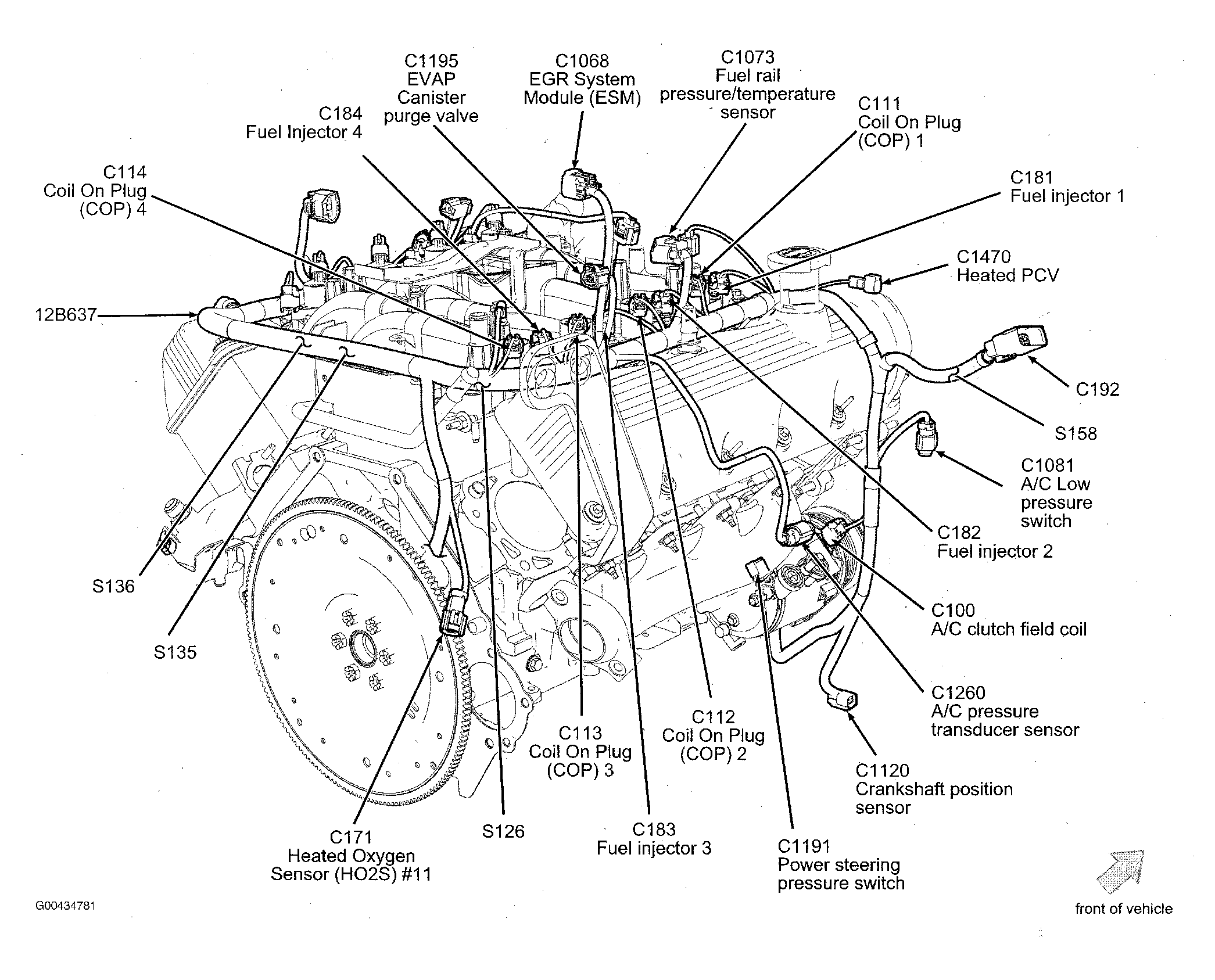

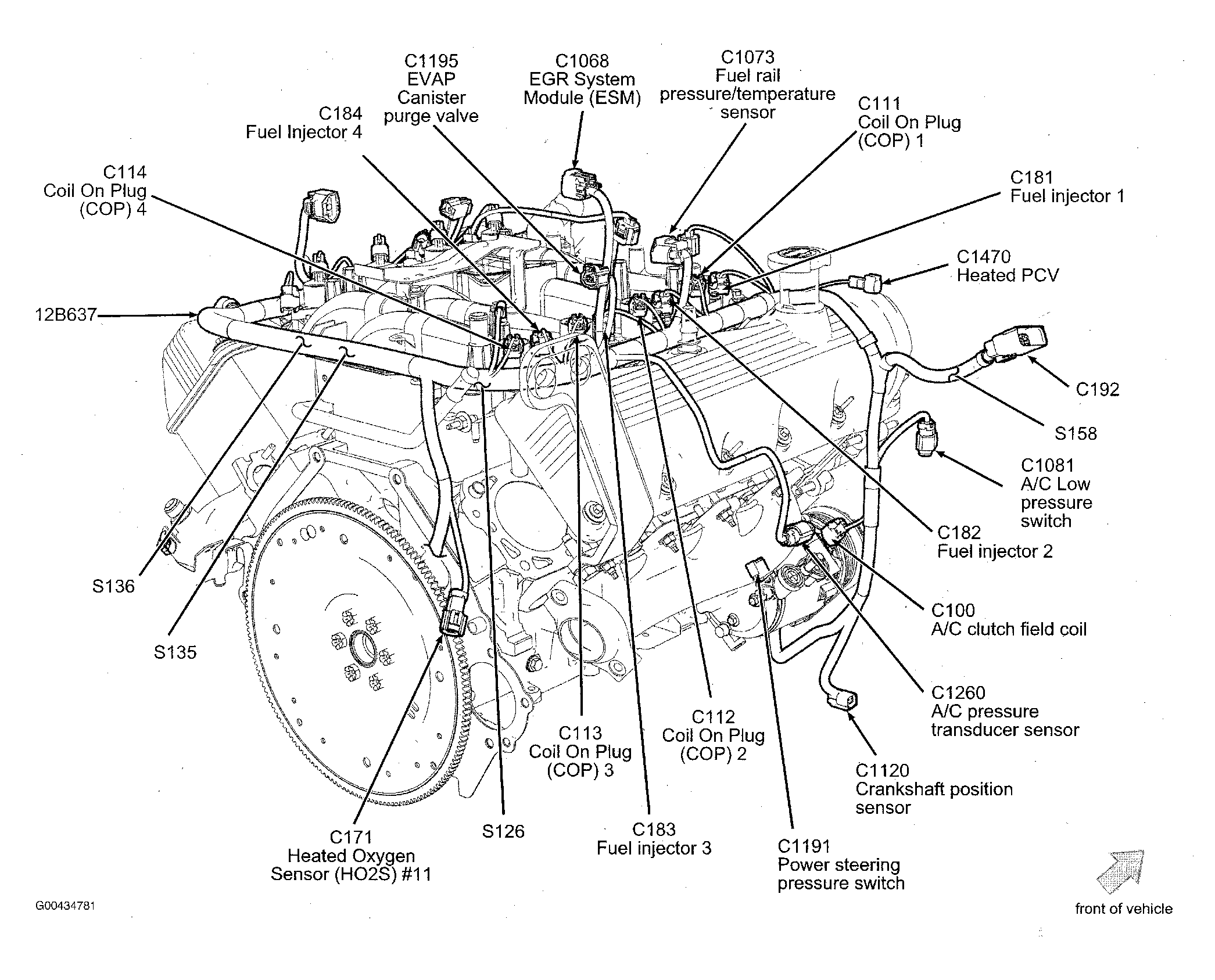

| EGR System Module (ESM) | Right side of engine. See Figure. |

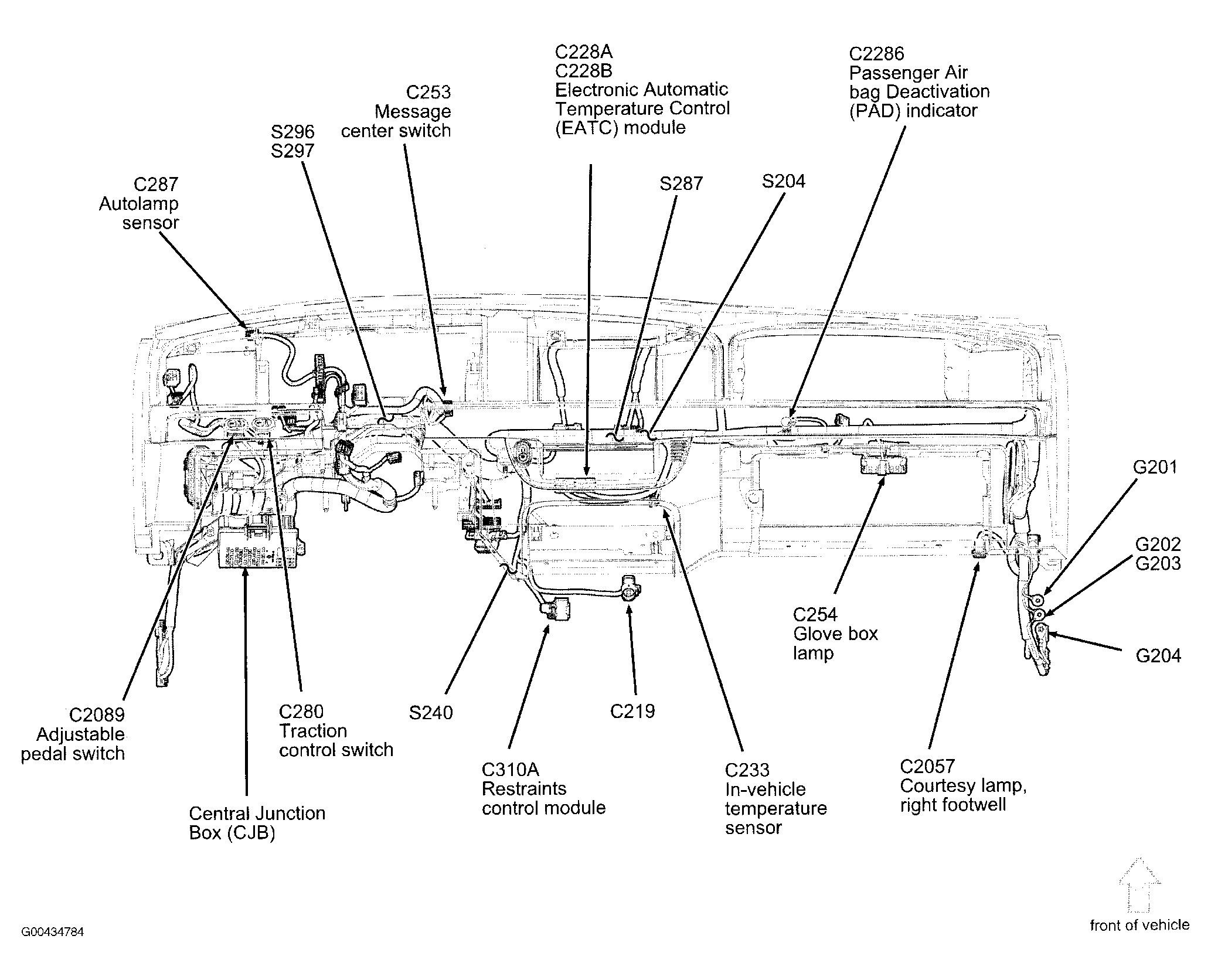

| Electronic Automatic Temperature Control (EATC) Module | Behind center of dash. See Figure. |

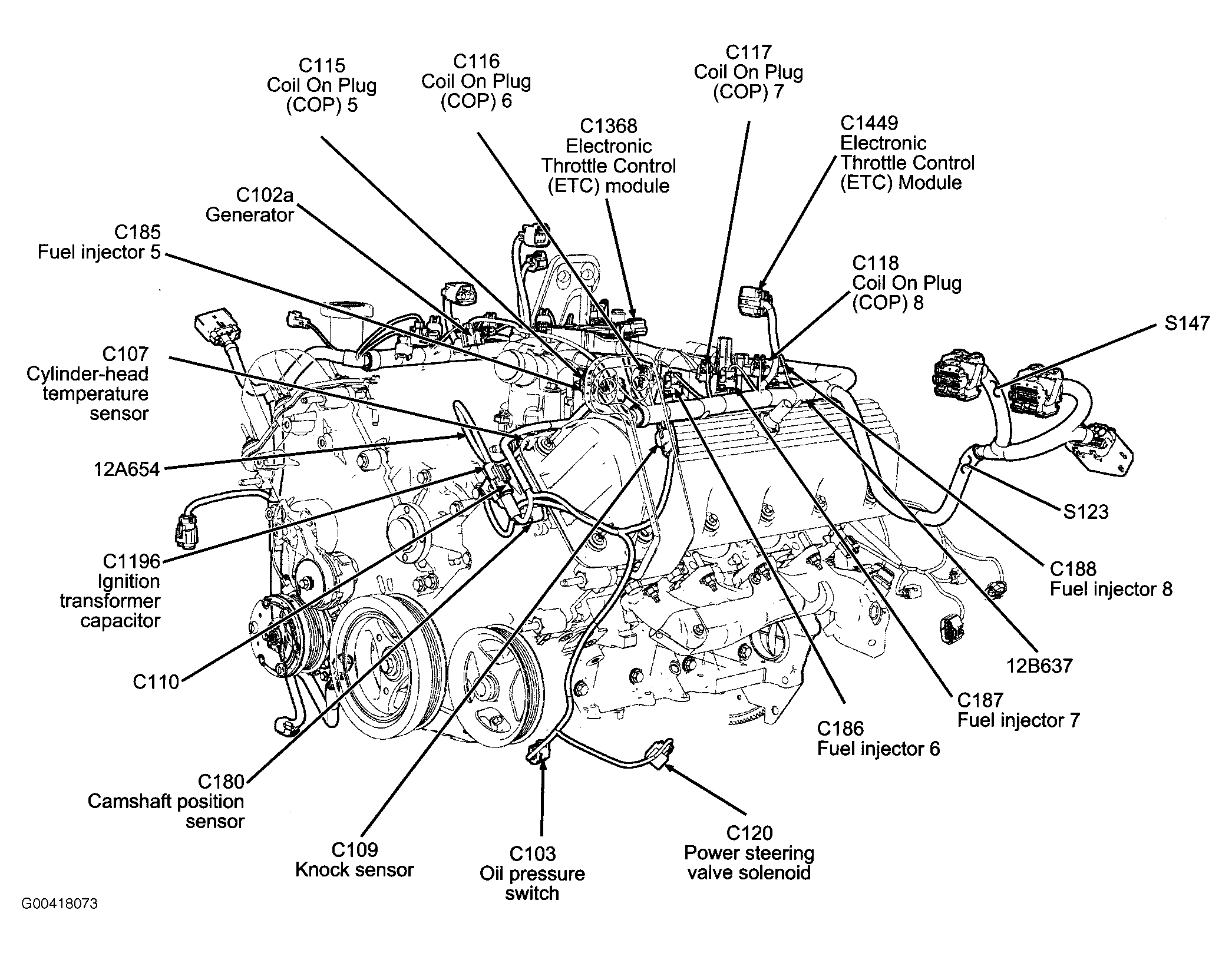

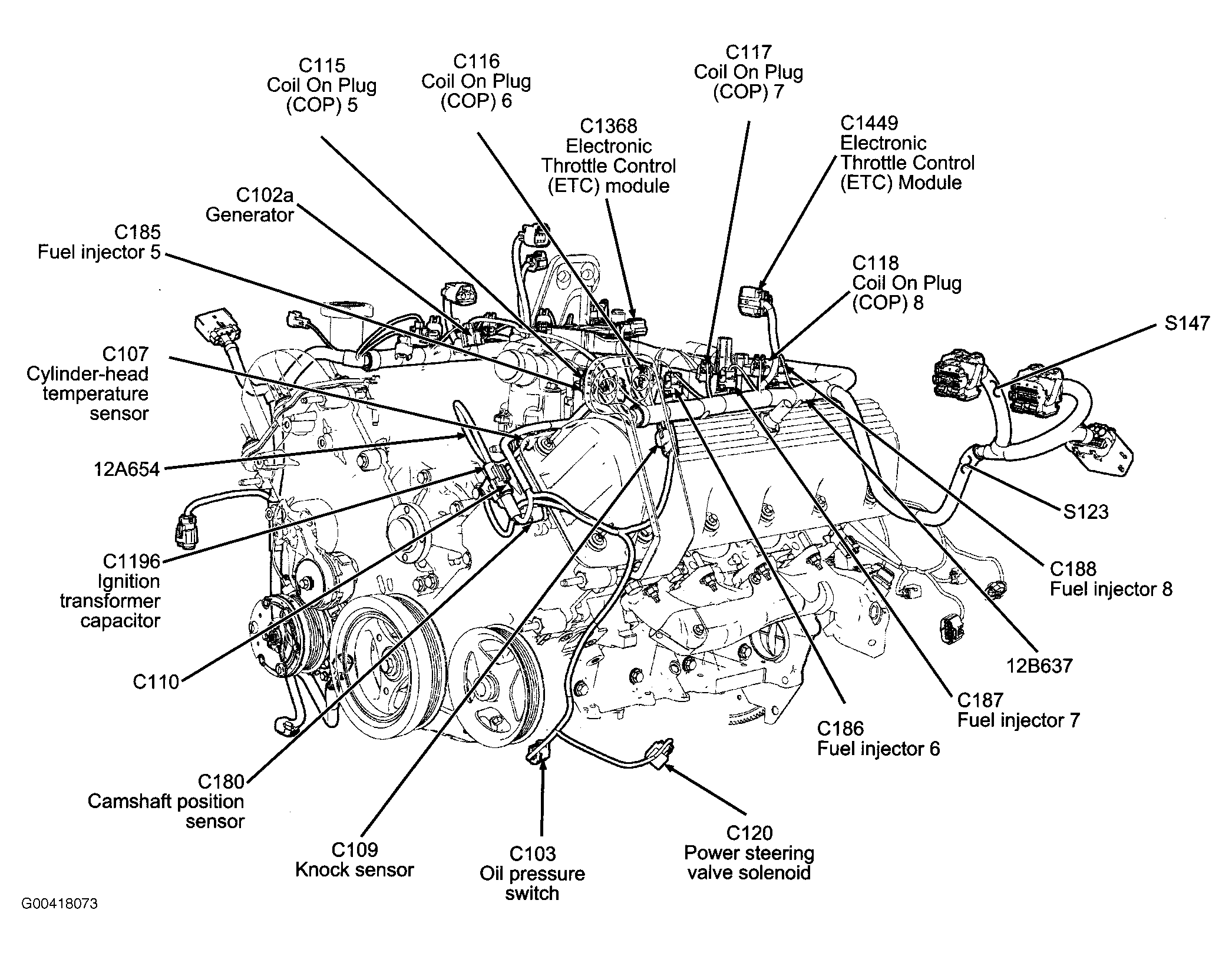

| Electronic Throttle Control (ETC) Module | Left rear of engine. See Figure. |
| Engine Cooling Fan Module | Left front of engine compartment. See Figure. |

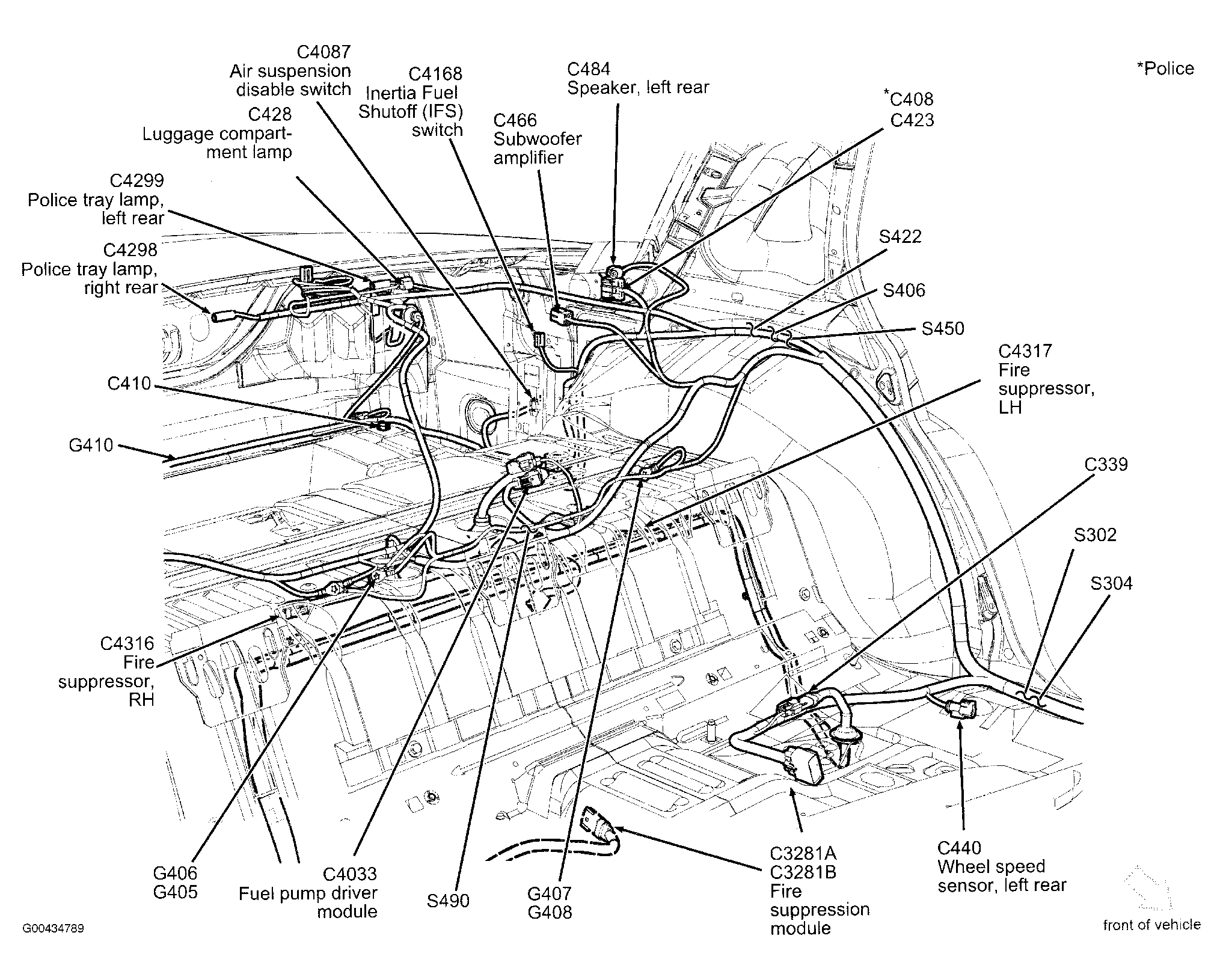

| Fire Suppression Module | Under rear seat. See Figure. |
| Front Blower Motor Speed Controller | At rear of engine compartment. See Figure. |

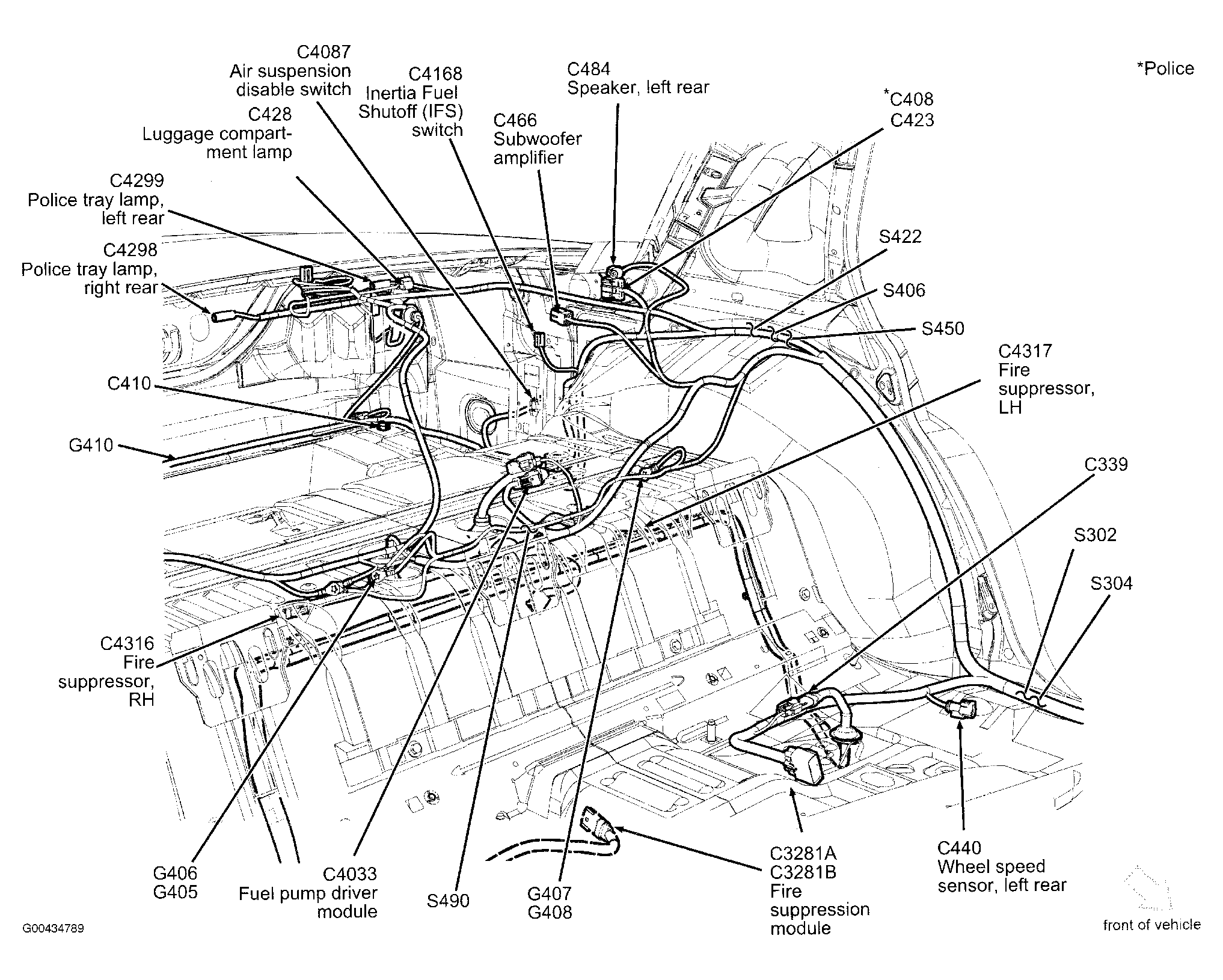

| Fuel Pump Driver Module | On left front side of luggage compartment. See Figure. |

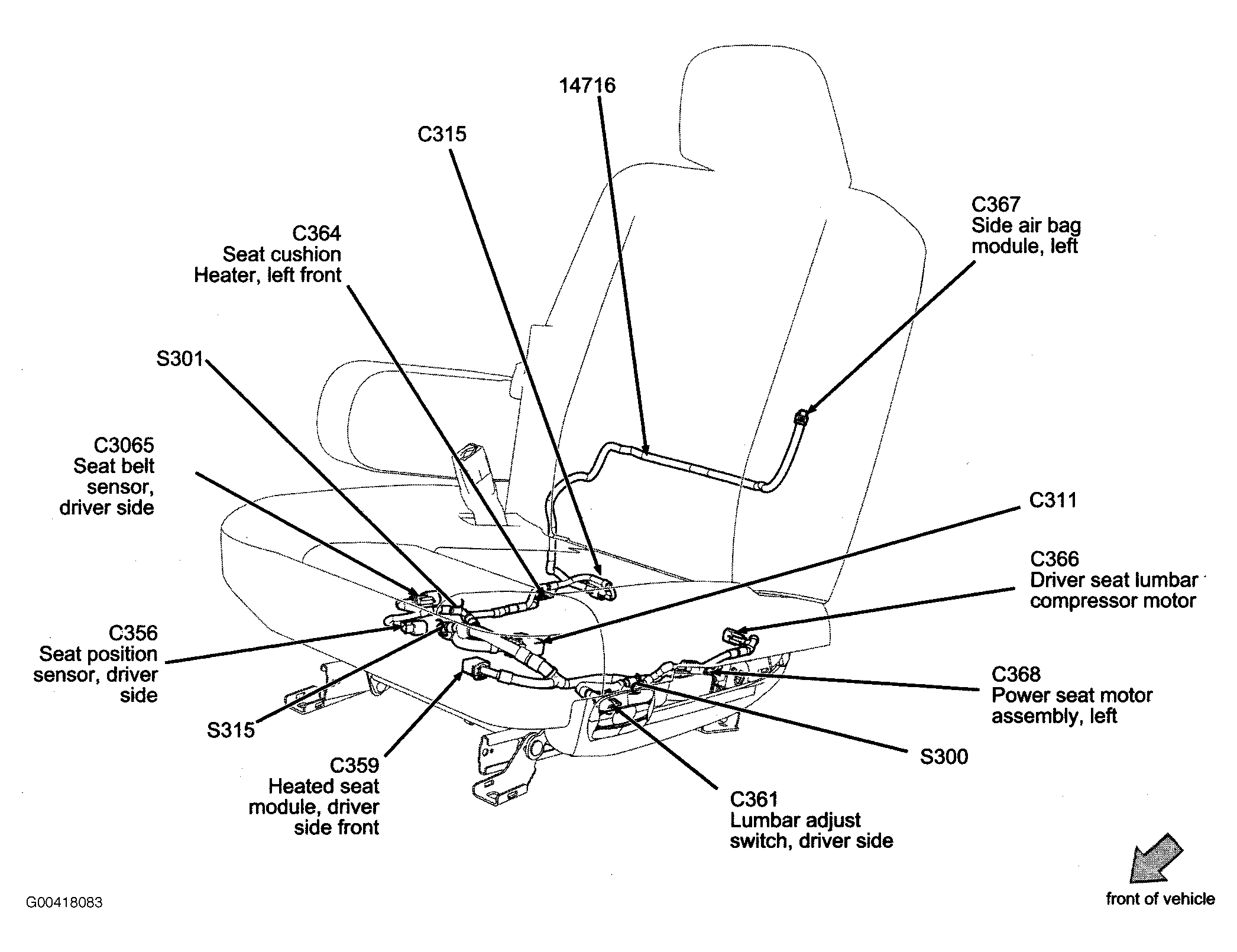

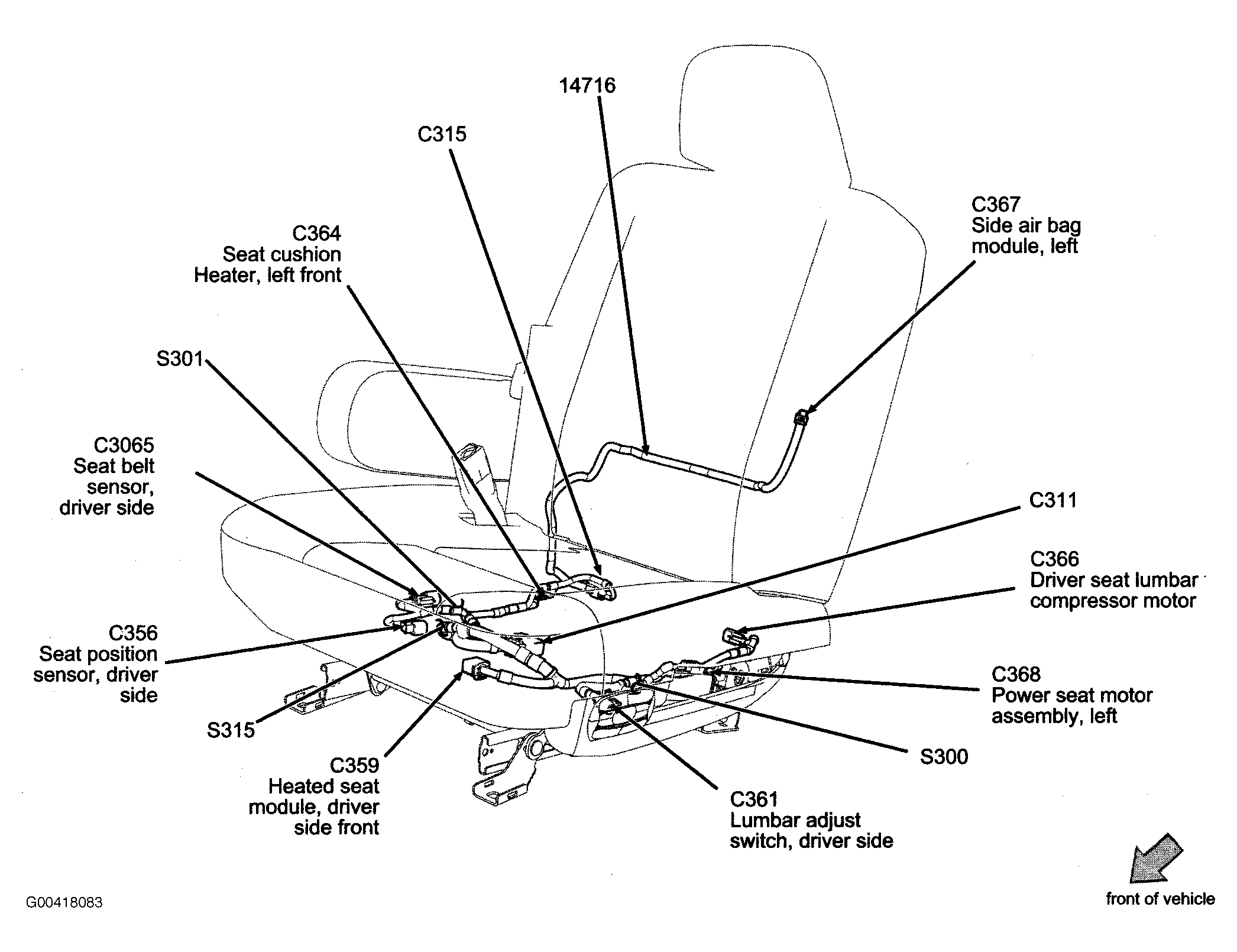

| Heated Seat Module (Driver Side Front) | Under driver seat. See Figure. |

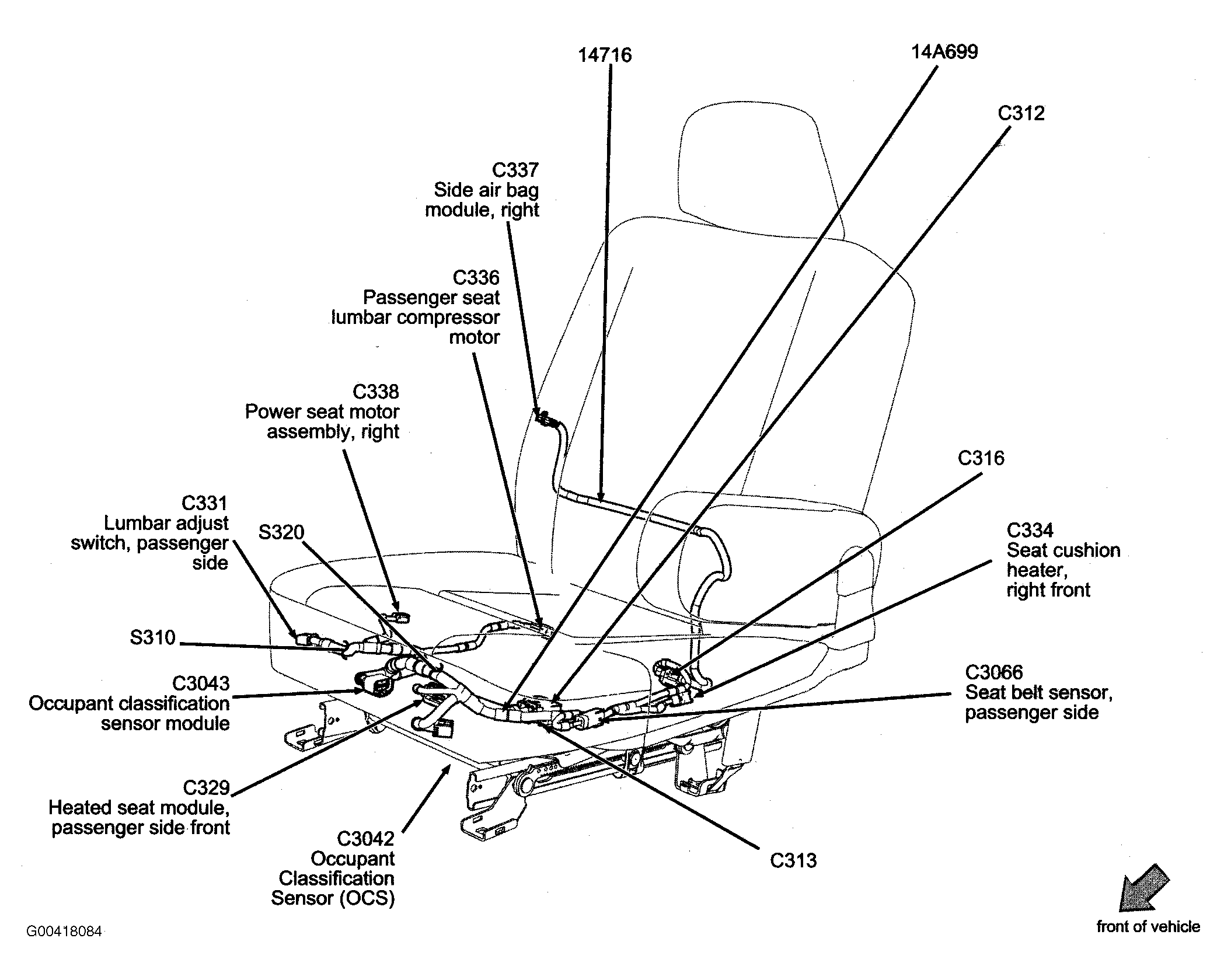

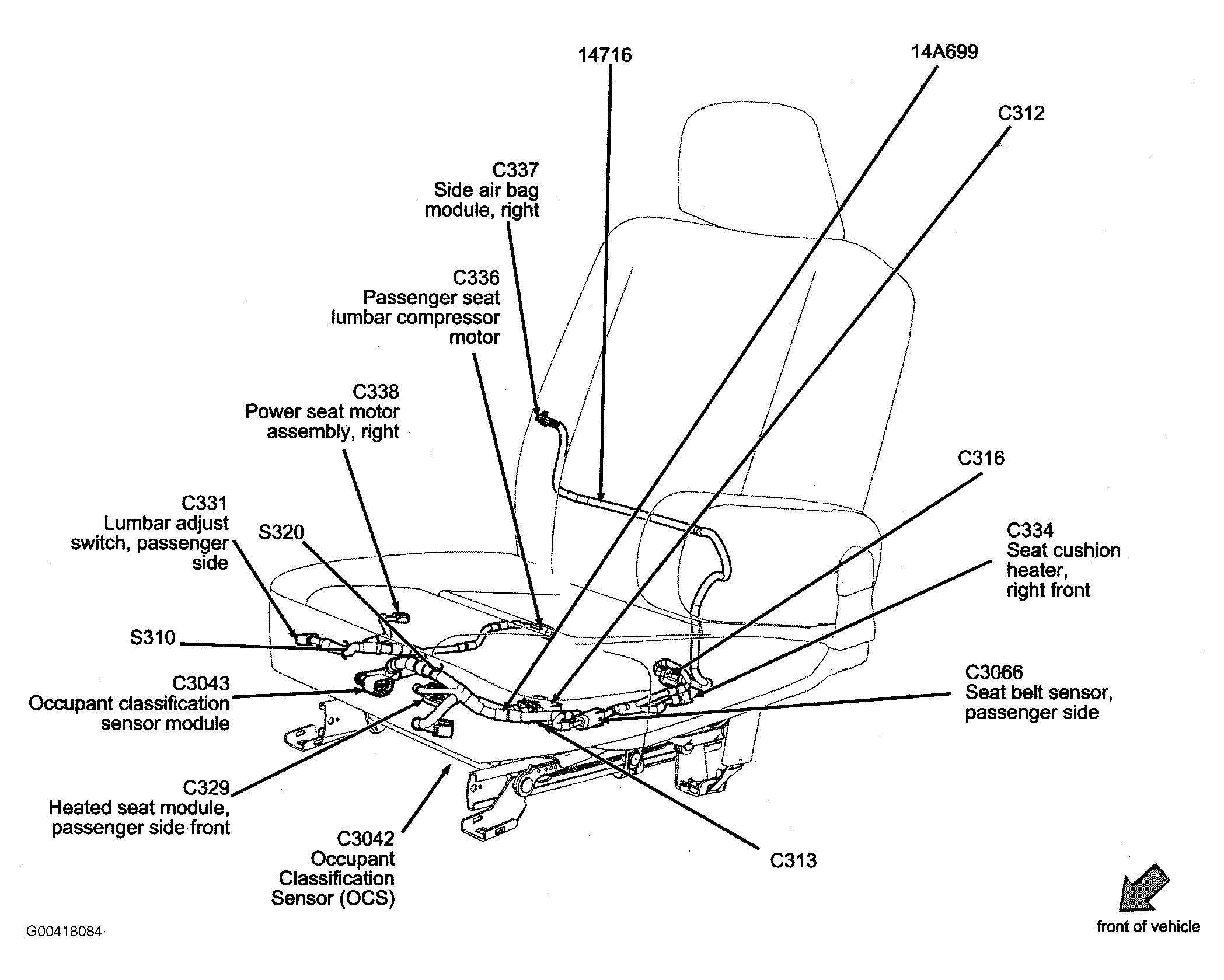

| Heated Seat Module (Passenger Side Front) | Under passenger seat. See Figure. |

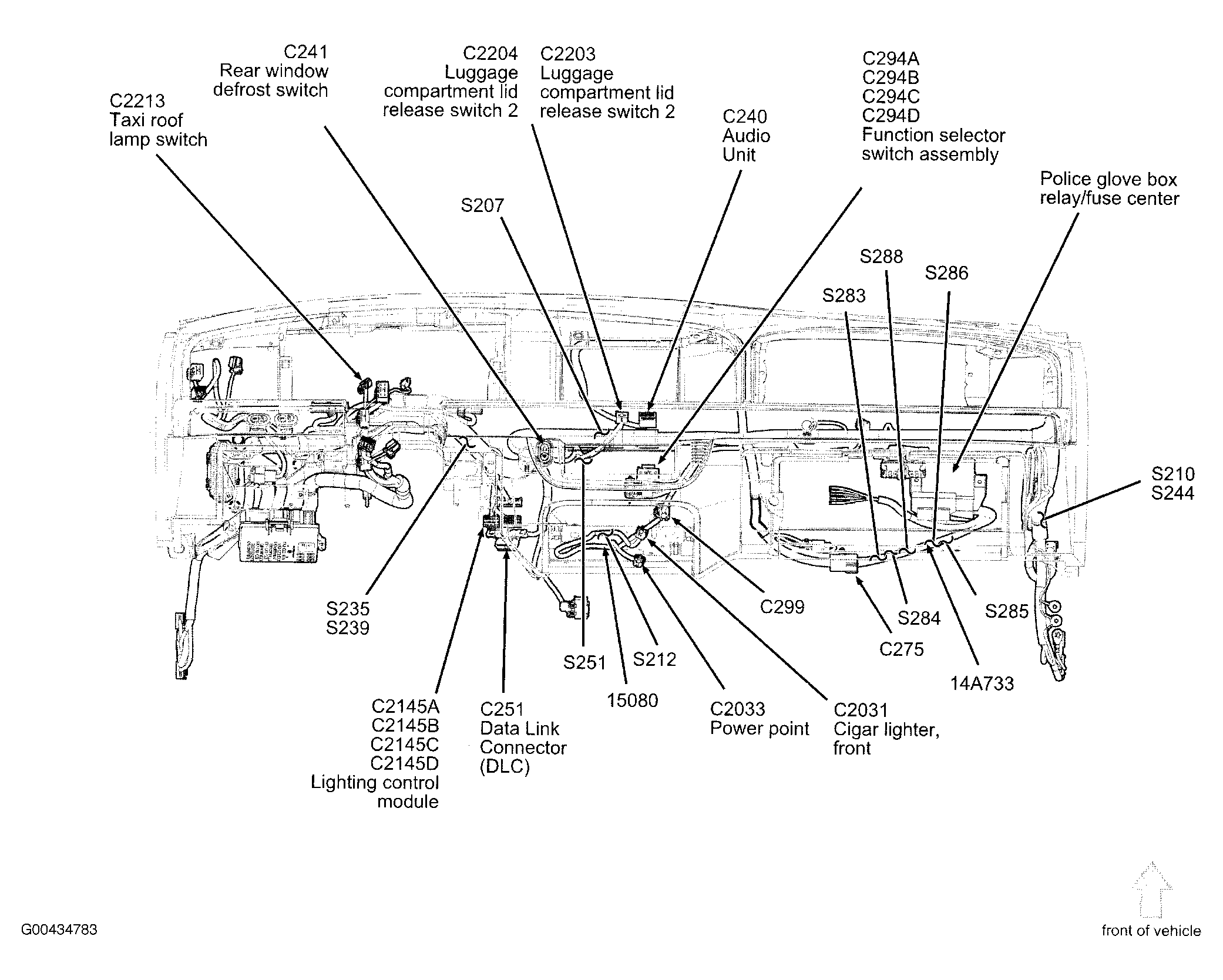

| Lighting Control Module | Under center of dash. See Figure. |
| Occupant Classification Sensor Module | Under passenger seat. See Figure. |

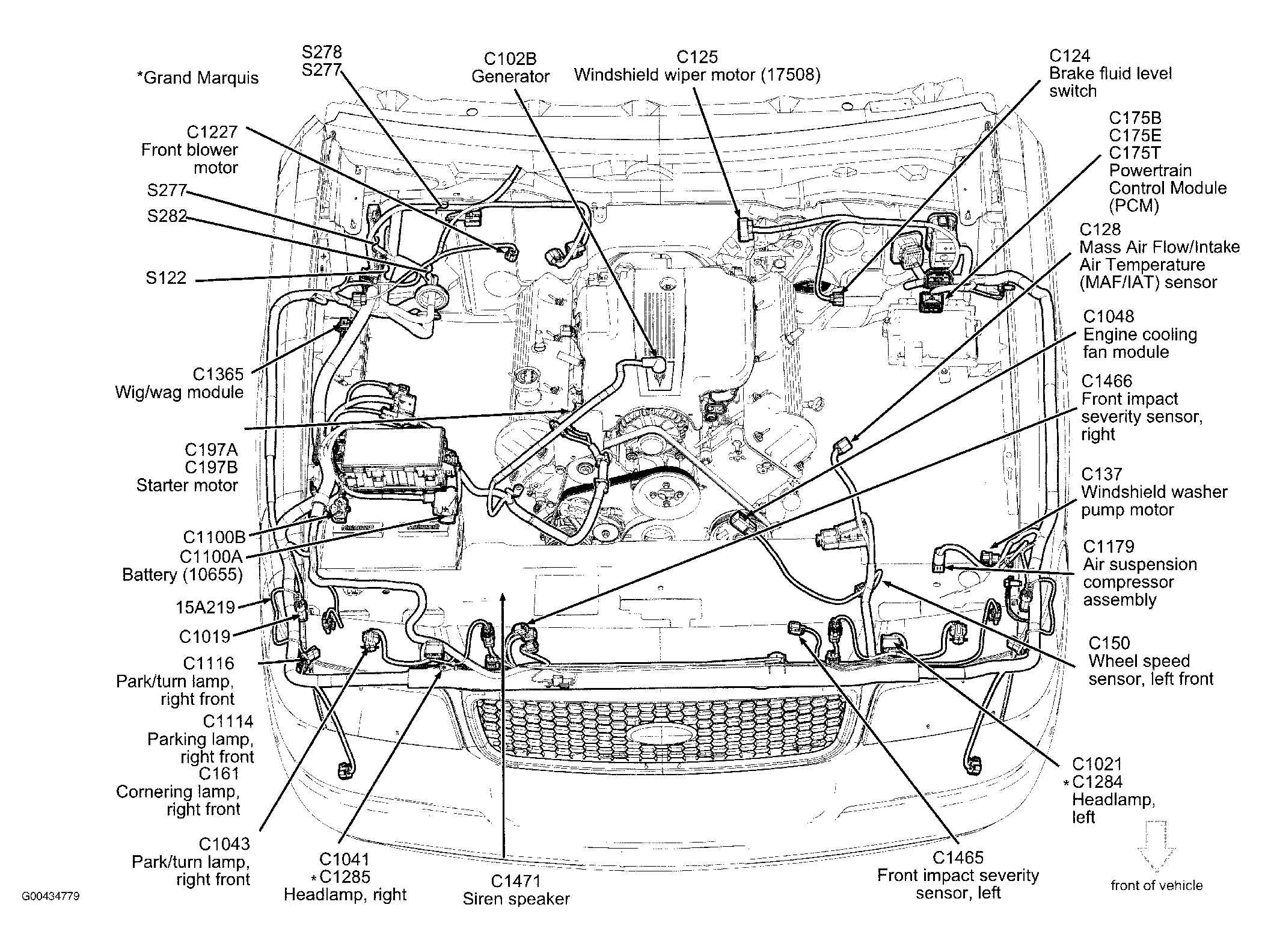

| Powertrain Control Module (PCM) | Left rear of engine compartment. See Figure. |
| Restraints Control Module | Below center of dash. See Figure. |

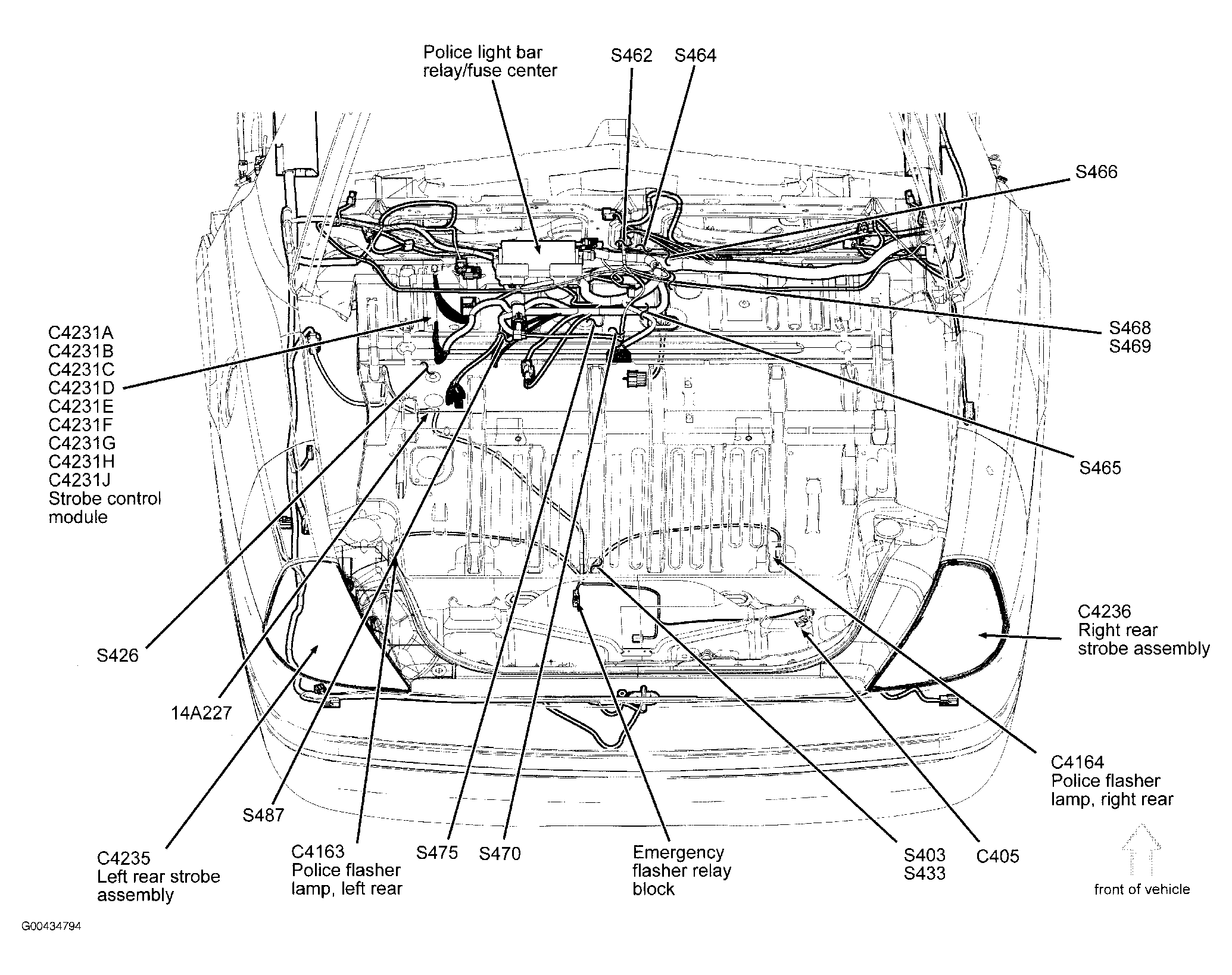

| Strobe Control Module | In luggage compartment. See Figure. |

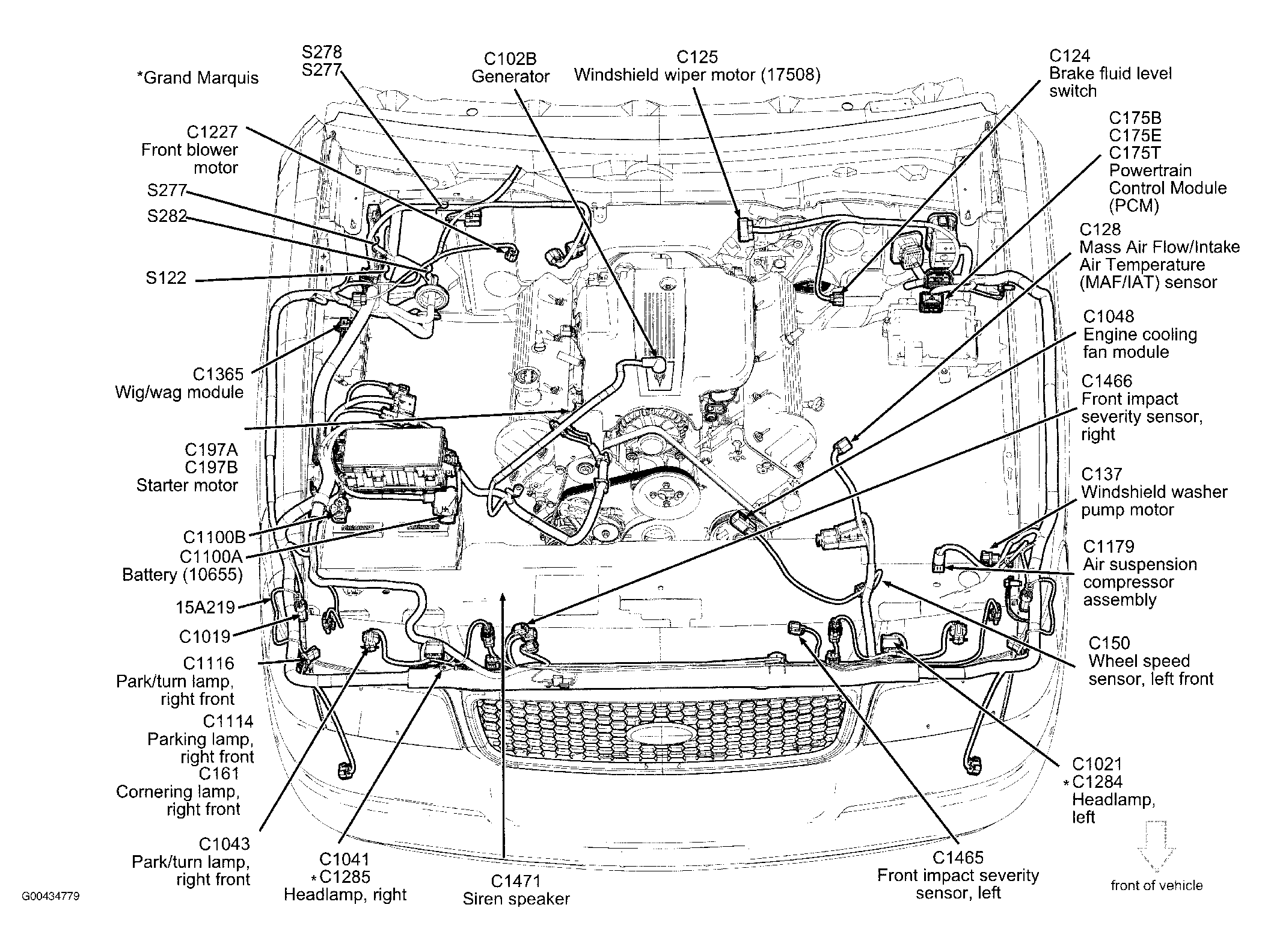

| Wig/Wag Module | Right side of engine compartment. See Figure. |
