Steering Wheel: Notes

Special Tools

Illustration	Tool Name	Tool Number
	Remover, Differential Bearing	205-116 (T77F-4220-B1) or equivalent

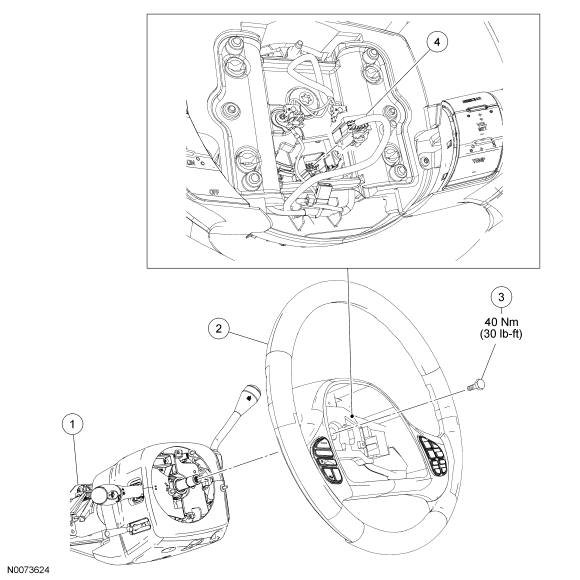

Fig 1: Exploded View Of Steering Wheel With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3C529	Steering column
2	3600	Steering wheel
3	W705317	Steering wheel bolt
4	-	Steering wheel switches electrical connector (part of 13B319)
