Main Control Valve Body: Assembly

  1. Install the valve body cover plate.
    1. Position the valve body cover plate gasket and cover plate.
    2. Loosely install the 2 guide pin bolts.
    3. Loosely install the bolts.
    2. Fig 1: Identifying Main Control Valve Body Cover Plate
    GF0003605Courtesy of FORD MOTOR CO.
  2. Tighten the bolts in the sequence shown.
    • Tighten to 10 Nm (89 lb-in).
    3. Fig 2: Main Control Valve Body Cover Plate Bolt Tightening Sequence
    GF0003606Courtesy of FORD MOTOR CO.
  3. Install the 8 coasting booster valve shuttle balls.
    Item Part Number Description
    1 7E195 Check ball (B9) located in the forward clutch circuit near the 3-4 shift valve
    2 7E195 Check ball (B2) located in the direct clutch circuit near the 2-3 backout valve
    3 7E195 Check ball (B3) located in the overdrive and forward clutch circuits near the 1-2 shift valve
    4 7E195 Check ball (B4) located in the reverse circuit near the orifice 1
    5 7E195 Check ball (B5) located between the reverse, LS modulator and the low reverse servo circuits
    6 7E195 Check ball (B6) located between the L, 2, 3, 4 and the torque converter clutch (TCC) circuits
    7 7E195 Check ball (B7) located between the L, 2, 3, 4 and the intermediate clutch circuits
    8 7E195 Check ball (B8) located between the forward clutch and the 23 BP circuits

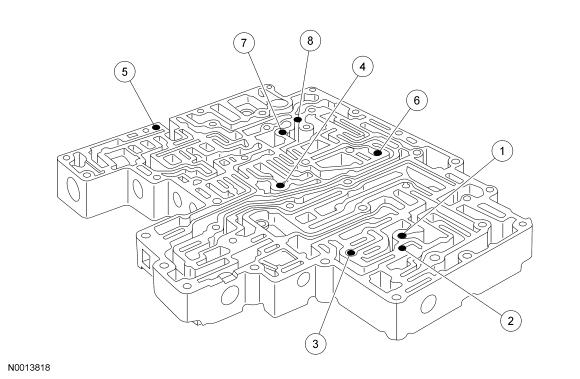

    4. Fig 3: Locating Coasting Booster Valve Shuttle Balls
    GF0003602Courtesy of FORD MOTOR CO.
  4. Install the converter drain back valve and solenoid pressure supply screen.

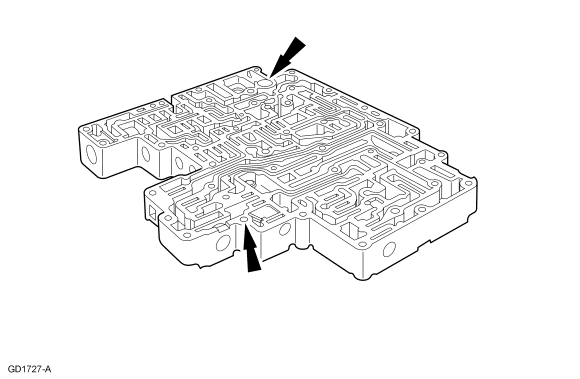

    5. Fig 4: Locating Converter Drain Back Valve And Solenoid Pressure Supply Screen
    GF0003603Courtesy of FORD MOTOR CO.
  5. Install the separator plate and gaskets.
    6. Fig 5: Locating Separator Plate And Gaskets
    GF0003601Courtesy of FORD MOTOR CO.
  6. Install the 2 reinforcement plates and bolts.
    • Tighten to 10 Nm (89 lb-in).
    7. Fig 6: Locating Reinforcement Plate And Bolts
    GF0003600Courtesy of FORD MOTOR CO.
    NOTE: Inspect the shift solenoid O-rings and TCC solenoid O-rings for damage.
  7. Install the shift solenoid.
    1. Position the TCC solenoid.
    2. Position the shift solenoid.
    3. Install the bolt.
      • Tighten to 10 Nm (89 lb-in).
    8. Fig 7: Identifying Shift Solenoid
    GF0003607Courtesy of FORD MOTOR CO.
