Main Control Valve Body: Disassembly

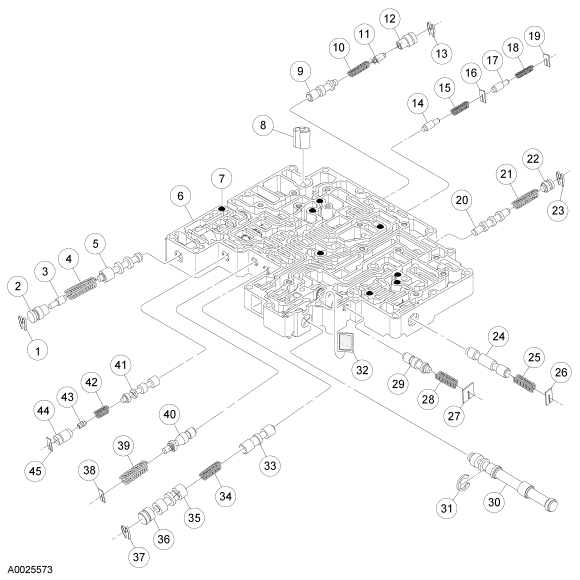

Fig 1: Exploded View Of Main Control Valve Body
GF0003598Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Valve plug retainer (part of 7A100)
2 - Main pressure booster valve sleeve (part of 7A100)
3 - Main pressure booster valve (part of 7A100)
4 - Main pressure regulator valve spring (part of 7A100)
5 - Main regulator valve (part of 7A100)
6 7A100 Main control valve body assembly
7 7E195 Check ball (8 required)
8 7H171 Converter drain back valve
9 - Pressure regulator valve (part of 7A100)
10 - Pressure regulator valve spring (part of 7A100)
11 - Regulator boost plunger (part of 7A100)
12 - Regulator boost sleeve (part of 7A100)
13 - Valve retainer (part of 7A100)
14 - Capacity modulator valve (part of 7A100)
15 - Capacity modulator valve spring (part of 7A100)
16 - Spring retaining plate (part of 7A100)
17 - Capacity modulator valve (part of 7A100)
18 - Capacity modulator valve spring (part of 7A100)
19 - Spring retaining plate (part of 7A100)
20 - 3-4 shift valve (part of 7A100)
21 - 3-4 shift valve spring (part of 7A100)
22 - Valve retainer plug (part of 7A100)
23 - Valve plug retainer (part of 7A100)
24 - 2-3 backout valve (part of 7A100)
25 - 2-3 backout valve spring (part of 7A100)
26 - Spring retaining plate (part of 7A100)
27 - Spring retaining plate (part of 7A100)
28 - Pressure regulator valve spring (part of 7A100)
29 - Pressure regulator valve (part of 7A100)
30 - Control manual valve (part of 7A100)
31 - Retaining ring (part of 7A100)
32 - Solenoid screen
33 - 1-2 shift valve (part of 7A100)
34 - 2-3 shift valve spring (part of 7A100)
35 - 2-3 valve (part of 7A100)
36 - Valve retaining plug (part of 7A100)
37 - Valve plug retainer (part of 7A100)
38 - Spring retaining plate (part of 7A100)
39 - Pressure regulator valve spring (part of 7A100)
40 - Pressure regulator valve (part of 7A100)
41 - Bypass clutch control valve (part of 7A100)
42 - Bypass clutch control valve spring (part of 7A100)
43 - Bypass clutch control valve plunger (part of 7A100)
44 - Bypass clutch control plunger sleeve (part of 7A100)
45 - Control valve plate (part of 7A100)
  1. Remove the torque converter clutch (TCC) solenoid and the shift solenoid.
    1. Remove the bolt.
    2. Remove the shift solenoid.
    3. Remove the TCC solenoid.
  2. Fig 2: Identifying Torque Converter Clutch (TCC) Solenoid & Shift Solenoid
    GF0003599Courtesy of FORD MOTOR CO.
  3. Remove the bolts and the 2 reinforcement plates.
  4. Fig 3: Locating Reinforcement Plate And Bolts
    GF0003600Courtesy of FORD MOTOR CO.
  5. Remove the separator plate and discard the gaskets.
  6. Fig 4: Locating Separator Plate And Gaskets
    GF0003601Courtesy of FORD MOTOR CO.
    NOTE: Note the location of the 8 coasting booster valve shuttle balls for assembly.
  7. Remove the 8 coasting booster valve shuttle balls.
    Item Part Number Description
    1 7E195 Check ball (B9) located in the forward clutch circuit near the 3-4 shift valve
    2 7E195 Check ball (B2) located in the direct clutch circuit near the 2-3 backout valve
    3 7E195 Check ball (B3) located in the overdrive and forward clutch circuits near the 1-2 shift valve
    4 7E195 Check ball (B4) located in the reverse circuit near the orifice 1
    5 7E195 Check ball (B5) located between the reverse, LS modulator and the low reverse servo circuits
    6 7E195 Check ball (B6) located between the L, 2, 3, 4 and the torque converter clutch (TCC) circuits
    7 7E195 Check ball (B7) located between the L, 2, 3, 4 and the intermediate clutch circuits
    8 7E195 Check ball (B8) located between the forward clutch and the 23 BP circuits
  8. Fig 5: Locating Coasting Booster Valve Shuttle Balls
    GF0003602Courtesy of FORD MOTOR CO.
  9. Remove the converter drain back valve and solenoid pressure supply screen.
  10. Fig 6: Locating Converter Drain Back Valve And Solenoid Pressure Supply Screen
    GF0003603Courtesy of FORD MOTOR CO.
  11. Remove the main control valve body cover plate.
    1. Remove the 13 bolts.
    2. Remove the valve body cover plate and gasket.
  12. Fig 7: Main Control Valve Body Cover Plate & Bolts
    GF0012383Courtesy of FORD MOTOR CO.
