Reverse Clutch: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Dial Indicator Gauge with Holding Fixture | 100-002 (TOOL-4201-C) | |
| Compressor, Clutch Spring | 307-015 (T65L-77515-A) | |
| Protector, Transmission Reverse Clutch Outer Fluid Seal | 307-424 | |
| Protector, Transmission Reverse Clutch Inner Fluid Seal | 307-425 | |
| Compressor, Clutch Spring | 307-086 (T80L-77405-A) |
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

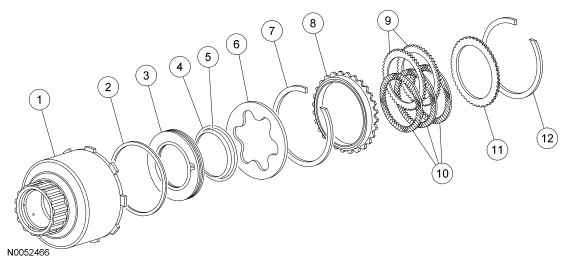

| Item | Part Number | Description |
|---|---|---|
| 1 | 7D044 | Reverse clutch drum |
| 2 | 7D403 | Reverse clutch piston outer seal |
| 3 | 7D402 | Reverse clutch piston |
| 4 | 7D404 | Reverse clutch piston inner seal |
| 5 | 7D256 | Reverse clutch piston spring pressure ring |
| 6 | 7B070 | Reverse clutch piston spring |
| 7 | 7A577 | Reverse clutch piston spring ring |
| 8 | 7B066 | Reverse clutch front pressure plate |
| 9 | 7B442 | Reverse clutch external spline plates (steel) |
| 10 | 7B164 | Reverse clutch internal spline plates (friction) |
| 11 | 7B066 | Reverse clutch rear pressure plate |
