Digital Transmission Range (TR) Sensor: Notes

Special Tools

Illustration Tool Name Tool Number
GF0000909
 Alignment Gauge, TR Sensor 307-351 (T97L-70010-A)

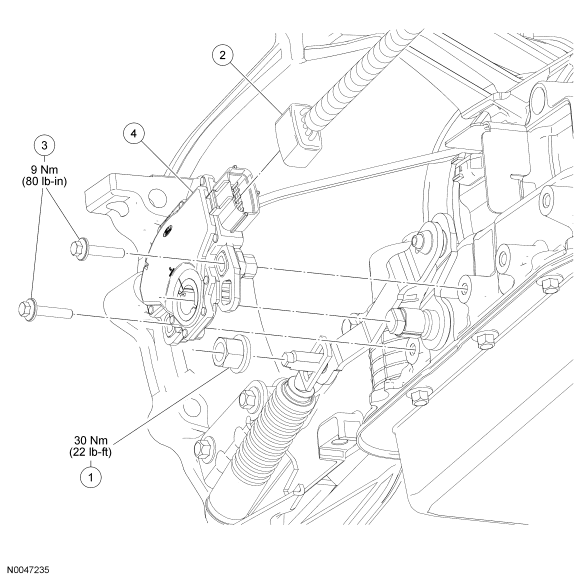

Fig 1: Exploded View Of Digital Transmission Range TR Sensor With Torque Specifications
GF0014075Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N808356 Selector lever cable nut
2 - Transmission range (TR) sensor electrical connector
3 N806933 TR sensor bolts
4 7F293 TR sensor
