Output Shaft Speed (OSS) Sensor: Notes

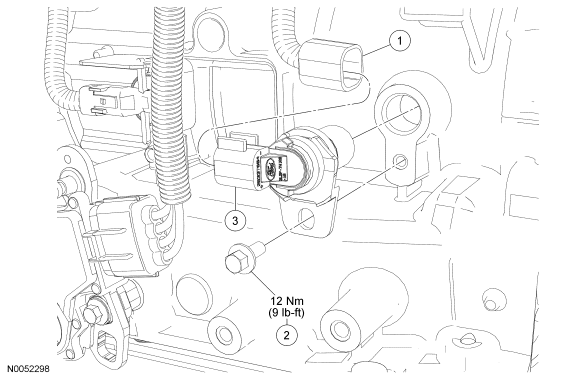

Fig 1: Exploded View Of Output Shaft Speed OSS Sensor With Torque Specifications
GF0014085Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Output shaft speed (OSS) sensor electrical connector
2 N605771 OSS sensor bolt
3 7H103 OSS sensor
