Transmission Insulator and Retainer: Notes

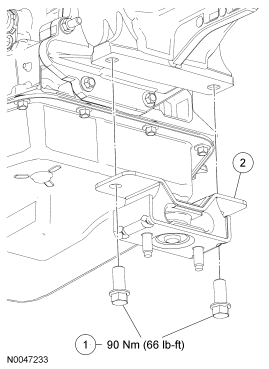

Fig 1: Exploded View Of Transmission Insulator and Retainer With Torque Specifications
GF0014076Courtesy of FORD MOTOR CO.
Item Part Number Description
1 387174 Transmission insulator bolts
2 6D091 Transmission insulator
