Safety Belt Retractor - Front: Notes

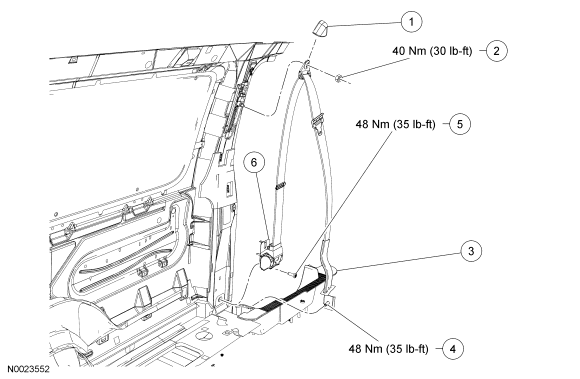

Fig 1: Exploded View Of Front Safety Belt Retractor With Torque Specifications
GF0011503Courtesy of FORD MOTOR CO.
Item Part Number Description
1 60262 D-ring cover
2 W520113 Nut, D-ring
3 781300 Front door scuff plate
4 - Bolt, safety belt anchor (part of 611B08 RH/611B09 LH)
5 - Bolt, safety belt retractor (part of 611B08 RH/611B09 LH)
6 611B08 RH/ 611B09 LH Safety belt retractor assembly
