Cruise Control Switch: Service and Repair

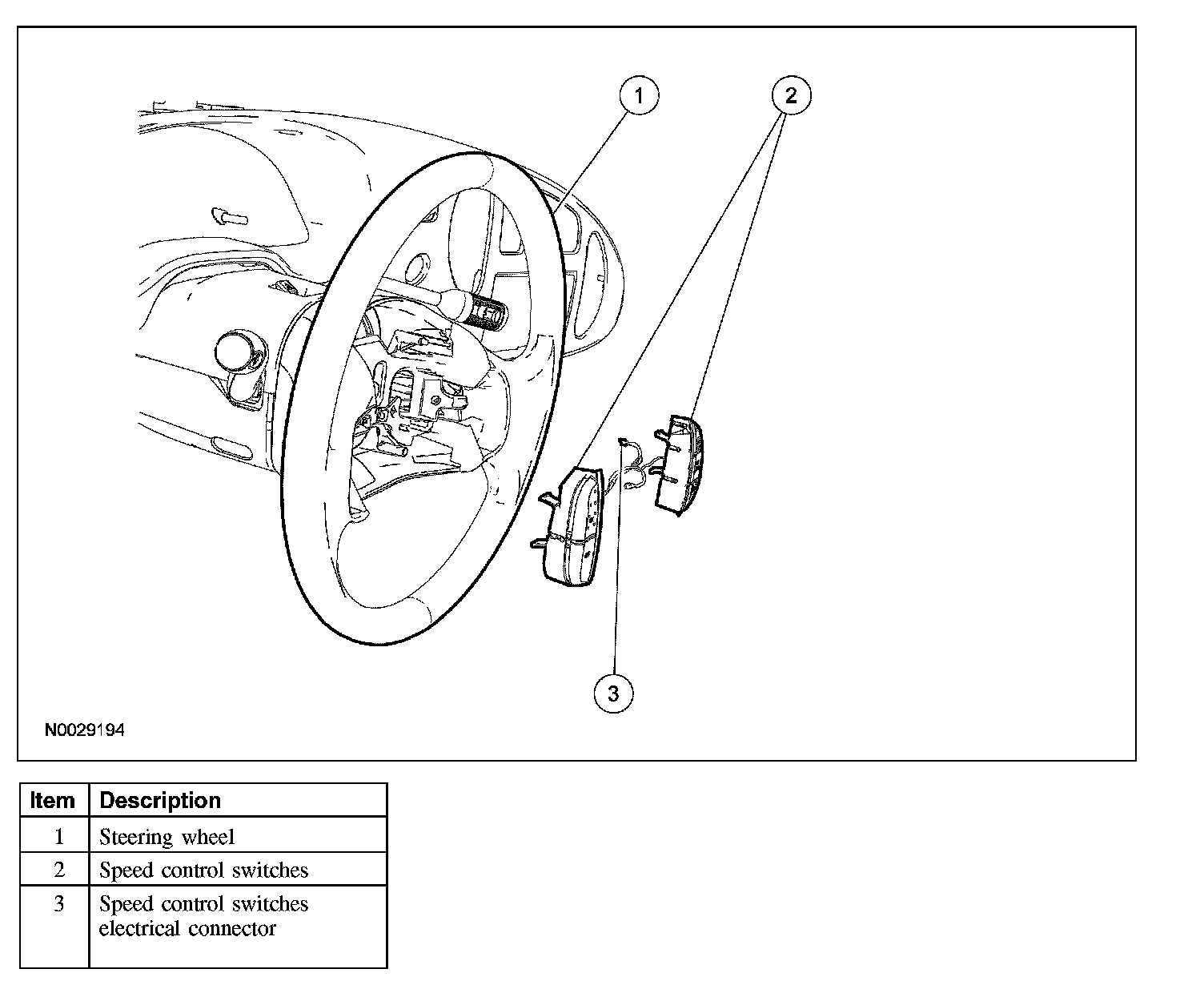

SPEED CONTROL SWITCH







Removal and Installation
1. Remove the driver air bag module.
2. Remove the speed control switches.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
