Drive/Propeller Shaft

Driveshaft - Exploded View

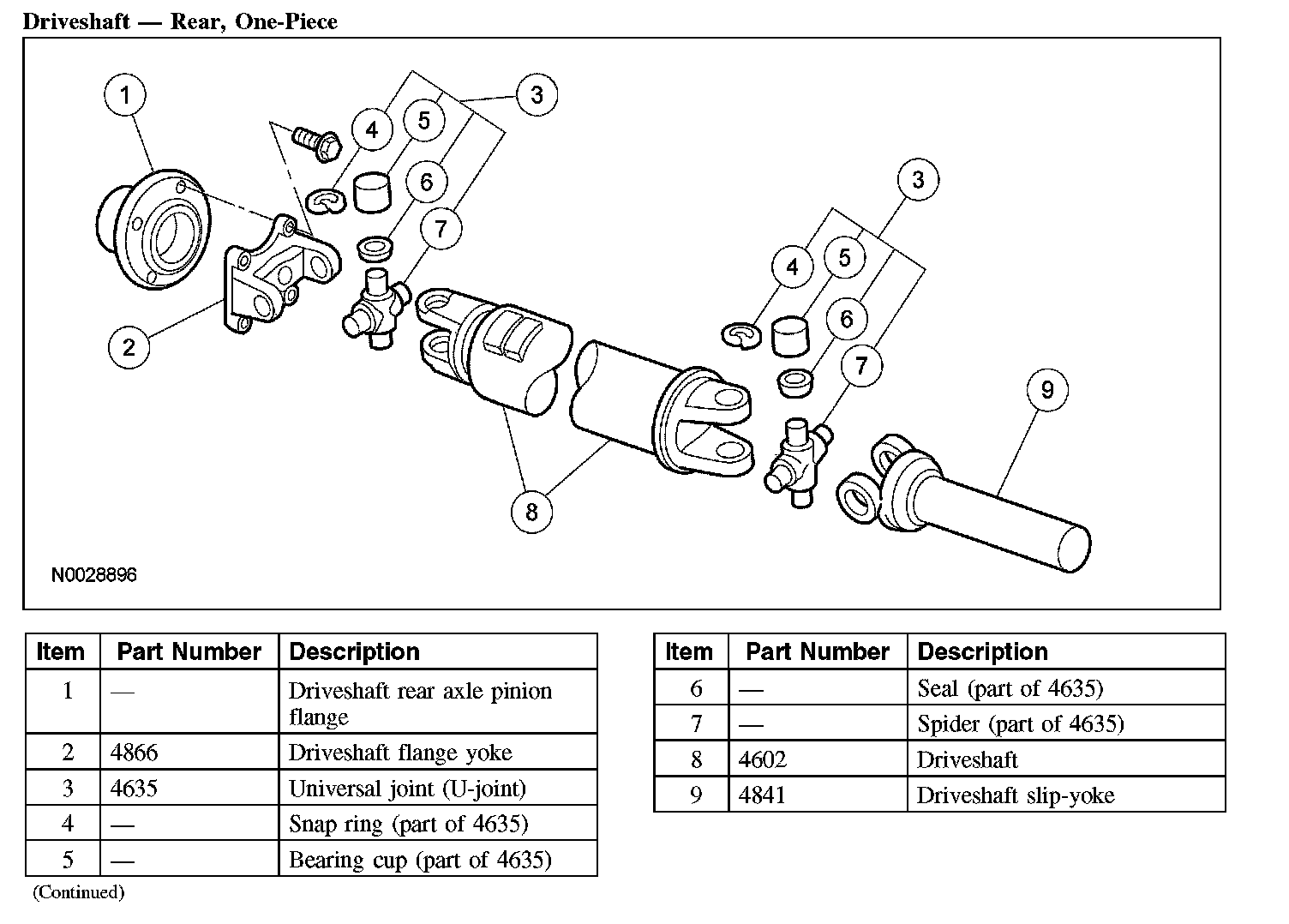

Driveshaft - Rear, One-Piece:

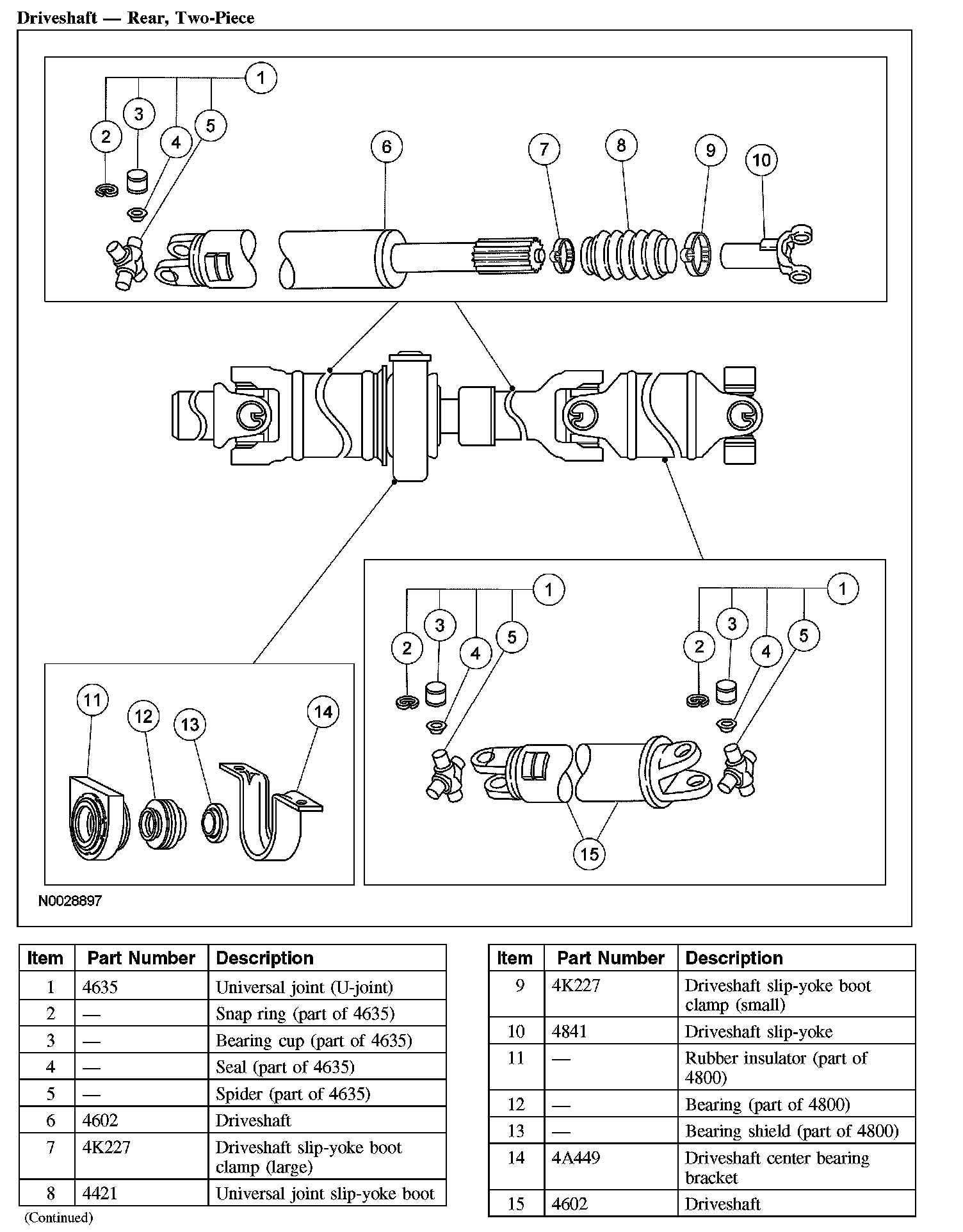

Driveshaft - Rear, Two-Piece:





1. Driveshafts differ in length, diameter, material, number of pieces and the type of slip yokes to accommodate various wheel bases and powertrain combinations.
