Refrigerant Pressure Sensor / Switch: Service and Repair

AIR CONDITIONING (A/C) CYCLING SWITCH

Removal and Installation

Vehicles with 4.6L, 5.4L or 6.8L engine
1. Disconnect the battery.
2. Remove the battery.

All vehicles

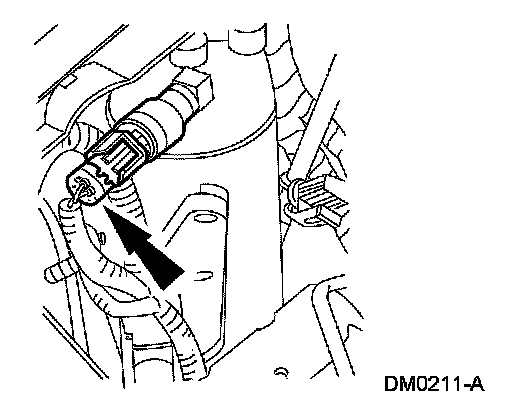

3. Disconnect the A/C cycling switch electrical connector.

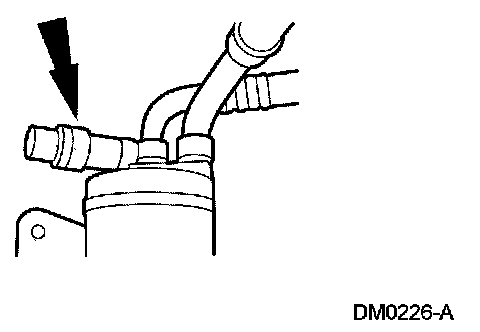

4. Remove the A/C cycling switch.
5. To install, reverse the removal procedure.
- Install a new O-ring seal.
