Test F: Temperature Control Is Inoperative/Does Not Operate Correctly

PINPOINT TEST F: TEMPERATURE CONTROL IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

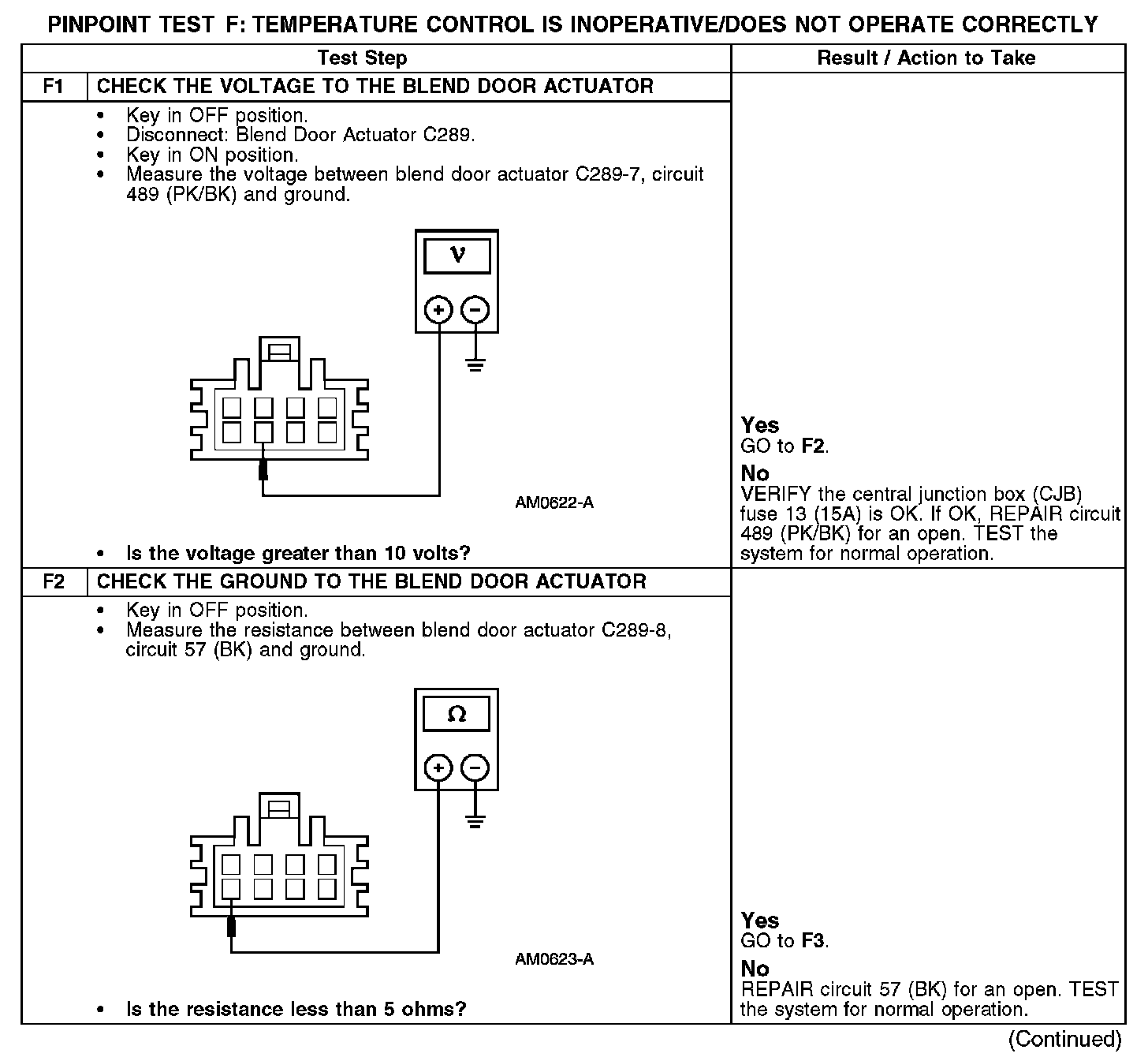

F1-F2:

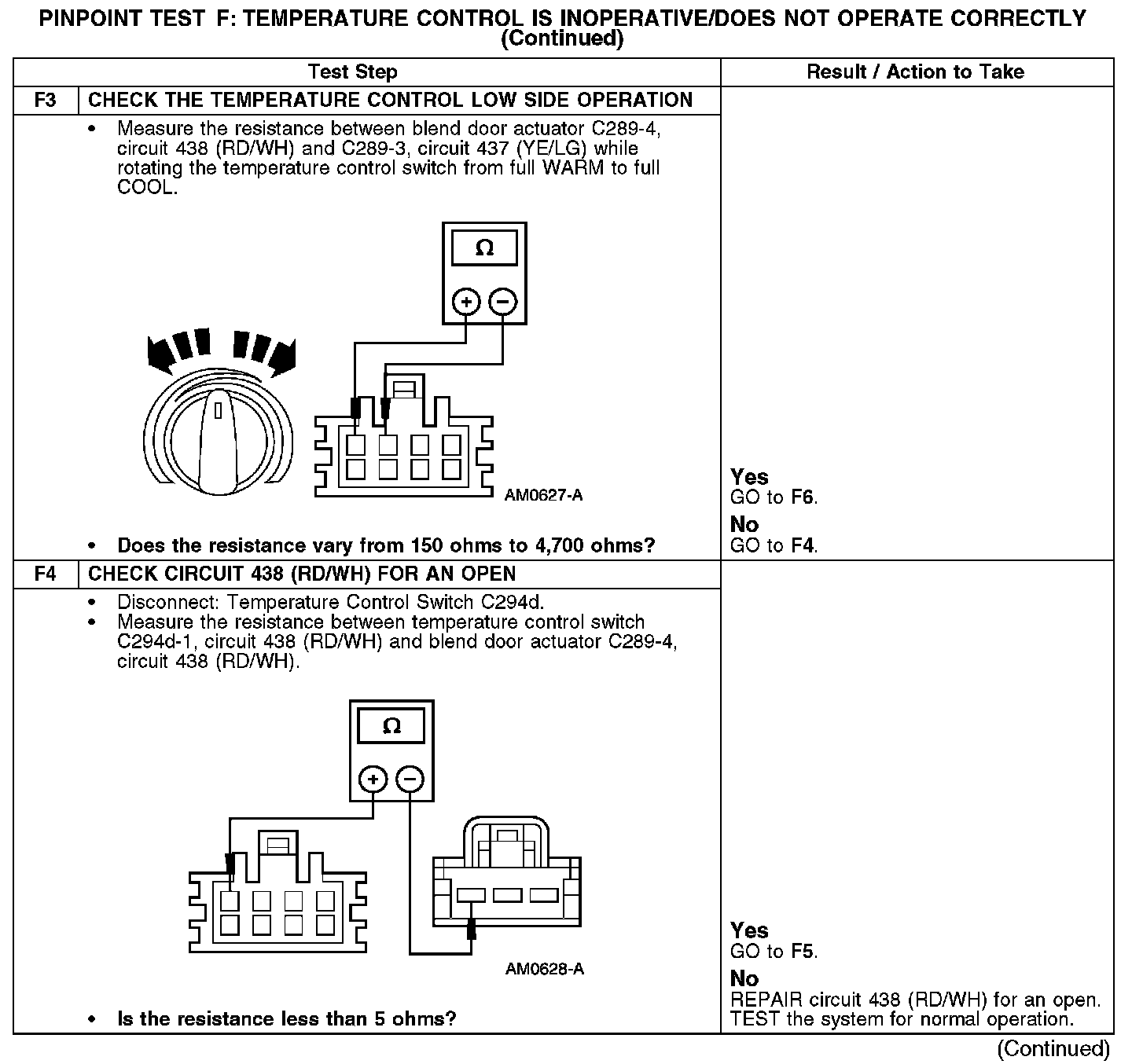

F3-F4:

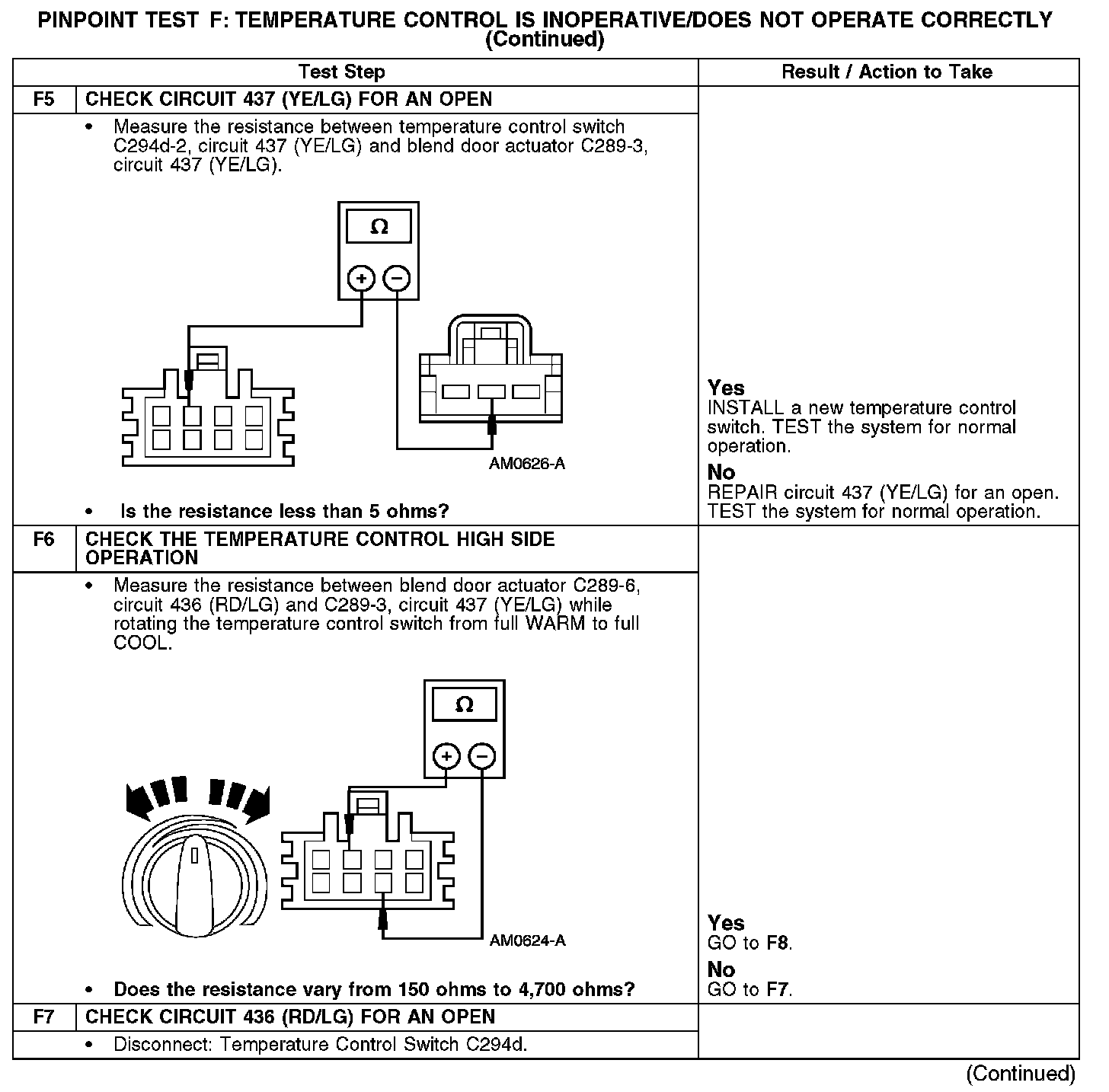

F5-F7:

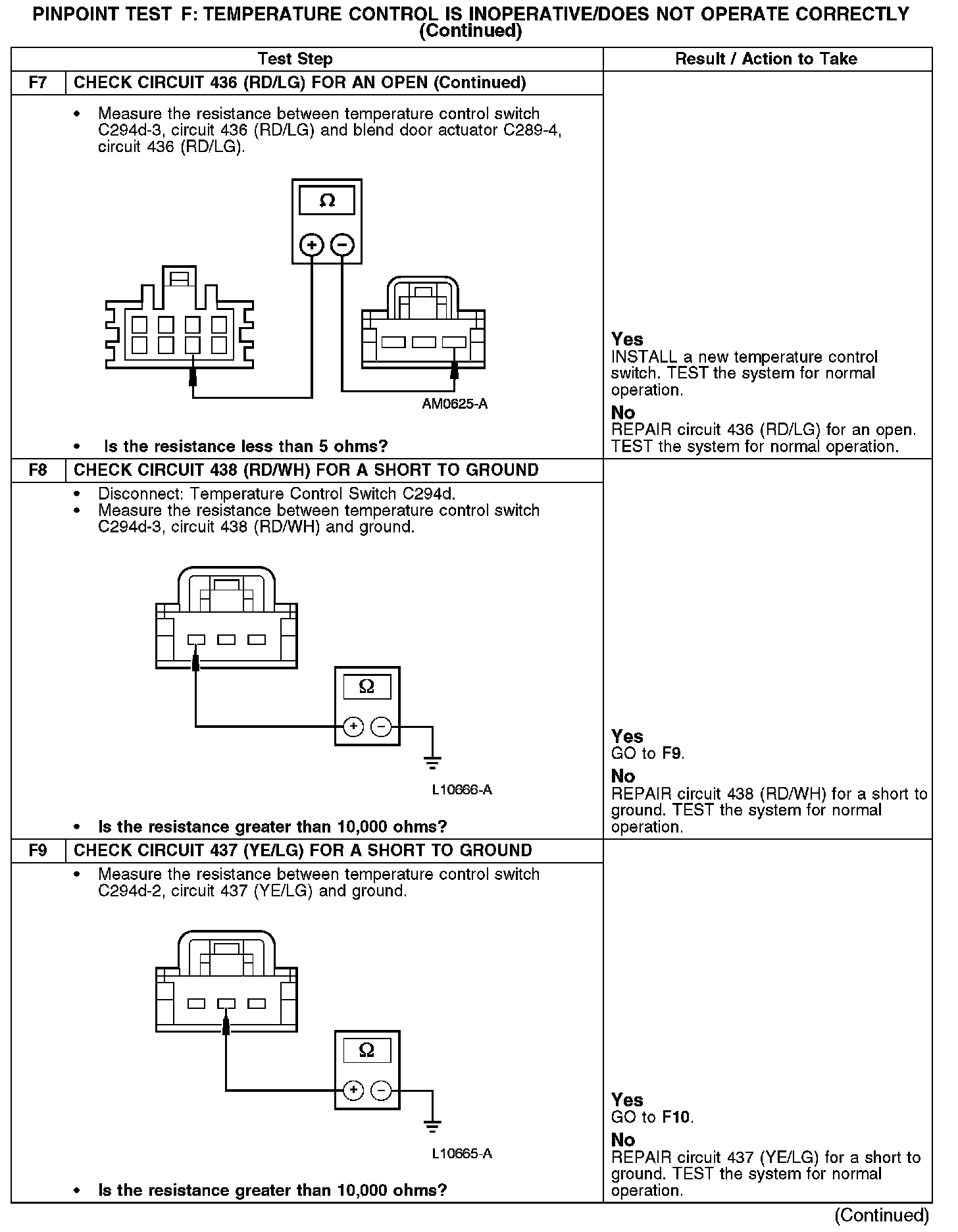

F7-F9:

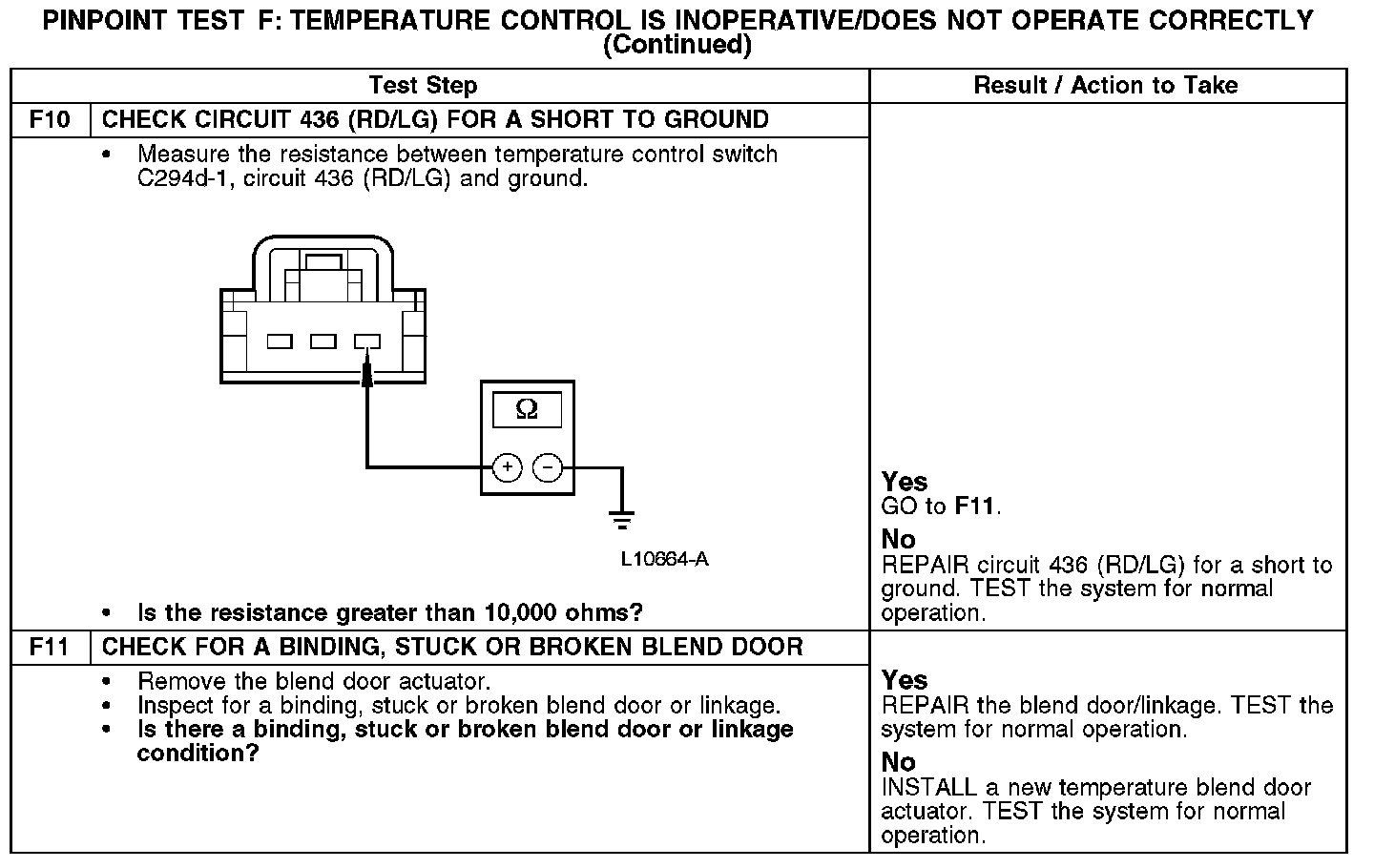

F10-F11:

Normal Operation
Under normal operation, the temperature blend door actuator is supplied voltage on circuit 489 (PK/BK) and ground on circuit 57 (BK). As the temperature selection changes it varies the voltage on circuit 437 (YE/LG) to the temperature blend door actuator. The temperature control potentiometer receives reference voltage from the temperature blend door actuator through circuit 436 (RD/LG). Ground for the temperature control potentiometer is supplied from the temperature blend door actuator through circuit 438 (RD/WH).

Possible Causes
- Fuse(s)
- An open, short to voltage, ground or together in circuits 57 (BK), 436 (RD/LG), 437 (YE/LG), 438 (RD/WH) or 489 (PK/BK)
- Temperature blend door actuator
- Temperature control potentiometer
- Stuck or bound linkage or door
