System Specifications

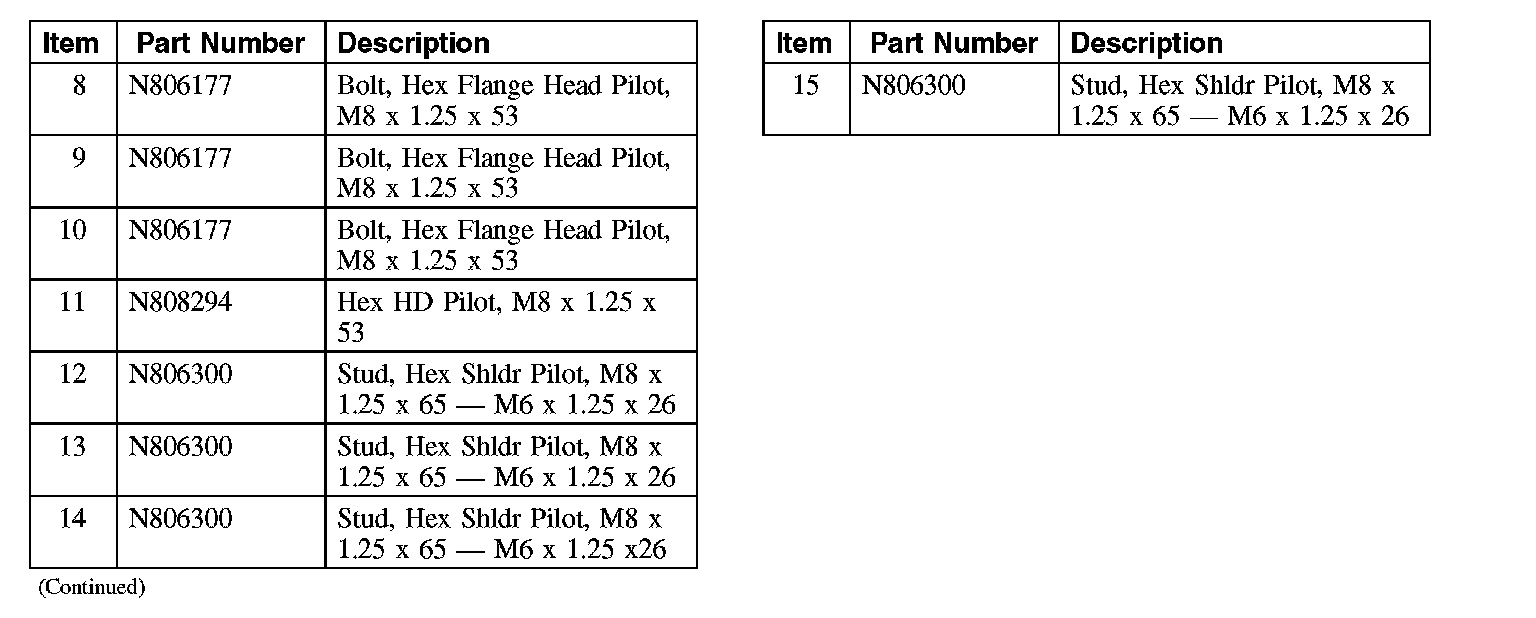

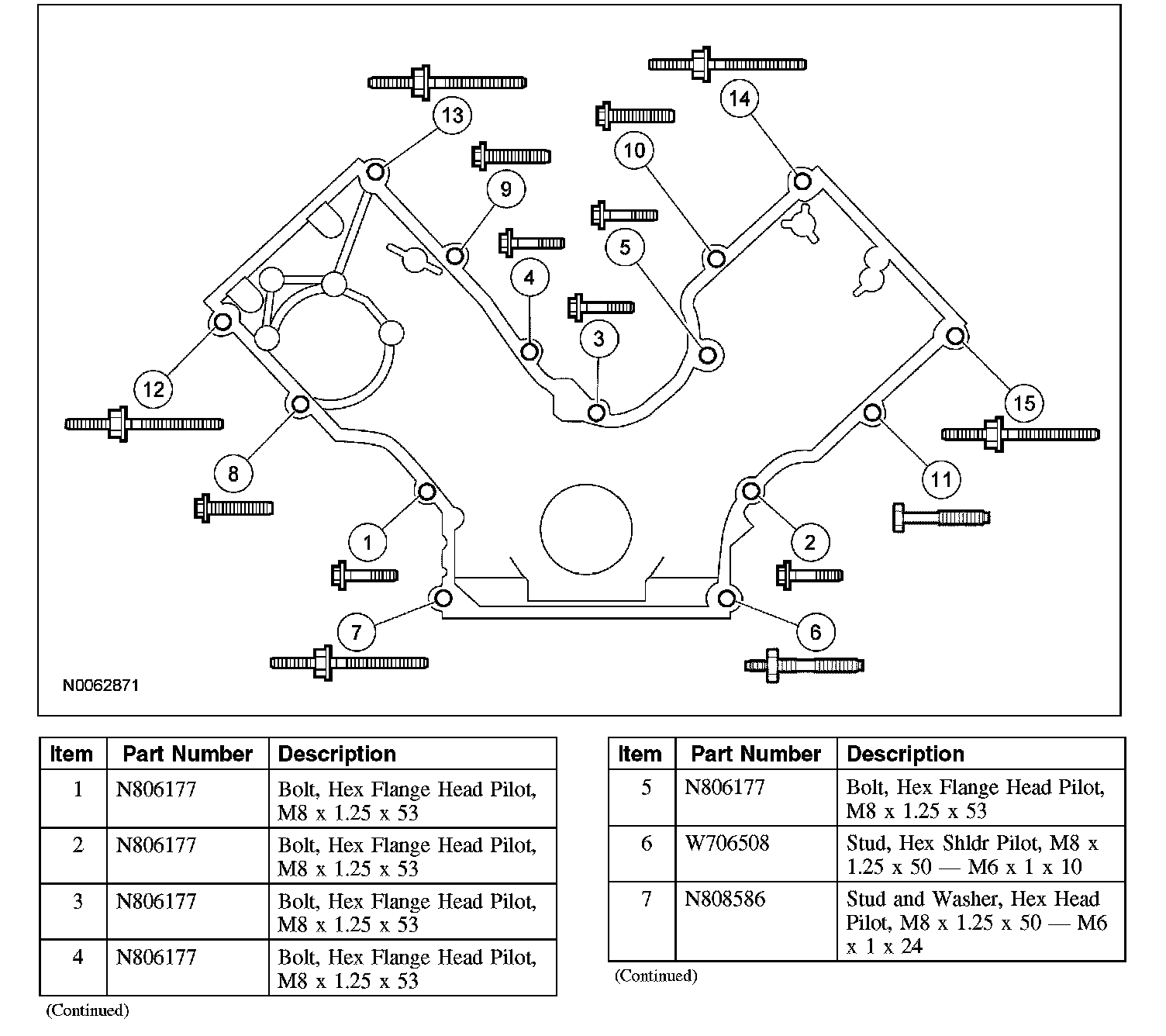

Engine Front Cover Front Fasteners

In Sequence Shown 25 Nm (18 ft. lbs)

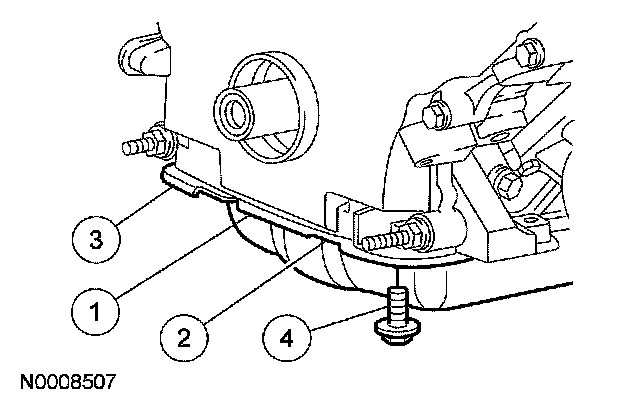

Engine Front Cover Lower Fasteners





First pass 20 Nm (15 ft. lbs).
Final pass Tighten 60°

Crankshaft Pulley Bolt

This bolt is torque-to-yield and cannot be reused.

First pass 120 Nm (89 ft. lbs).
Second pass Loosen one full turn
Third pass 50 Nm (37 ft. lbs)
Final pass Tighten 90°

LH or RH Timing Chain Tensioner
Tighten to 25 Nm (18 ft. lbs)
