Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

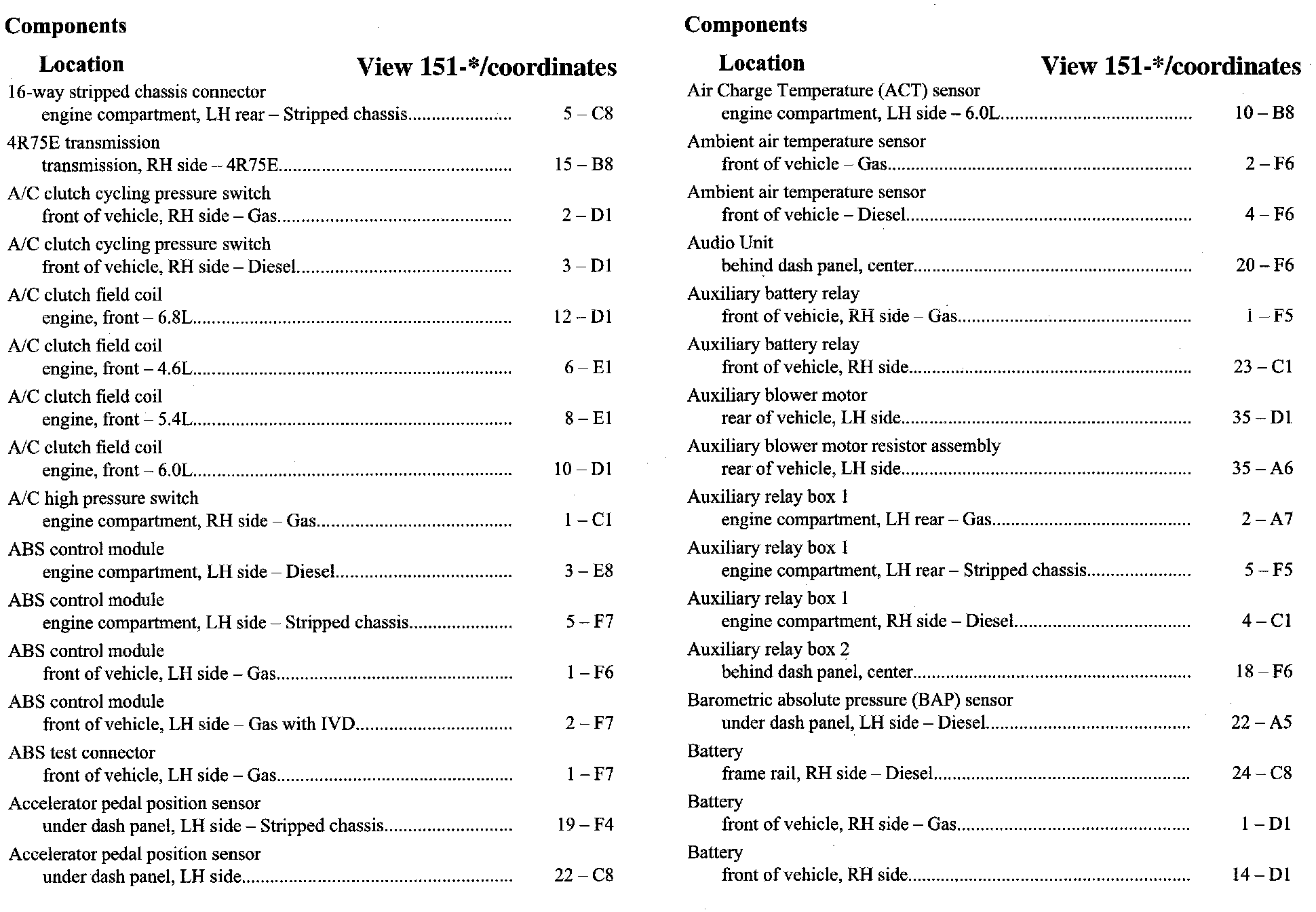

16-Ba:

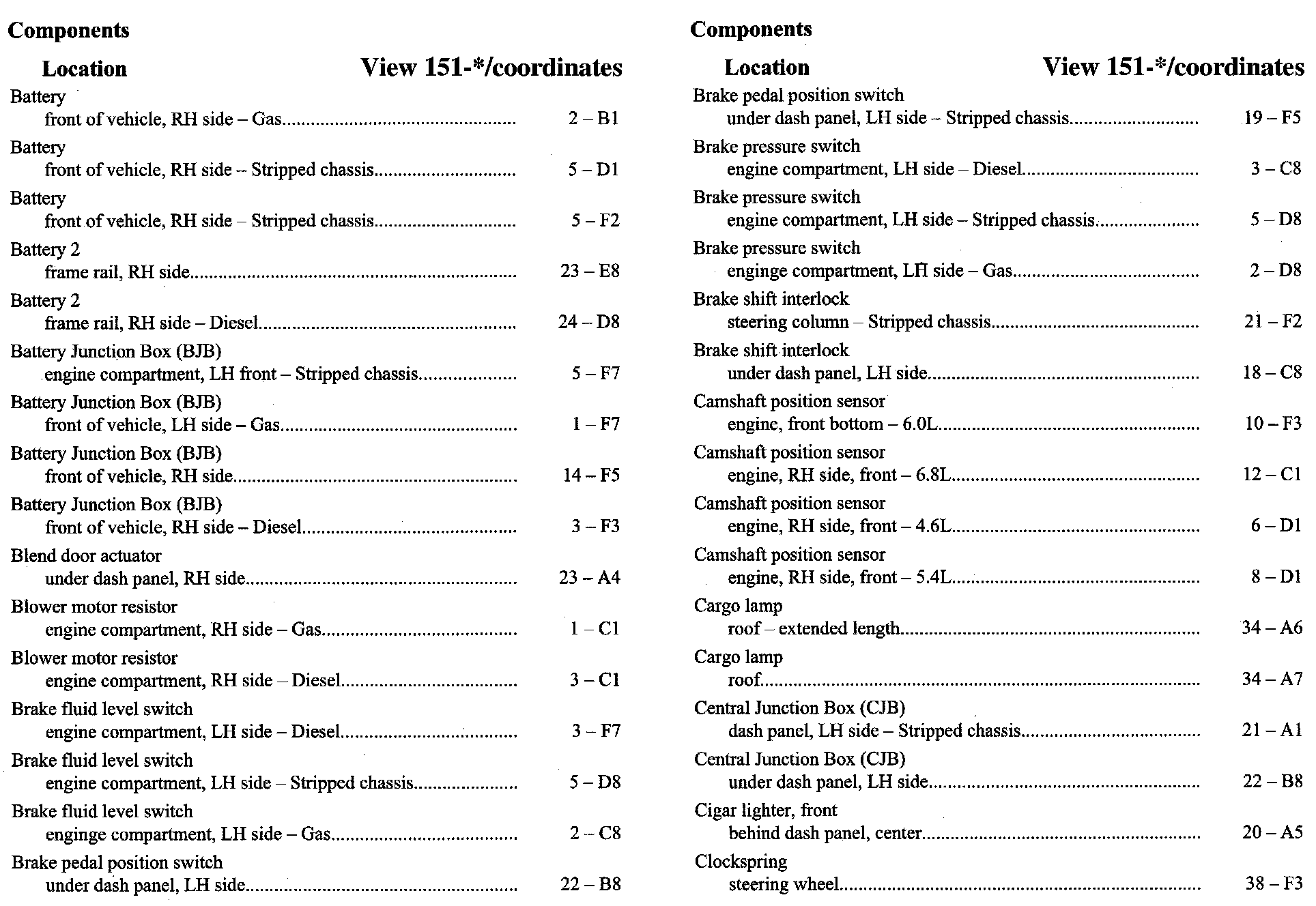

Ba-Cl:

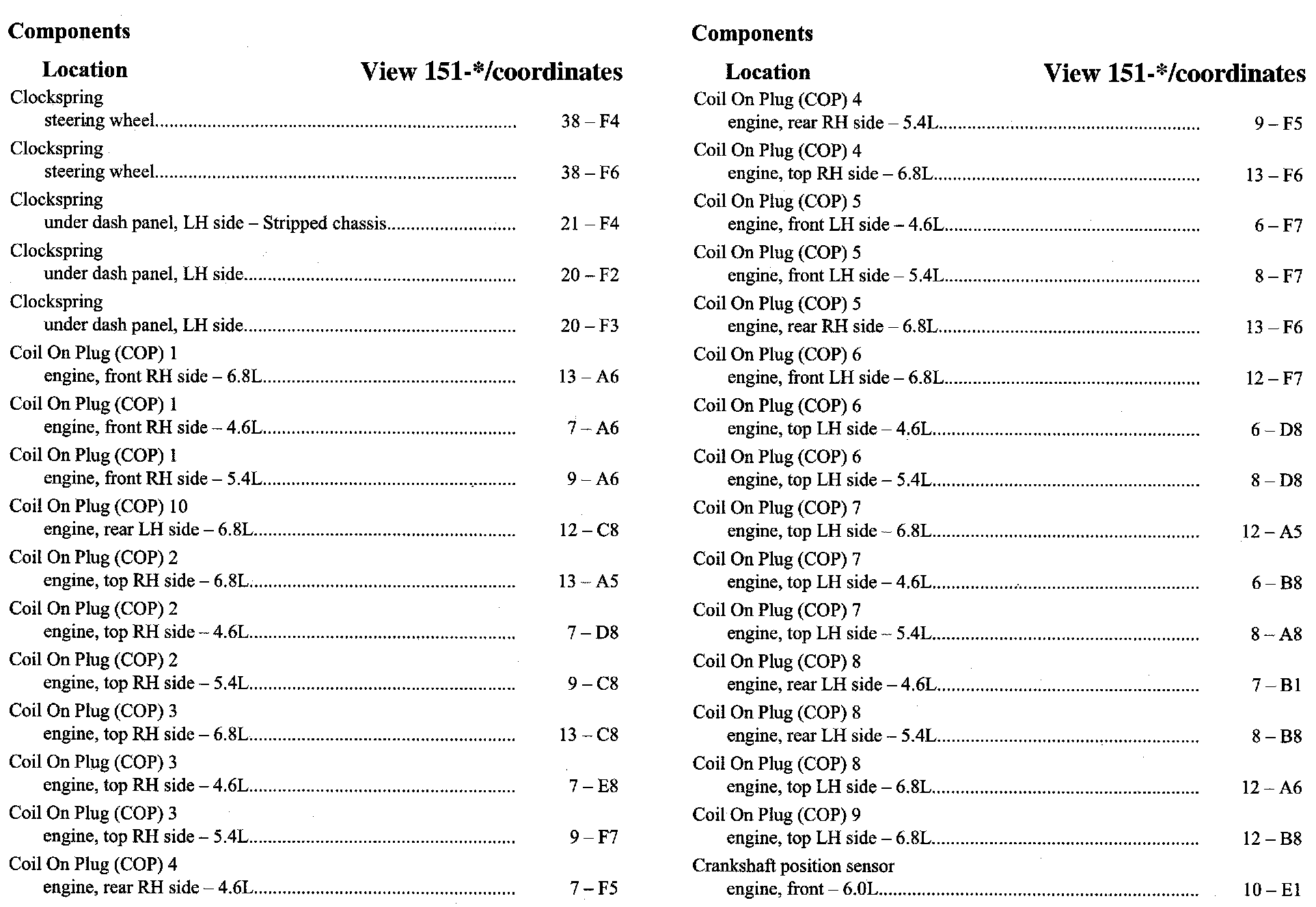

Cl-Cr:

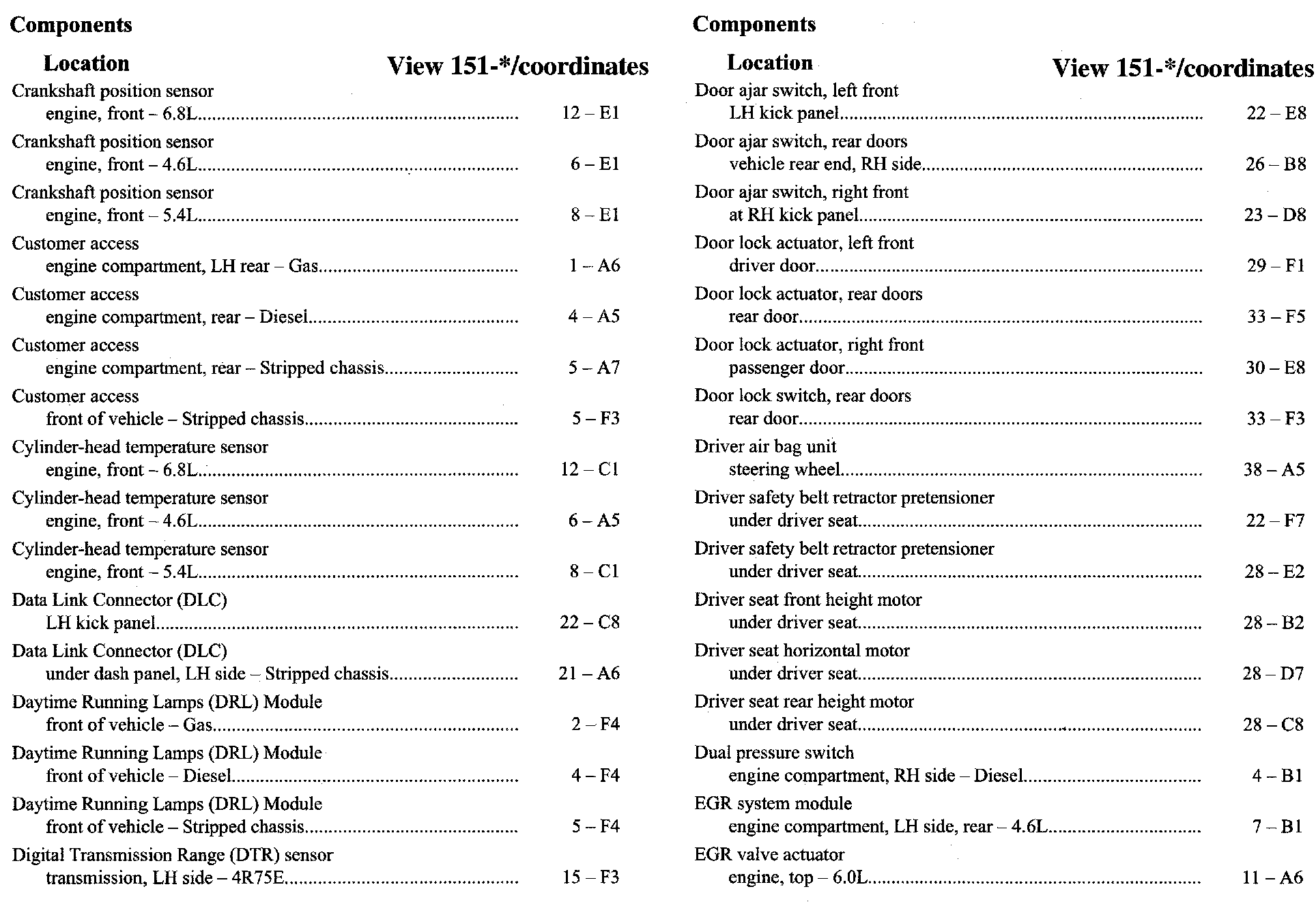

Cr-EGR:

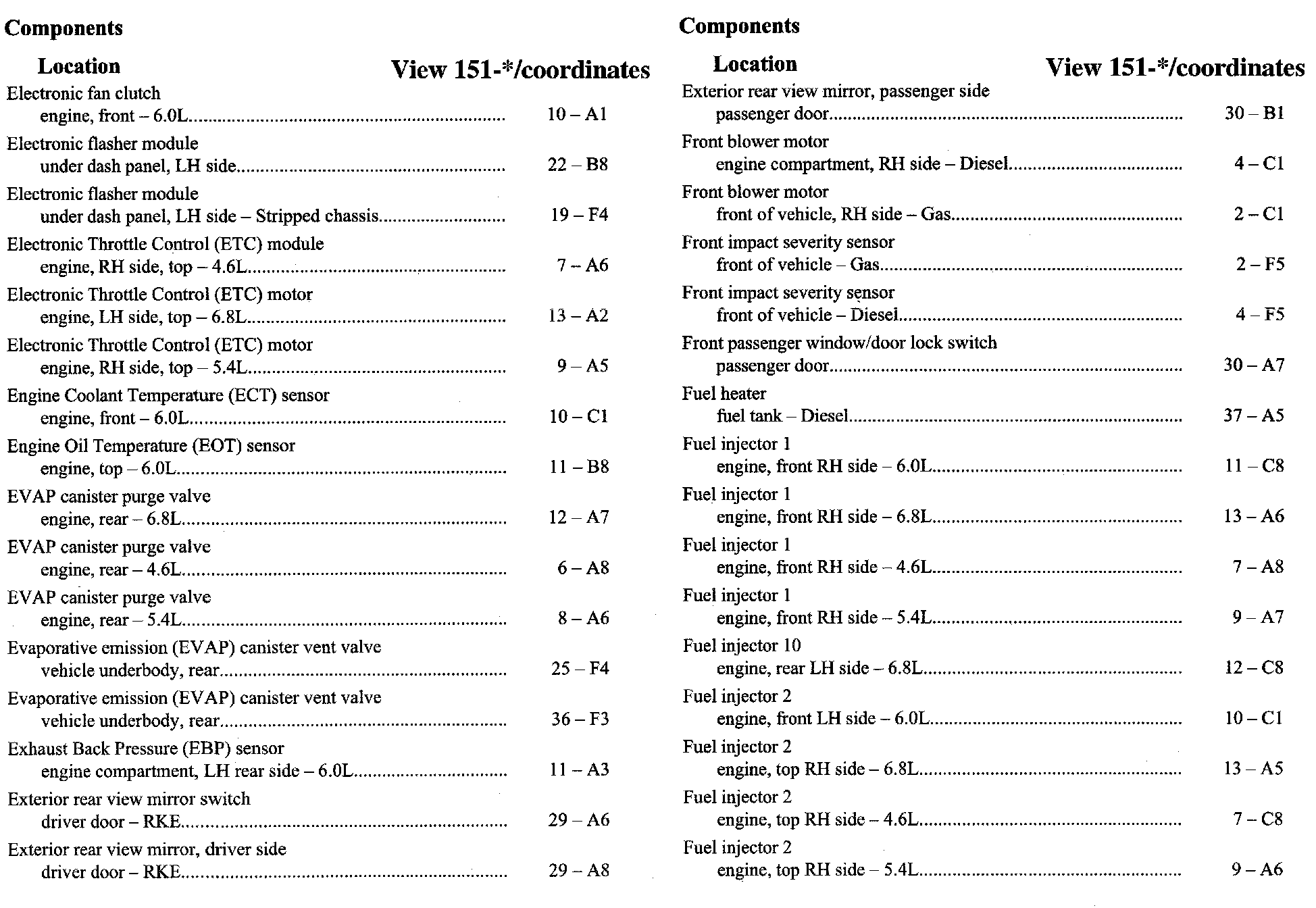

El-Fu:

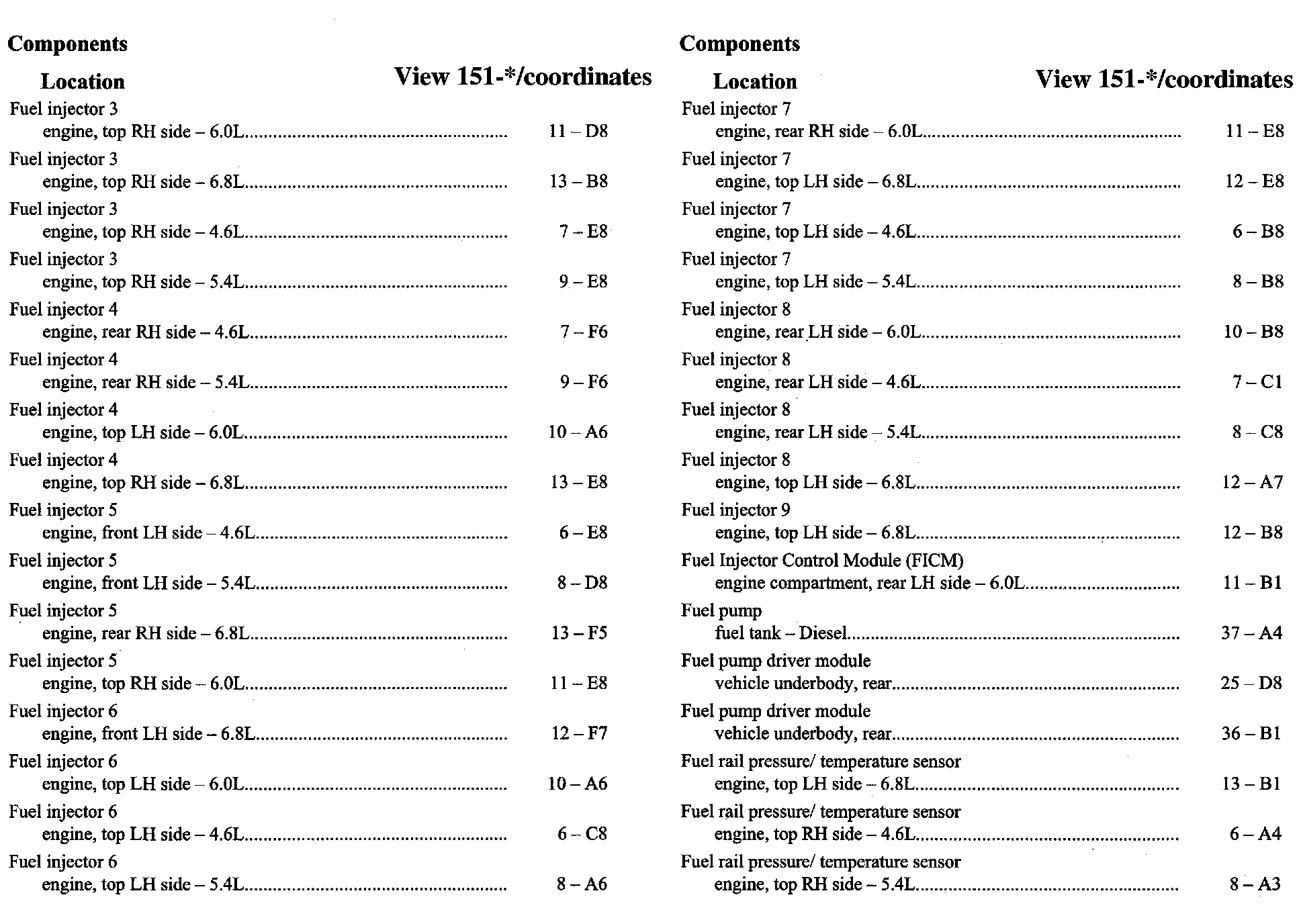

Fu-Fu:

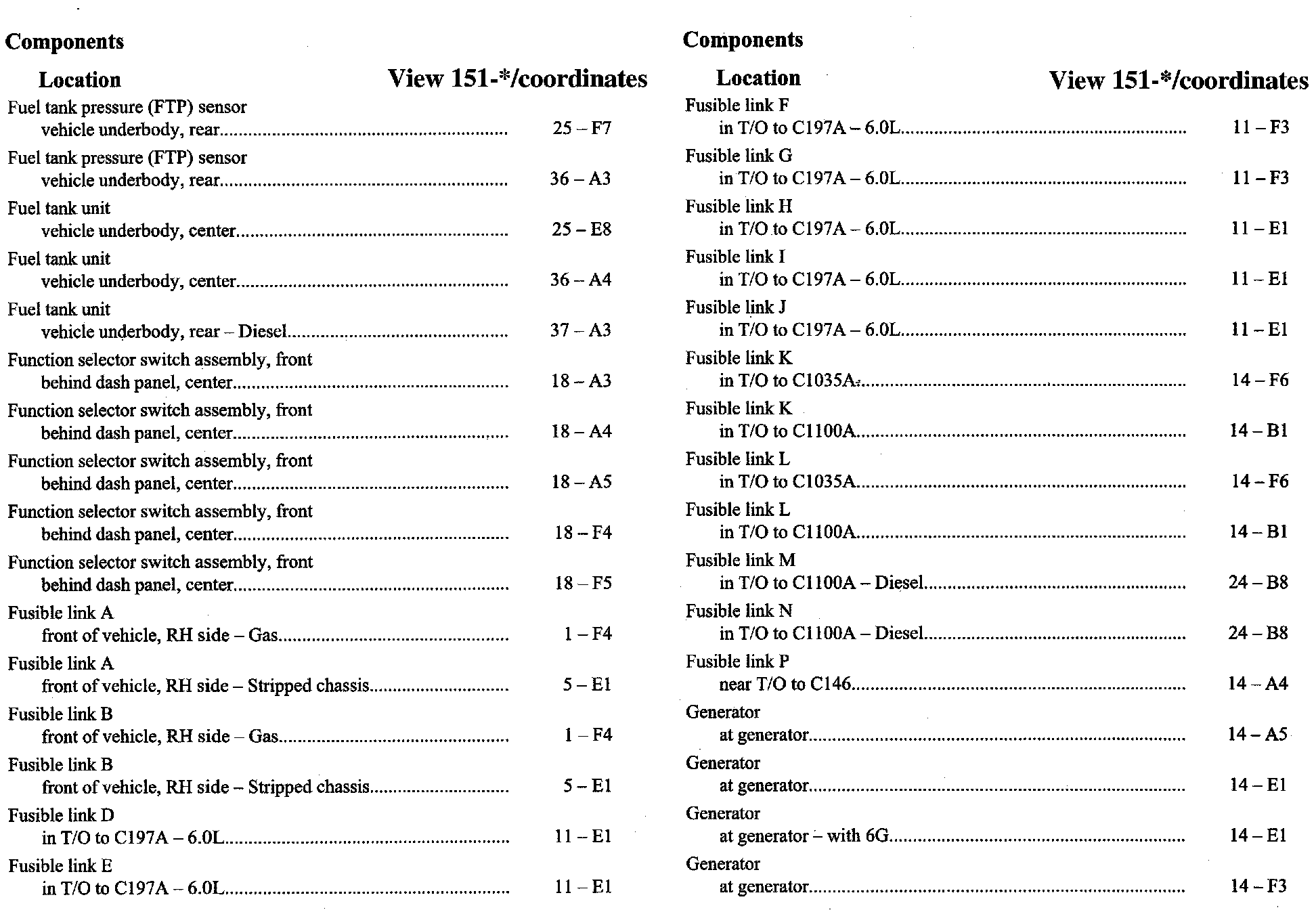

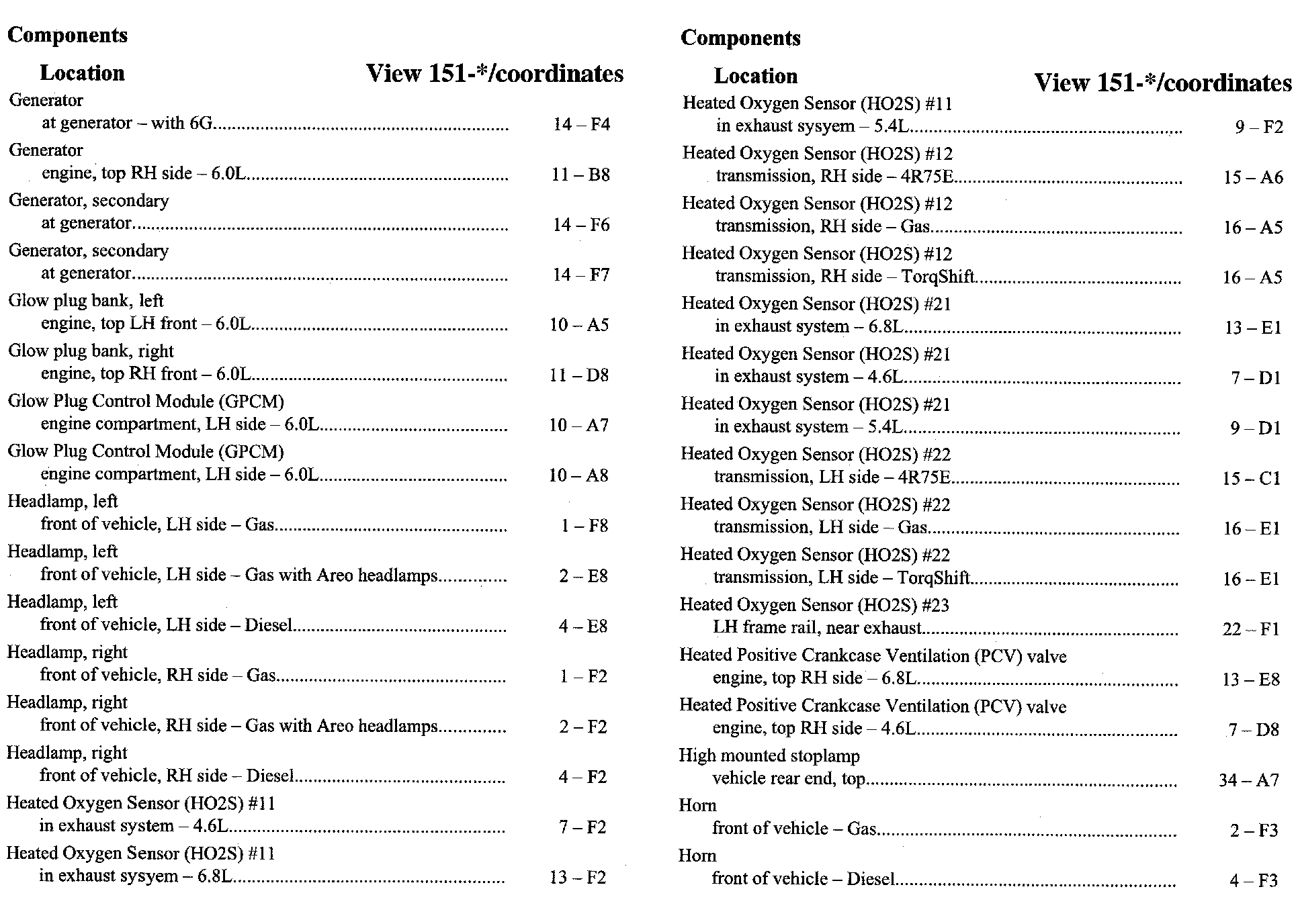

Fu-Ge:
Ge-Ho:

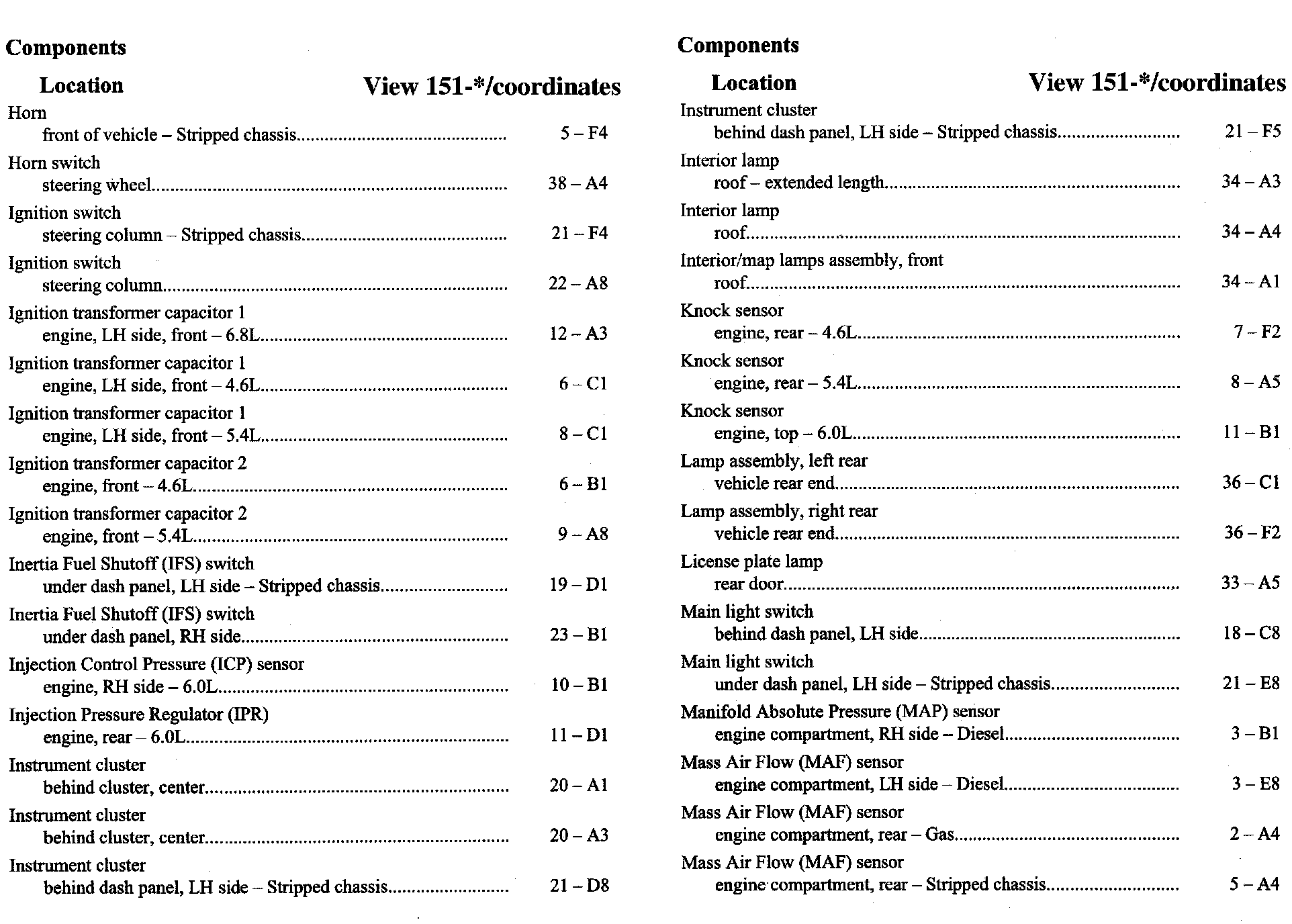

Ho-Ma:
Ma-Pa:

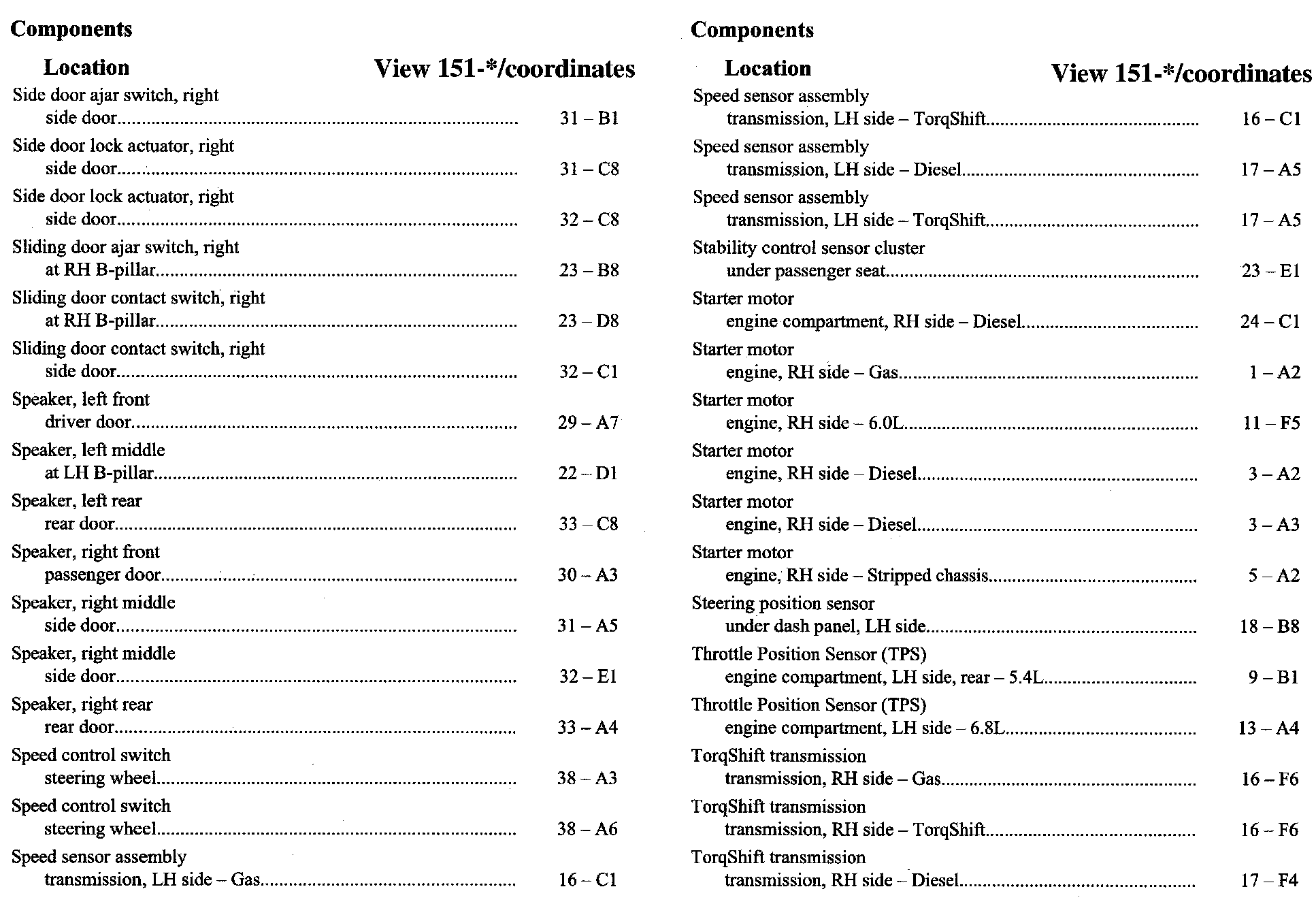

Pa-Se:

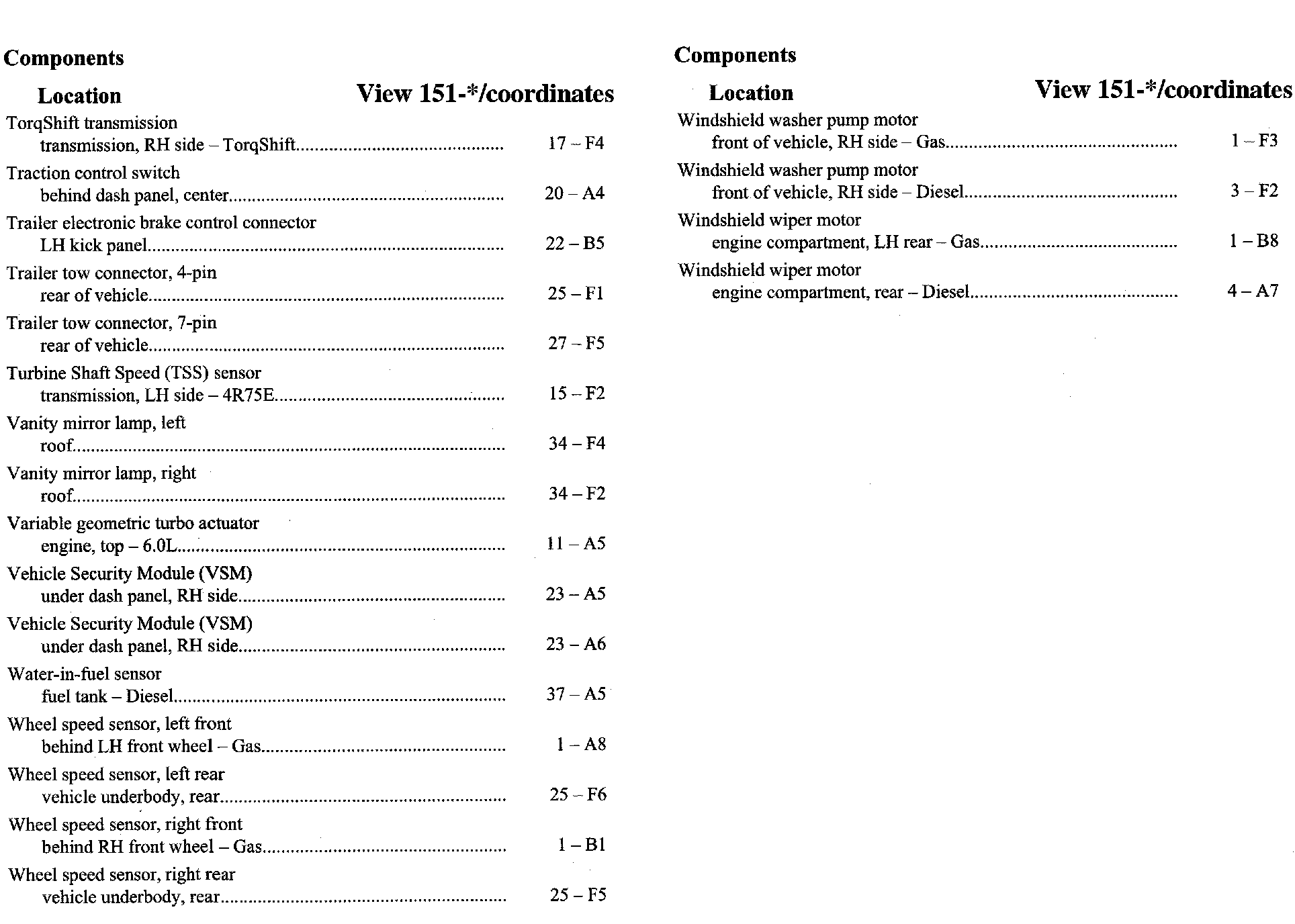

Si-To:
To-Wi:
