Idler Pulley

Front End Accessory Drive (FEAD) - Exploded View, 4.6L, 5.4L and 6.8L

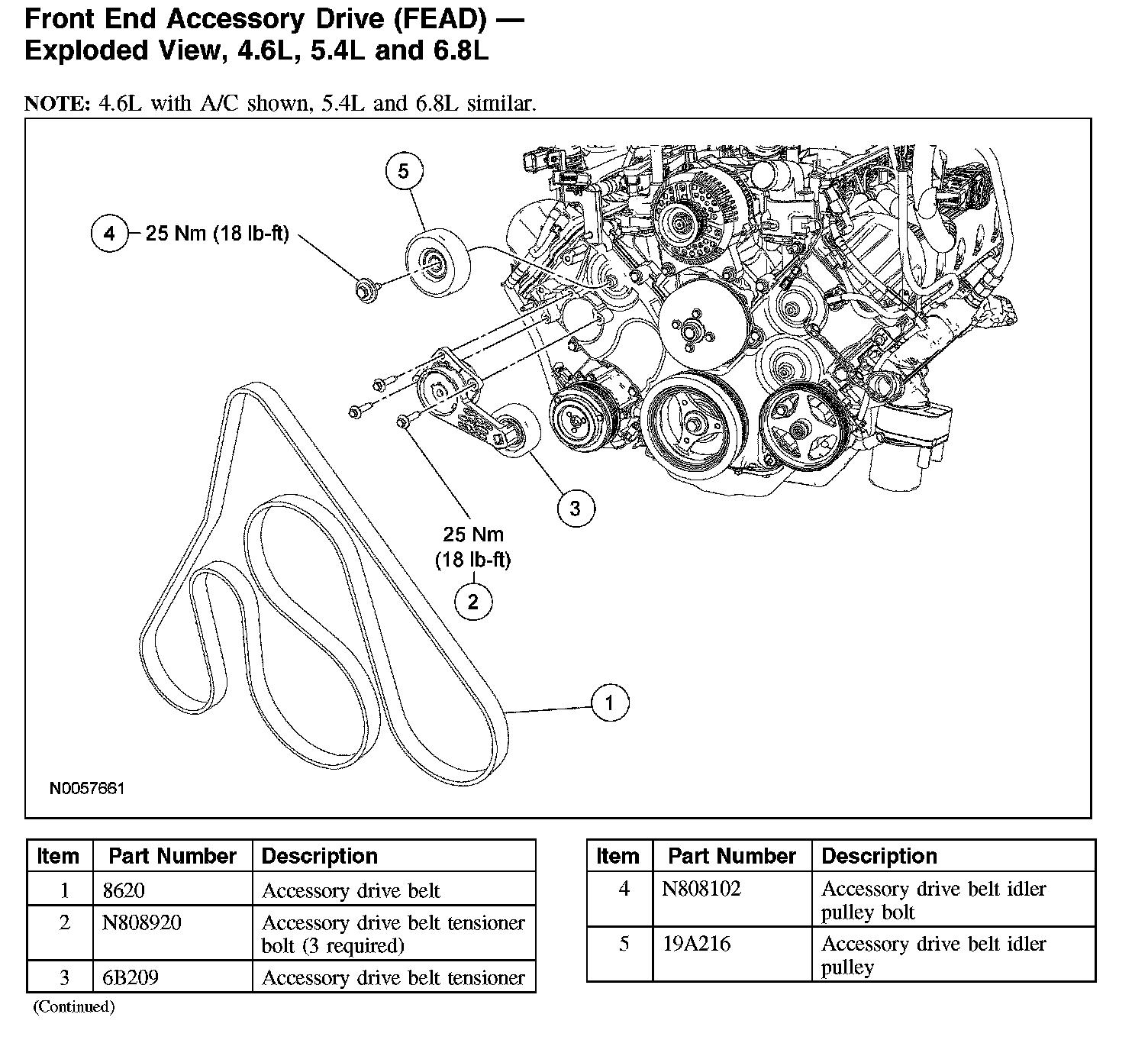

Front End Accessory Drive (FEAD) - Exploded View, 4.6L, 5.4L and 6.8L (With A/C):

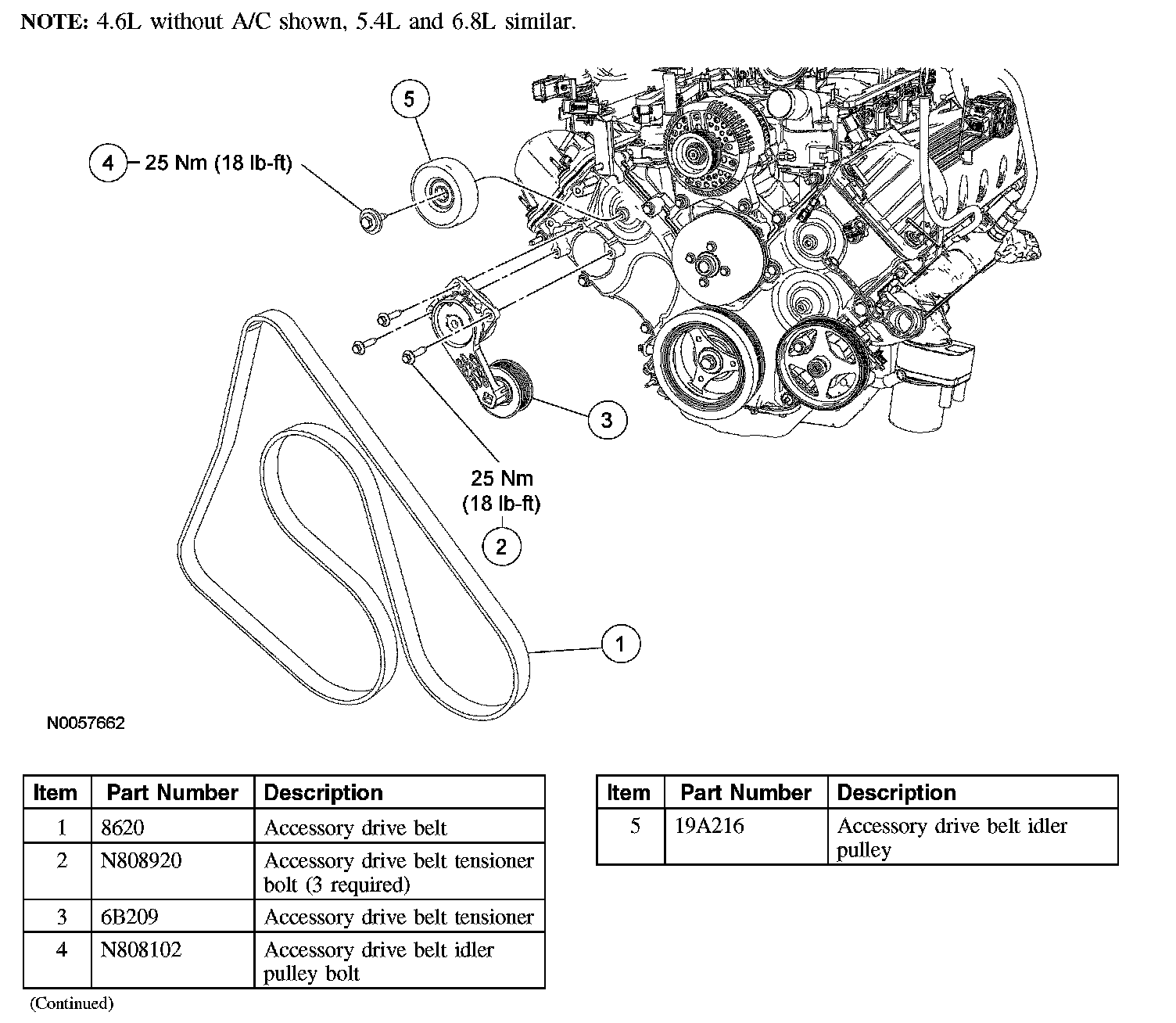

Front End Accessory Drive (FEAD) - Exploded View, 4.6L, 5.4L and 6.8L (Without A/C):
