Connector Location Index

PLEASE NOTE: If a link on the Connector Location Index to a View is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.

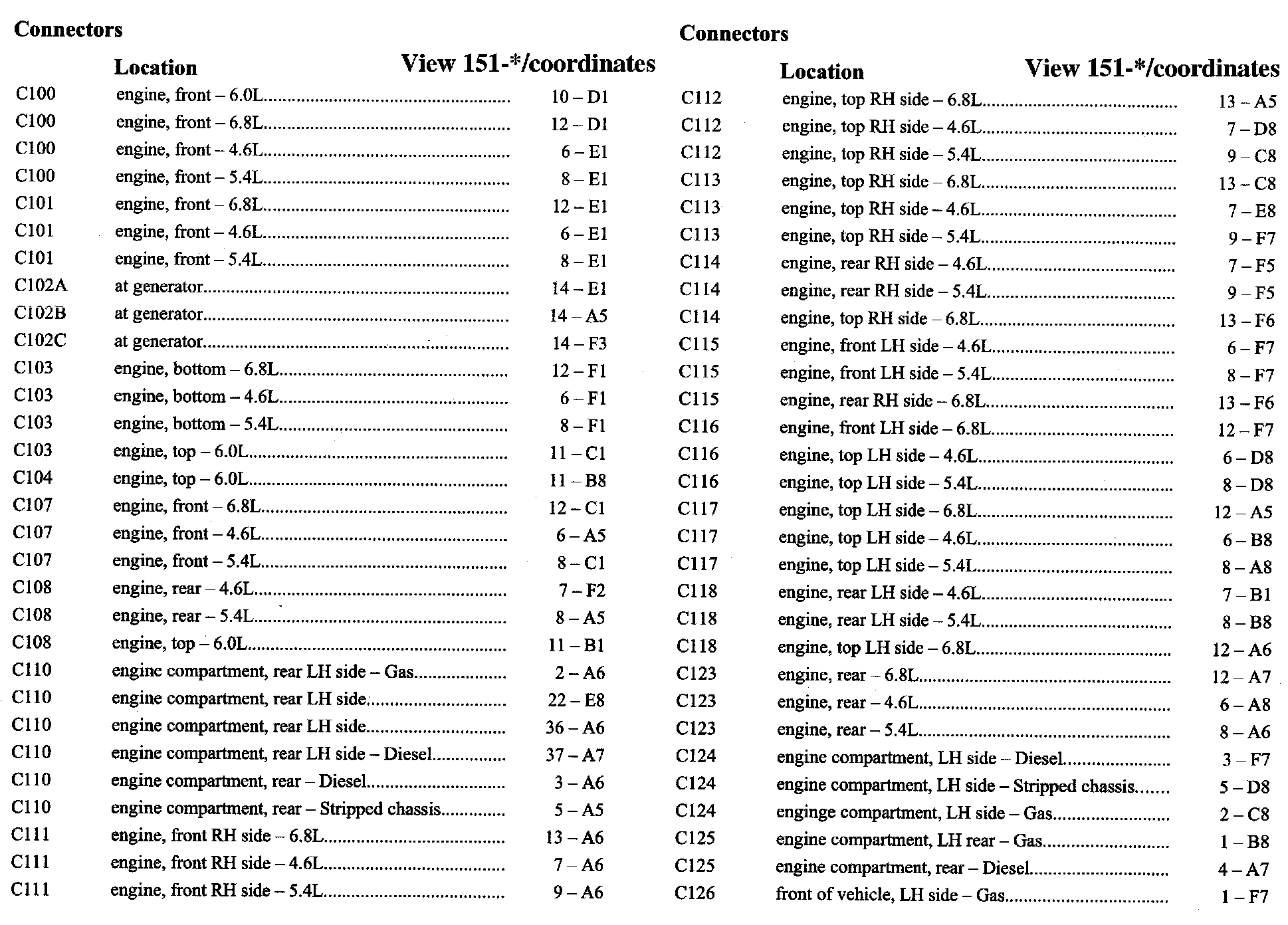

C100-C126:

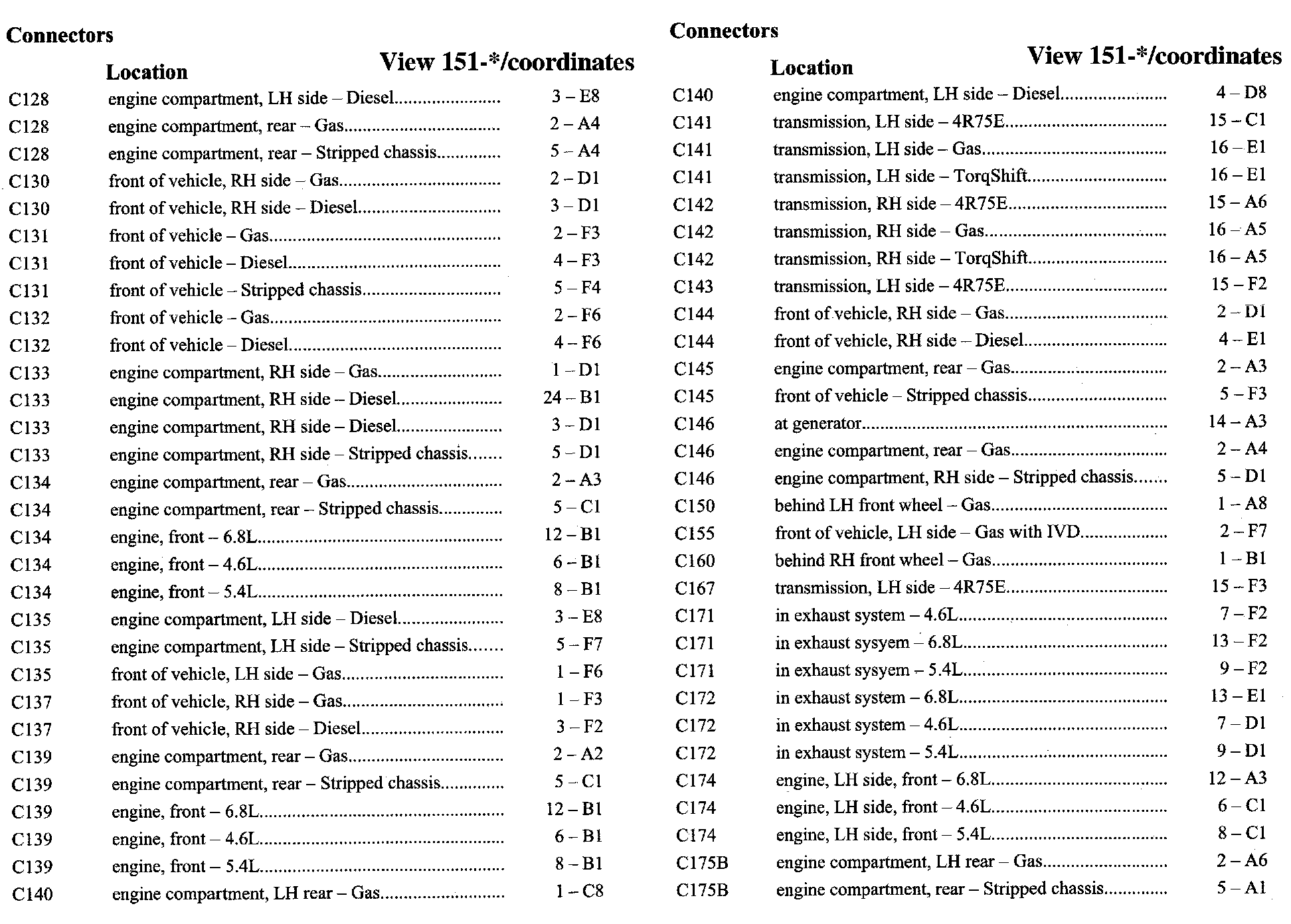

C128-C175B:

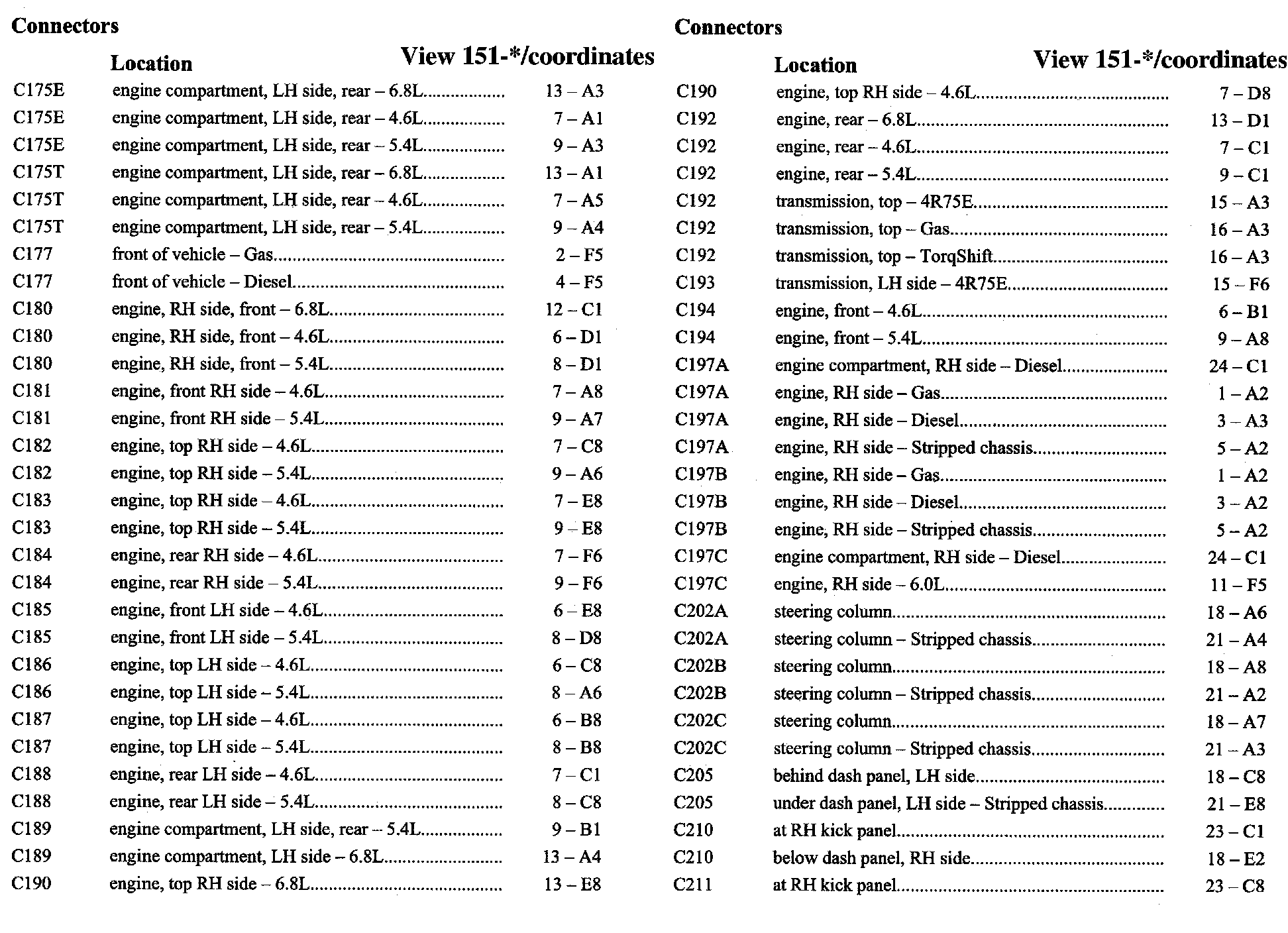

C175E-C211:

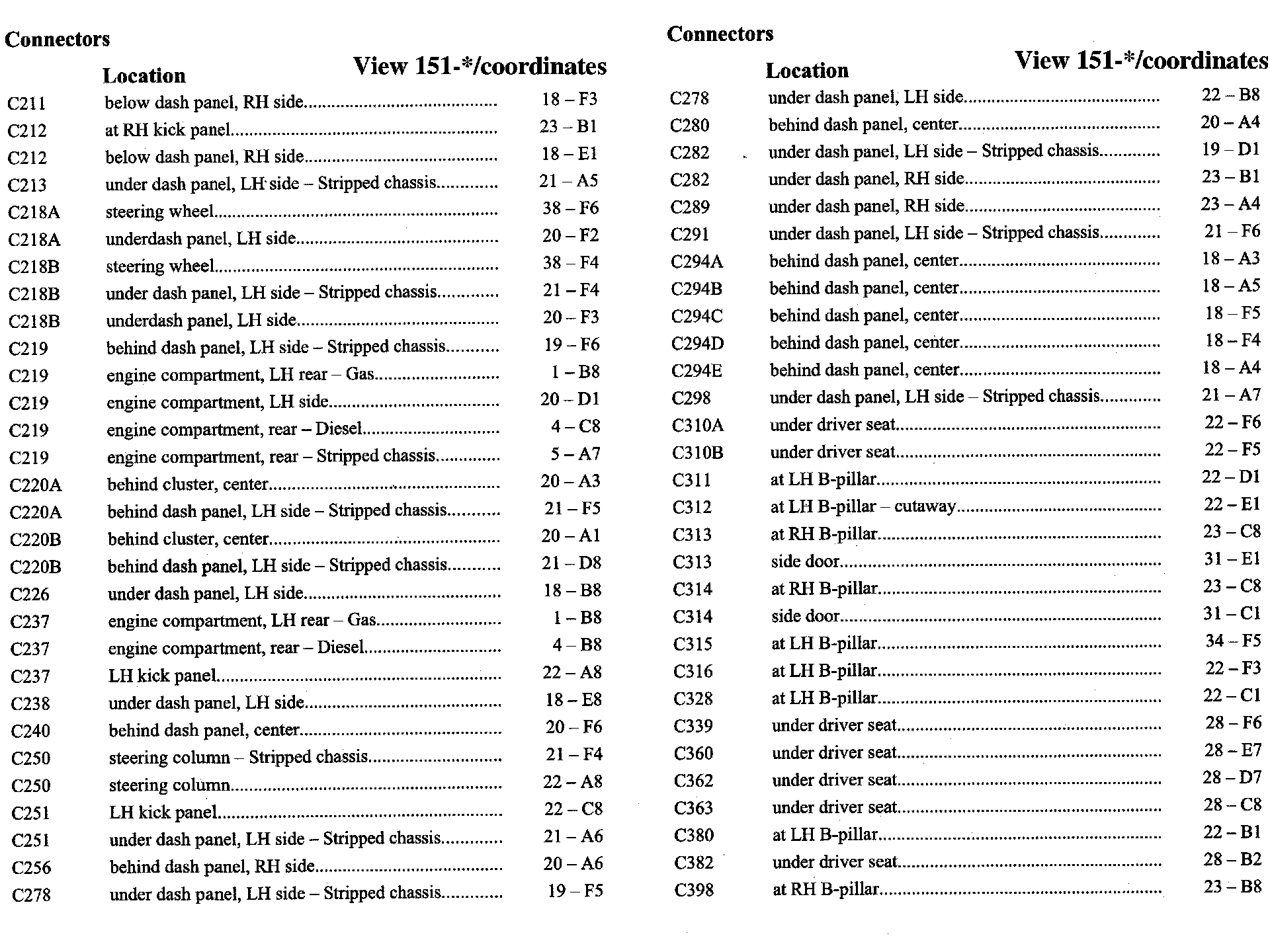

C211-C398:

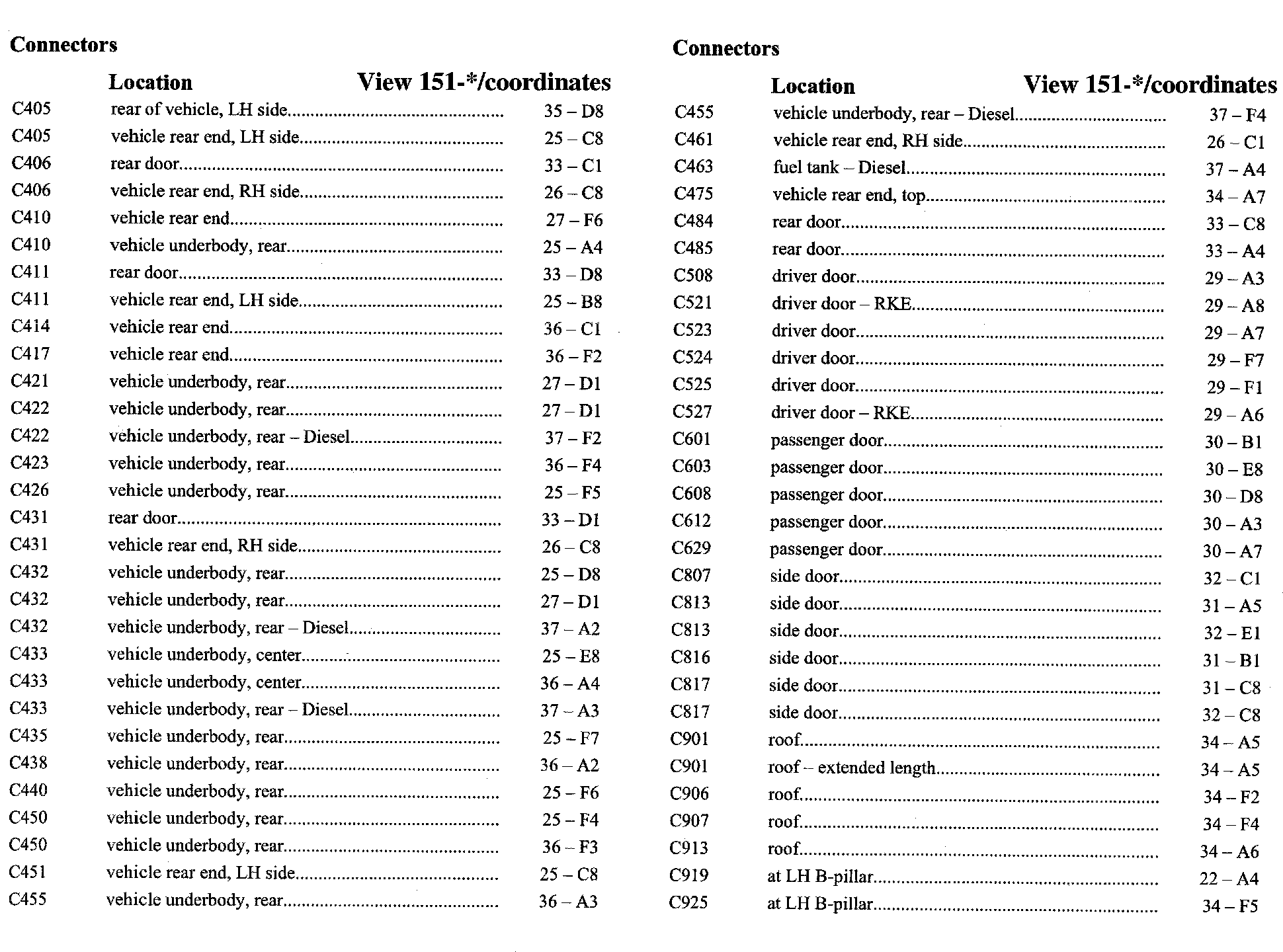

C405-C925:

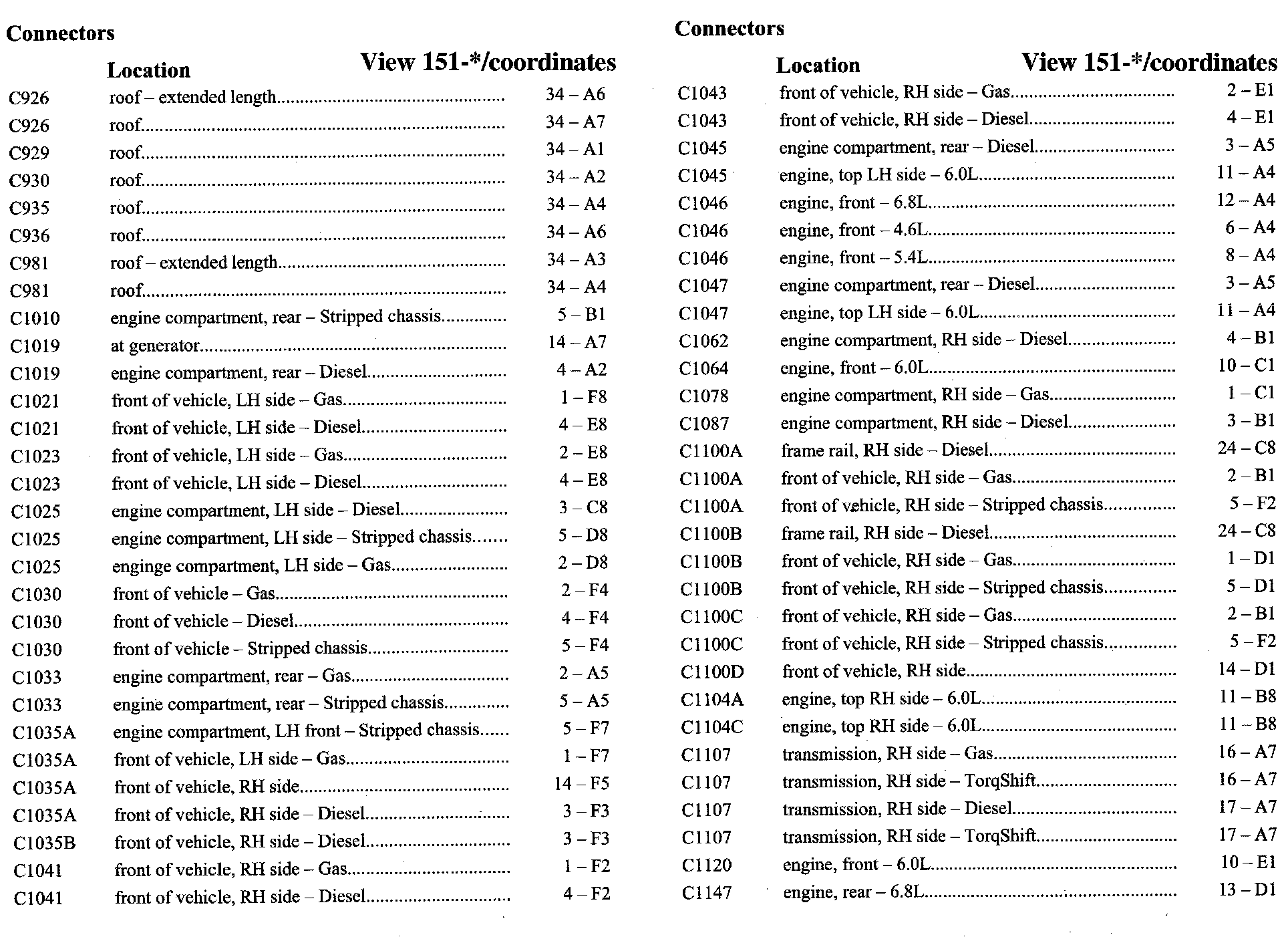

C926-C1147:

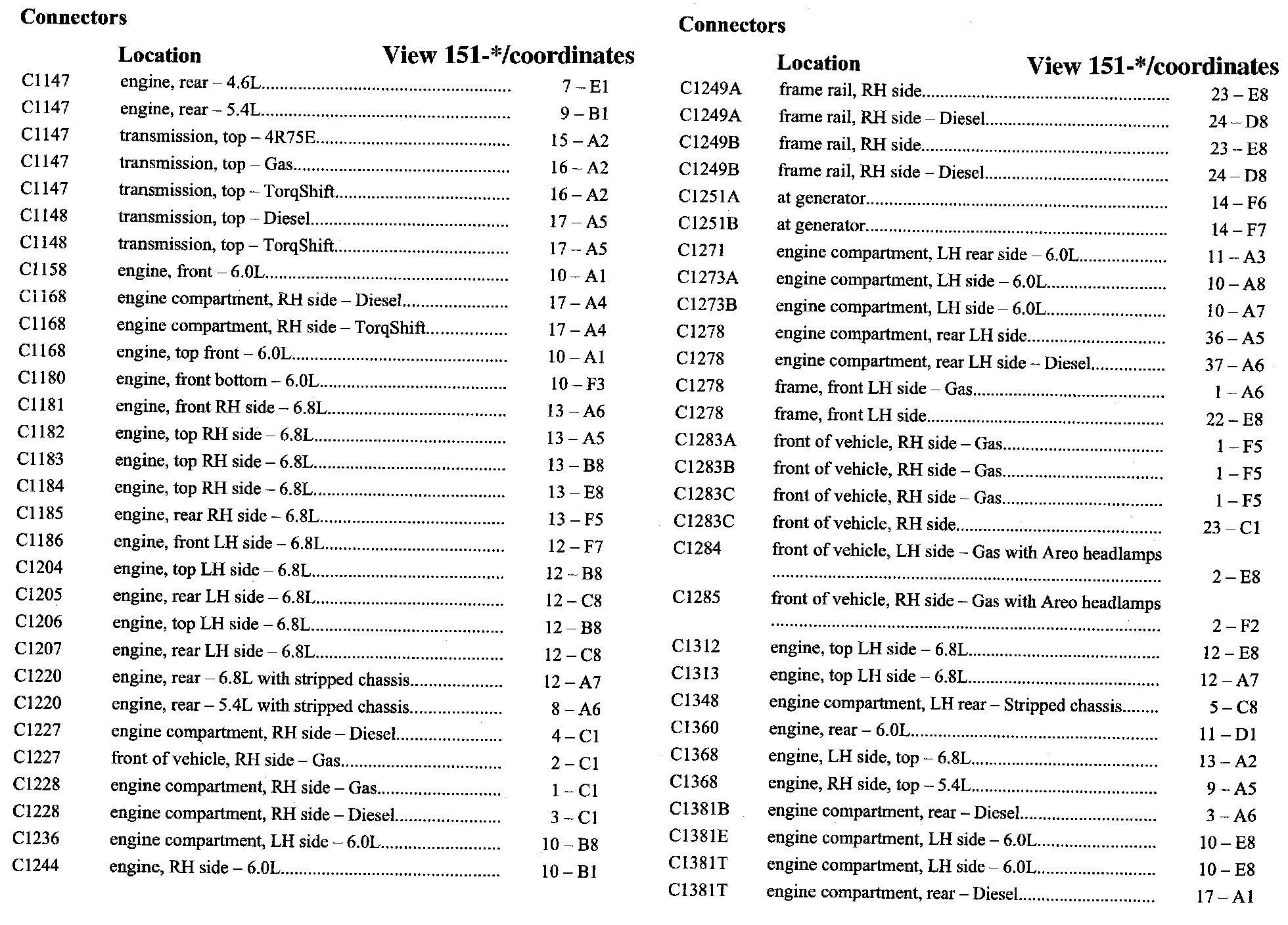

C1147-C1381T:

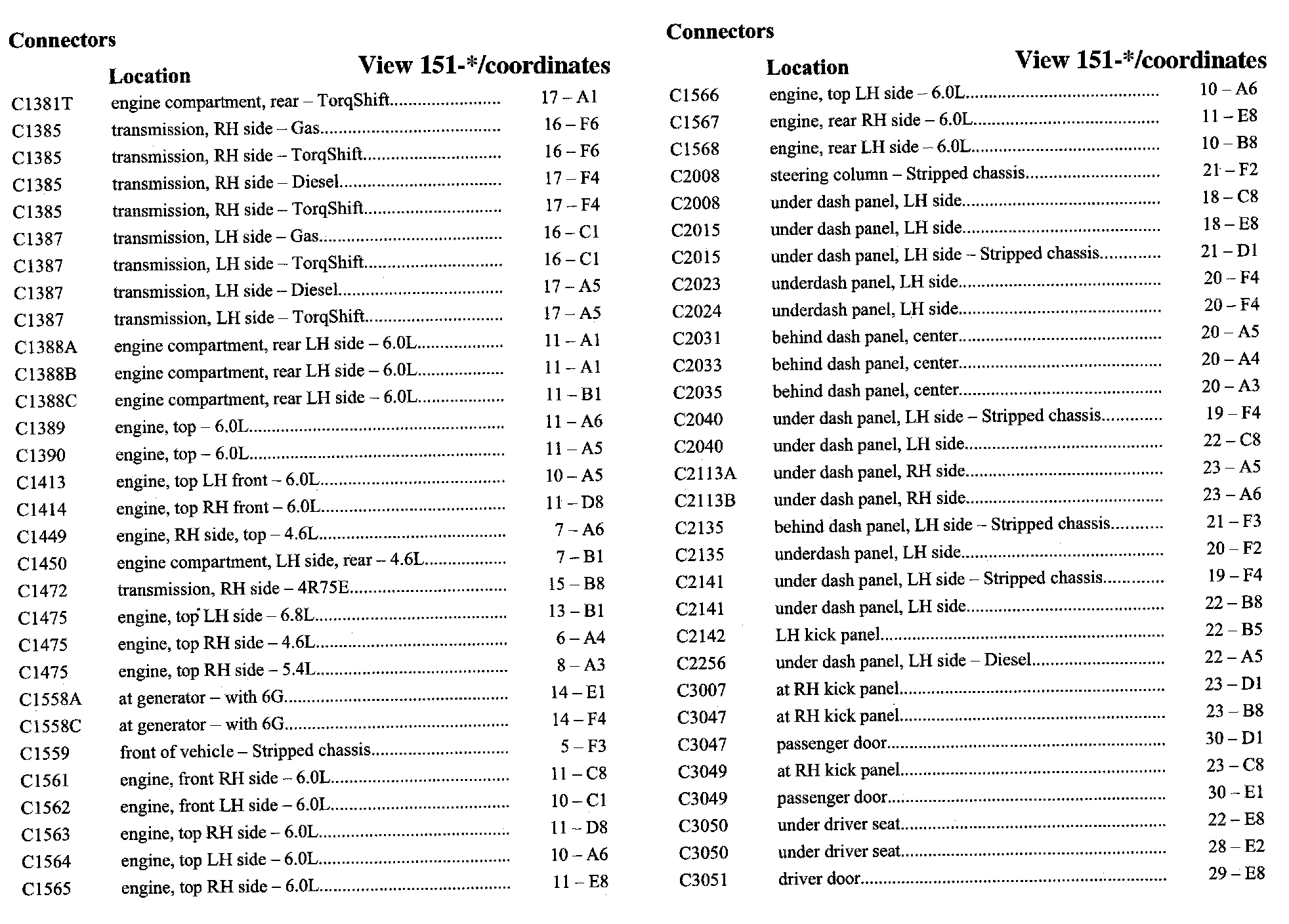

C1381T-C3051:

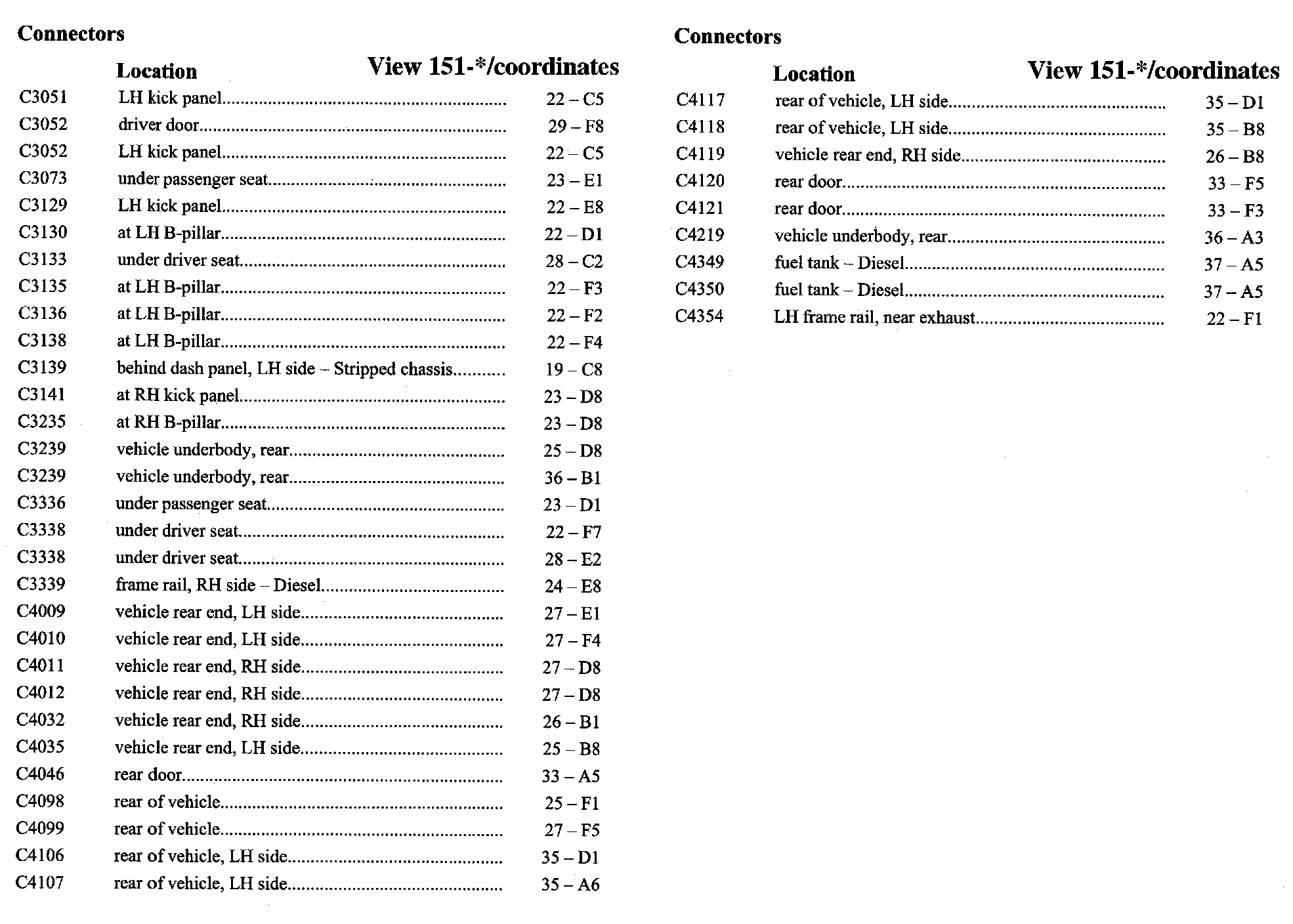

C3051-C4354:
