Data Link Connector: Locations

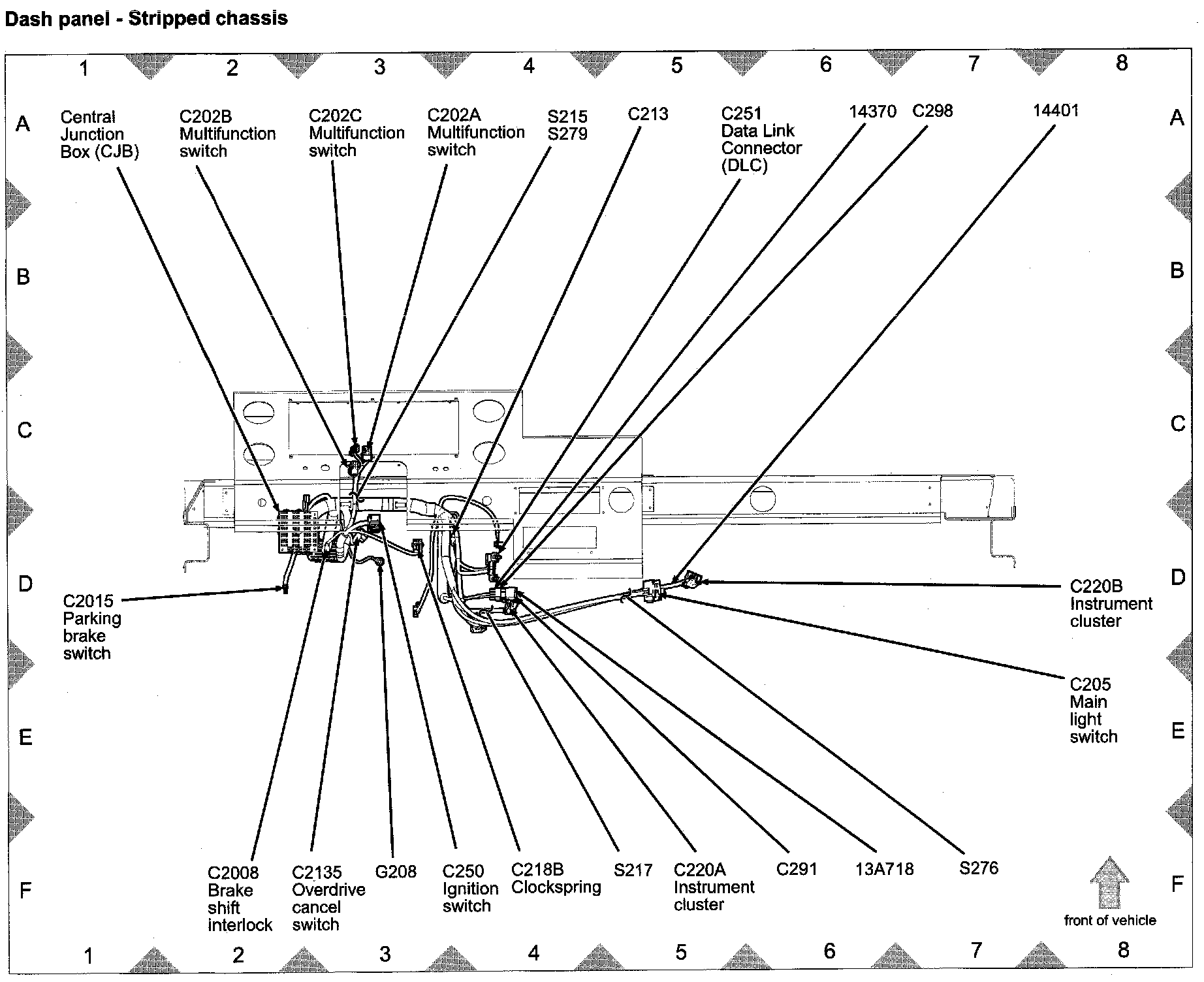

View 151-21 (Dash Panel - Stripped Chassis):

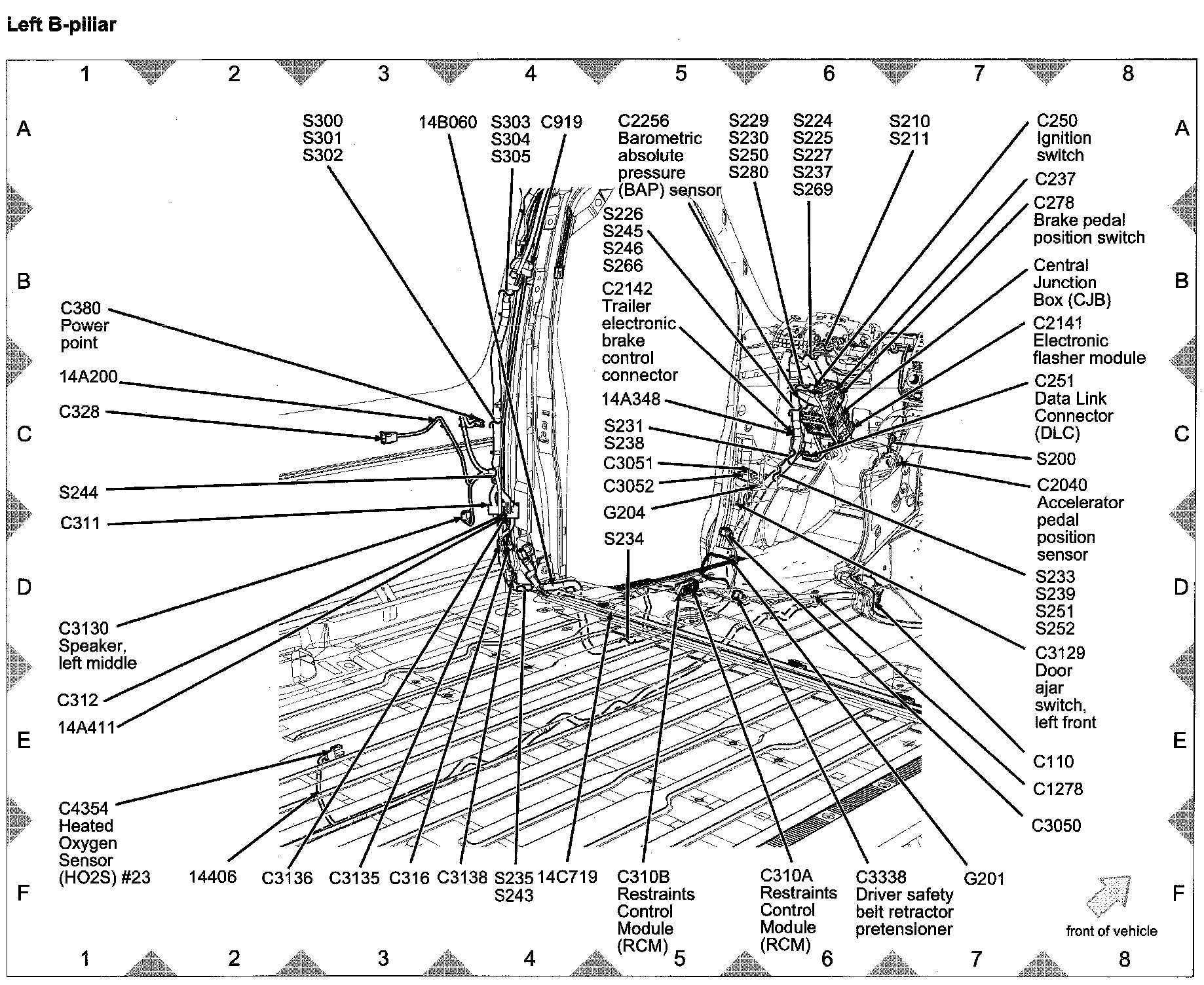

View 151-22 (Left B-Pillar):
